OPERATING INSTRUCTIONS
GB

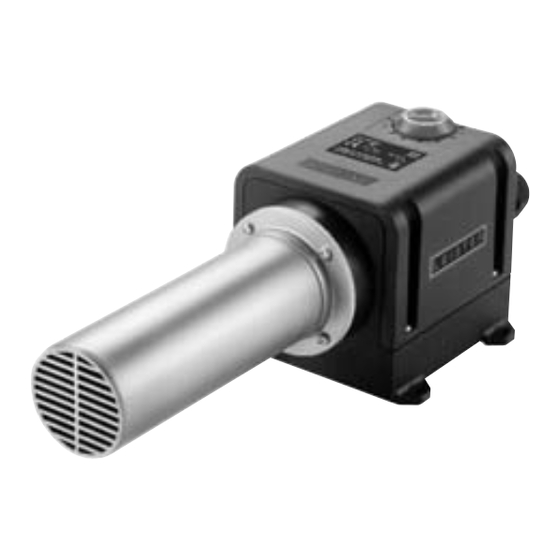

Leister LHS SYSTEM
Air Heater
Please read operating instructions carefully before use and
keep for further reference.
APPLICATION
The Leister Air Heater type LHS SYSTEM are suitable for building into machines,
installations or appliances and are designed for continuous operation.
• Drying and heating processes of various types.
• Shrinking and welding packaging films and moulded parts.
• Heating conveyor ovens or heat tunnels.
• Activating and loosening solvent free adhesives and melt adhesives.
• Sterilizing packaging materials such as bottles, corks and containers.
• Separating and fusing synthethic fibres and fabrics.
• Soldering processes on thin metal parts.
• Speeding up mixing processes and dissolving foams which can arise during
mixing and filling operations.
• Welding thermoplastic materials.
• Removing plastic mould flash.
• Putting a shine on plastic surfaces.
LHS SYSTEM 20S
LHS SYSTEM 20L
Leister Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland
Tel. + 41 41 662 74 74 Fax + 41 41 662 74 16
LHS SYSTEM 40S
LHS SYSTEM 40L
www.leister.com
LHS SYSTEM 60S
LHS SYSTEM 60L
sales@leister.com
®
Advertisement
Table of Contents
Related Manuals for Leister LHS
Summary of Contents for Leister LHS
-
Page 1: Operating Instructions
Please read operating instructions carefully before use and keep for further reference. APPLICATION The Leister Air Heater type LHS SYSTEM are suitable for building into machines, installations or appliances and are designed for continuous operation. • Drying and heating processes of various types. - Page 2 The tool must be operated with supervision. Warmth can reach combustible materials, which are out of sight. Protect the tool from dampness and wet. Technical Data LHS SYSTEM Voltage 100 – 230 200 – 230 100 – 230 3×230 –...
- Page 3 • The air heater should only be supplied with air up to a max. 80°C. • Pay attention to the direction of the airflow. • Leister blowers must be used for the air supply (pay attention to the direction of rotation and the electrical connection).
- Page 4 OPERATING Leister LHS SYSTEM Function: Heat element protection If the heat element overheats, the power supply to the heat element is cut off and the alarm relay function contact opens. Function: Tool protection If the tool overheats (air supply too warm or a build up of heat), the power supply for the heat element is cut off and the alarm relay function contact opens.
- Page 5 CONNECTION/INSTALLATION Leister LHS SYSTEM 20 Power unit wiring diagram 20S / 20L Max 10A Fuse Installation dimensions in mm...
- Page 6 CONNECTION/INSTALLATION Leister LHS SYSTEM 40 Power unit wiring diagram Max 10A Fuse Max 10A Fuse Installation dimensions in mm...
- Page 7 CONNECTION/INSTALLATION Leister LHS SYSTEM 60 Power unit wiring diagram 60S / 60L Max 10A Fuse Installation dimensions in mm Control unit wiring diagram 20S / 20L, 40S / 40L, 60S / 60L...
- Page 8 • Only Leister accessories should be used. SERVICE AND REPAIR • Repairs should only be carried out by authorised Leister Service Centres. They guarantee a correct and reliable repair service within 24 hours using original spare parts in accordance with the circuit diagrams and spare parts lists.
