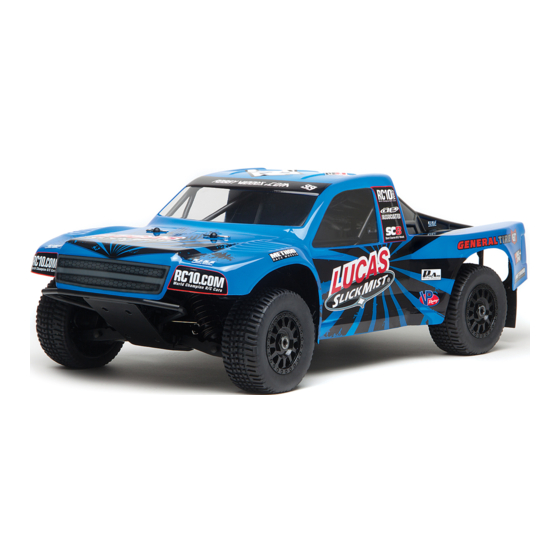

Team associated sc8.2e motorized toy car
Hide thumbs Also See for SC8.2e:

Advertisement

Quick Links

Download this manual See also: Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC8.2e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics SC8.2e

Summary of Contents for Associated Electrics SC8.2e

  • Page 2 Thank you for purchasing this Team Associated product. This manual contains instructions and tips for building and maintaining your new SC8.2e RTR. Please take a moment to read through it an familiarize yourself with these steps as they will help you to understand each component’s function and show you some tips for getting the most out of your SC8.2e RTR.
  • Page 3 Each part in the foldout This symbols indicates a has a number assigned to it for ordering special note or instruction replacement parts. in the manual. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 4 :: Front/Rear Differential Assembly 89115 89120 Diff Diff housing washer 89121 89121 Diff Diff O-Ring 89496 O-Ring Diff 25236 outdrive 8x16mm 16mm bearing :: Front/Rear Differential Assembly (cont.) 89120 89120 Sun gear Diff outdrive Align pin with groove in sun gear :: Front/Rear Differential Assembly (cont.) 89120 Spider...
  • Page 5 :: Front/Rear Differential Assembly (cont.) 89121 89120 Diff Diff 89121 O-Ring washer Diff 89496 O-Ring Diff outdrive 16mm 25236 8x16mm bearing 89113 Diff ring gear :: Front/Rear Differential Assembly (cont.) 89120 Sun gear 89120 Diff outdrive Align pin with groove in sun gear :: Front/Rear Differential Assembly (cont.) 89208 3x14mm...
  • Page 6 :: Center Differential Assembly 89120 89115 Diff Diff washer housing 89121 Diff 89121 O-Ring Diff O-Ring 25236 8x16mm bearing 89496 Diff outdrive 16mm :: Center Differential Assembly (cont.) 89120 Sun gear 89120 Diff 89120 outdrive Spider gear assembly Align pin with groove in sun gear :: Center Differential Assembly (cont.) 89496...
  • Page 7 :: Center Differential Assembly (cont.) 89120 89120 Diff Sun gear washer 89120 Diff 89121 Diff outdrive O-Ring Align pin with groove in sun gear :: Center Differential Assembly (cont.) 89208 3x14mm 89116 fhcs Diff Tighten screws gasket evenly and firmly. Fill with diff fluid to top of gears.
  • Page 8 :: Servo Link Assembly 89078 89268 Straight 42mm steel eyelet turnbuckle 89078 balljoint 20.5mm :: Rear Camber Link Assembly 89076 Camber pivot balls 89269 89076 38mm steel Camber turnbuckle rod end 89076 Camber ball joints 7.7mm Build right and left sides! :: Shock Assembly 89066...
  • Page 9 :: Shock Assembly - (cont.) 89215 Locknut (piston) 89353 Shock piston set (1.3, blank) 89260 89278 Shock shaft, 2.5mm 29mm, (front) piston 89352 washer O-Ring 89261 89358 Shock shaft, 89352 Upper 38mm (rear) Bottom shock tool :: Shock Assembly - (cont.) Short boots for Fill to top with front shocks.
  • Page 10 :: Shock Assembly - (cont.) Front shock: 14mm 89396 Rear shock: 5mm Shock pre-load 89396 clips 89294 Shock Front spring, pre-load bronze (4.7lbs) clips (short spring) 89349 Rear spring, 10mm Build two bronze (4.0lbs) 89354 (long spring) front and 16mm two rear shock spring cup...
  • Page 11 :: Steering Assembly (cont.) 89016 31404 Servo 6x10mm saver 89117 bearing bolt Diff shim 89015 89016 Servo Servo saver gap setting: saver spring 89015 89016 Servo Servo saver saver bellcrank retainer :: Steering Assembly (cont.) 25204 3x16mm 89272 fhcs Steering rack 89014 Steering...
  • Page 12 Key setscrew onto flat side of shaft. Tighten with no endplay. 89221 5x4mm setscrew 89201 2.5x3mm 89571 bhcs SC8.2e center drive line input 89224 89218 3x16mm 3x8mm shcs washer :: Front Gearbox Assembly - (cont.) 89226 3x26mm shcs...
  • Page 13 :: Front Gearbox Assembly - (cont.) 89227 89549 89579 3x28mm Front SC8.2e shcs upper arm 89269 body 38mm mounts steel (front) turnbuckle 89202 89076 3x12mm Camber bhcs 89218 rod ends 3x8mm washer 7.5mm Smooth edge towards drivers side! 89586 89473 Build right RC8.2e RTR...
  • Page 14 :: Front Suspension Assembly 89102 89105 CVA pin bone 89105 89573 Lightweight u-joint cv axle, steel Axle has additional holes coupler for crosspin to extend Build Two! the life of the Axle. :: Front Suspension Assembly - (cont.) Build right and left sides! Left Side...
  • Page 15 :: Front Suspension Assembly - (cont.) 89029 Note: direction Steering blue block 89206 16 deg bushing 4x10mm (short) bhcs 89032 16 deg. caster 89029 angle bushing Steering block (red) bushing (long) 89207 89032 4x12mm Build right 16 deg. caster bhcs Note: Do not tighten until and left...
  • Page 16 :: Front Suspension Assembly - (cont.) hinge pin Build right bushing 89039 and left Hinge pin sides! bushings (two dot, down) 2 dot down 89035 mount 25215 89228 89218 3x40mm 3x8mm locknut shcs washer :: Front Suspension Assembly - (cont.) Side View 89031...
  • Page 17 :: Front Suspension Assembly - (cont.) 25215 locknut 89228 3x40mm 25192 shcs 3x20mm shcs :: Front Suspension Assembly - (cont.) 25215 locknut 89434 Front bumper 89434 Front skid plate 25190 25192 3x14mm 3x20mm shcs shcs...
  • Page 18 :: Front Suspension Assembly - (cont.) 89217 4x14mm fhcs 89214 4x12mm fhcs :: Front Suspension Assembly - (cont.) 25215 locknut 25204 3x16mm fhcs...
  • Page 19 :: Rear Gearbox Assembly - (cont.) 89227 3x28mm shcs 89473 Steel shock standoff 25215 89218 3x8mm locknut washer 89579 SC8.2e body mounts 89587 (rear) 89202 89218 RC8.2e RTR 25192 3x12mm 3x8mm shock tower 3x20mm bhcs washer (rear) shcs...
  • Page 20 89017 Diff Outer shim gearbox :: Rear Suspension Assembly 89162 15x21mm bearing 89096 89033 Wheel hex pins carrier 89572 (left, right) SC8.2e dogbone axle 89107 25236 Bearing Build right 8x16mm 89251 shield 89221 and left bearing Wheel hex 5x4mm sides!
  • Page 21 Build Two! :: Rear Suspension Assembly - (cont.) Build right and left sides! 89031 spacers (red) 89575 31520 SC8.2e 89041 2.5x6mm dogbone Outer bhcs (83mm) hinge pin :: Rear Suspension Assembly - (cont.) 89040 Inner hinge pins...
  • Page 22 :: Rear Suspension Assembly - (cont.) 25225 89089 3x3mm 2.8mm setscrew anti roll bar (gold) 25215 locknut 89219 3x5mm setscrew Tighten screws to 89474 remove free play but 31531 89017 3x22mm ensure some Swaybar 3x6mm shcs movement in the mount bhcs anti-roll bar.
  • Page 23 :: Rear Suspension Assembly - (cont.) 25215 locknut 89217 4x14mm fhcs 89214 4x12mm fhcs 25204 3x16mm fhcs :: Center Bulkhead Assembly 31532 89205 Motor 3x8mm 3x26mm 89501 bhcs bhcs Motor 89019 89254 mount Center Center bulkhead diff top (top) plate 89517 89528 89019...
  • Page 24 :: Center Bulkhead Assembly - (cont.) 89510 Motor pad 89576 SC8.2e RTR dogbone (108mm, front) 89577 SC8.2e RTR dogbone (136mm, rear) :: Center Bulkhead Assembly - (cont.) 89502 RC8e center diff riser 89217 4x14mm Install dog bones Install dog bones...
  • Page 25 :: Shocks Install 89083 Shock bushing Note the direction of the shock cap when installing onto shock standoffs 25612 Install M3 locknut two front with flange shocks. :: Shocks Install - (cont.) 89454 3x12mm shcs After installation, adjust droop screw to get a front shock length of 91069 103mm measured center to center Shock mount...
  • Page 26 :: Shocks Install - (cont.) 89454 3x12mm shcs After installation, adjust droop screw to get a rear shock length of 91069 122mm measured center to center Shock mount on the shock cap / eyelet. pin, steel :: Radio Tray Assembly 25187 89506 3x14mm...
  • Page 27 :: Radio Tray Assembly - (cont.) 89507 Battery tray pads Note: hook and loop straps are removed for view clarity. Bottom Bottom View View 89509 Flywheel opening cover :: Radio Tray Assembly - (cont.) 89216 locknut Note: there are two different positions 25215 for the locknuts...
  • Page 28 :: Radio Tray Assembly - (cont.) Note: route the speed Note: route the speed Note: route the servo control receiver wire up control receiver wire wire to the receiver and over the bridge through the radio box through this opening. hole.
  • Page 29 :: Radio Tray Assembly - (cont.) 25201 89007 3x8mm A - Airtronics Servo cone F - Futaba fhcs washer H - Hitec 89007 J - JR Servo 25215 horn ring Printed here locknut Enlarge holes in servo horn! 89007 2308 Note: hook and loop Steering 3x18mm...
  • Page 30 :: Radio Tray Assembly - (cont.) 89214 89213 4x12mm 4x6mm fhcs fhcs 89211 3x26mm fhcs :: Radio Tray Assembly - (cont.) 89205 3x26mm bhcs 25203 3x12mm fhcs 25215 locknut...
  • Page 31 :: Radio Tray Assembly - (cont.) Note: batteries not included. Note: hook and loop straps are removed for view clarity. :: Roll Cage Assembly 89425 Roof panel 89425 Rear hood panel 89203 3x16mm 89425 bhcs Rear window panel 89425 Rear support (left, right) 89453 3x35mm...
  • Page 32 :: Roll Cage Assembly - (cont.) 89425 Front hood panel 89425 Front window panel 89453 3x35mm 89425 bhcs Front support 89203 (left, right) 3x16mm bhcs 89203 89425 3x16mm Door panel bhcs (left, right) :: Roll Cage Assembly - (cont.) 31531 3x6mm 89427 bhcs...
  • Page 33 2208 Large body clip 89427 Firewall 31531 3x6mm bhcs :: Wheels, Tires, and Body Install 89578 SC8.2e Method race wheel 9809 Foam tire insert Tires: Tires: When gluing tires to wheels, use a fast-curing Tire glue (CA) (AE Pt#1597). This is available at your local hobby shop.
  • Page 34 :: Wheels, Tires, and Body Install 89406 Nyloc wheel nuts (black) :: Wheels, Tires, and Body Install (cont.) See Bodies / Decals section on page 46 2208 for optional SC8 Large bodies and decals! hood pins...
  • Page 35 :: Chassis Tips Gearing: Follow your motor manufacturer’s recommendations for gearing options. Gear Mesh: To correctly set your gear mesh, follow the steps below: 1. Loosen the set screw on the motor’s pinion gear. The set screw can be accessed through the slot on the side of the motor mount slide, opposite the spur gear.
  • Page 36 :: Front End Tips (cont.) Front Camber Angle: A good starting camber setting is –2 degrees. Positive camber, where the top of the tire is leaning out, is typically not recommended. Front Toe-In: Zero degree toe-in (tires pointing straight forward) is a good starting setting. You can increase turn in by adding 1-2 degrees of toe-out (front of tires point slightly out).

  • Page 37: Setup Sheets

    :: Droop Settings (Buggy shown but applicable for all vehicles) Note: Rear hub spacing is not recommended with RTR dog bones. For more adjustability, use CVA’s in place of dog bones Step 1: With only the bottom of the shocks attatched, the droop screws raised all the way, and the chassis above your working surface so the arms are at full extension, you should be able to easily slide the top of your shock over the standoff screw, while leaving the shock at full extension.
  • Page 38 :: Shocks :: Front and Rear Gear Differential 25612 M3 Locknut With Flange 25236 8x16x5 Bearings 89065 Shock Rod End 89113 Diff Ring Gear, Includes Diff Gasket 89066 Shock O-Rings 89115 Diff Housing 89067 Shock Limiters, Set 89116 Diff Gasket 89083 Shock Bushings 89117...
  • Page 39 :: Top Plate :: Shock Fluid 5420 10 Weight Silicone Shock Fluid 2oz. 25202 3x10mm FHCS 5421 20 Weight Silicone Shock Fluid 2oz. 25203 3x12mm FHCS 5422 30 Weight Silicone Shock Fluid 2oz. 25215 M3 Locknut 5423 40 Weight Silicone Shock Fluid 2oz.
  • Page 40 25215 89224 3x16mm SHCS 89228 3x40mm SHCS 89571 89278 2.5mm Washer 89017 89472 RC8B Front Bulkhead Spacer 25236 89571 SC8.2e Center Drive Line Input 89472 89576 SC8.2e RTR Dogbone 108mm 25215 89224 89017 25236 89214 89219 89114 89017 31531 89219...
  • Page 41 :: Front Bumper 25190 3x14mm SHCS 25192 3x20mm SHCS 25215 M3 Locknut 89228 3x40mm SHCS 89433 Front Bumper Mount 25215 25192 89434 Front Bumper and Skid Plate 89433 25192 89433 25215 89433 89433 89228 89434 89434 25190 25192 :: Rear Bumper 25192 3x20mm SHCS 25192...
  • Page 42 89221 89278 2.5mm Washer 89279 3x45mm SHCS 89279 89201 89472 RC8B Front Bulkhead Spacer 89278 25236 89218 89571 SC8.2e Center Drive Line Input Cup 89577 SC8.2e RTR Dogbone 136mm 89571 89577 89214 89218 89201 89040 89278 89039 89038 89040 89218...
  • Page 43 3x28mm SHCS 89227 3x28mm SHCS 89473 RC8B Steel Shock Stand-offs 89454 3x12mm SHCS 89579 SC8.2e RTR Body Mounts (Front, Rear) 89473 RC8 Steel Shock Standoffs 89586 RC8.2e RTR Front Shock Tower 89579 SC8.2e RTR Body Mounts (Front, Rear) 89587 RC8.2e RTR Rear Shock Tower...
  • Page 44 :: Radio Tray 2308 3x18mm BHCS 21173 6338 Antenna Tube and Cap 21173 18T Body Clips 25187 3x14mm BHCS 21173 25201 3x8mm FHCS 25203 3x12mm FHCS 25215 M3 Locknut 89504 31531 3x6mm BHCS 6338 25187 89006 RC8 Servo Mount Spacers, Set 89007 Steering Servo Horns, Set 25187...
  • Page 45 :: Roll Cage 31531 3x6mm BHCS 89203 3x16mm BHCS 89425 SC8 Roll Cage 89427 Firewall and Dirt Shields 89453 3x35mm BHCS 89427 89453 31531 89203 89453 89425 89425 89203 89425 89425 89425 89203 89425 89203 89425 89425 89453 89453 89427 89425 89203 89425...
  • Page 46 Silver Beadguards 89420 KMC Wheel (Black) / Tires w/ Black Beadguards 89421 KMC Wheel (Black) / Tires w/ Red Beadguards 89422 SC8 Tires and Inserts 89578 SC8.2e Method Race Wheel, Black - Kit 89588 SC8.2e Method Race Wheel, Chrome - Kit...
  • Page 47 :: Factory Team and Option Parts :: Factory Team and Option Parts - (cont.) 25392 3mm Blue Locknut, Flanged 89542 FT RC8.2 Front Spring, 4.00 Green 31550 M3 Aluminum Lock Nut 89543 FT RC8.2 Front Spring, 4.30 Silver 80930 1/8 Scale Electric Conversion Kit 89544 FT RC8.2 Front Spring, 4.65 Blue 89005...
  • Page 48 AE Vertigo Black T-Shirt (S, M, L, XL, 2XL, 3XL, 4XL) (ready-to-run) SP66** AE Stencil Blue T-Shirt (S, M, L, XL, 2XL, 3XL, 4XL) 80934 SC8.2e Short Course Race Truck Slick Mist RTR SP67** AE Stencil Gray Sweatshirt (S, M, L, XL, 2XL, 3XL) (ready-to-run) SP69**...
  • Page 49 FT 1/4” Hex Drive 11/32” Nut Driver Tip 1666 FT 1/4” Hex Drive 5.5mm Nut Driver Tip 1667 FT 1/4” Hex Drive 7.0mm Nut Driver Tip Associated Electrics, Inc. 1668 FT 1/4” Hex Drive 8.0mm Nut Driver Tip 26021 Commercentre Drive 1669 FT 1/4”...
  • Page 50 :: Notes...
  • Page 51 :: Hardware - 1:1 Scale View Flat Head (fhcs) Cap Head (shcs) Button Head (bhcs) 3x8mm (25201) 2.5x8mm (89222) 2.5x3mm (89201) 3x10mm (25202) 3x8mm (89223) 2.5x6mm (31520) 3x12mm (25203) 3x10mm (25620) 3x6mm (31531) 3x14mm (89208) 3x12mm (89454) 3x10mm (25211) 3x16mm (89224) 3x16mm (89224) 3x12mm (89202) 3x18mm (89209)
  • Page 52 Driver: SC8.2e RTR Setup Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Steering System: Anti Roll Bar: 2.2mm Black Stock Rack 2.2mm Black 2.5mm Silver Swing Rack 2.5mm Silver 2.8mm Gold Bellcrank Rack 2.8mm Gold 3.0mm Black...
  • Page 53 Driver: Date: Track: Event: Conditions: Rev.1 Setup Sheet Front Suspension Rear Suspension Anti Roll Bar: Steering System: Anti Roll Bar: 2.2mm Black Stock Rack 2.2mm Black 2.5mm Silver Swing Rack 2.5mm Silver 2.8mm Gold Bellcrank Rack 2.8mm Gold 3.0mm Black 3.0mm Black back Bumpsteer...
