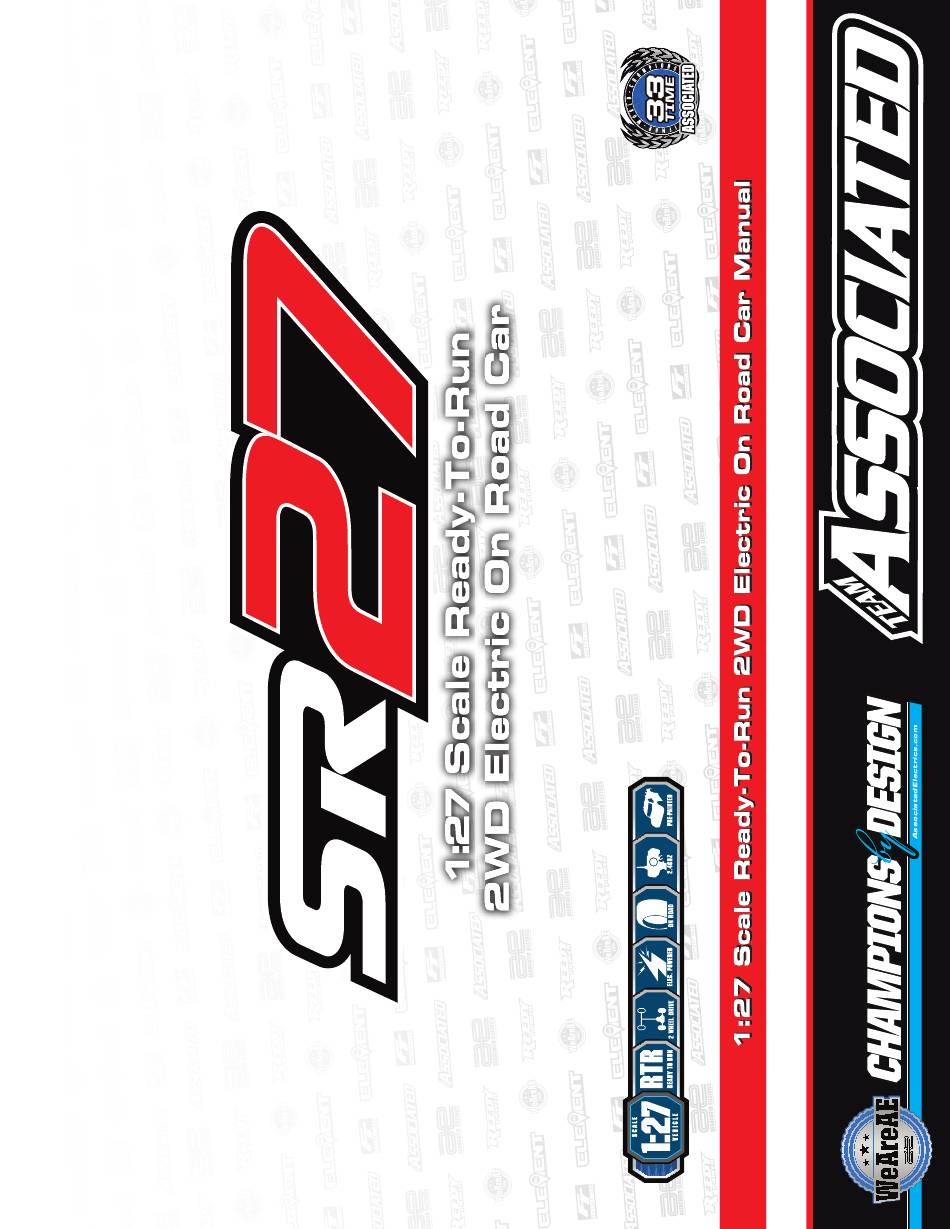

Associated Electrics SR27 Manual

1:27 scale ready-to-run 2wd electric on road car
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR27 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Associated Electrics SR27

Summary of Contents for Associated Electrics SR27

  • Page 2 New parts will be noted on supplementary sheets located in the appropriate parts bags. Check each bag for these sheets before you start to build. :: SR27 RTR Features :: SR27 RTR Features • Set-up for balanced handling performance out of the box •...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Shims and Washers Ball Bearings 1.5x4mm (21824) 3.1x5x0.2mm (21808) 2x6x2.5mm (21808) 2x5mm (21824) 2x6x2.5mm (21808) 3x6x2.5mm (21825) 2x10mm (21807) Nuts (lock/plain) 2x12mm (21824) Wheel Nut (21809) :: Notes :: Notes...
  • Page 4 2..... Introduction 14....Wheel and Tire Install 3..... 1:1 Hardware “Fold Out” 15....Batteries Install 4..... Table of Contents 15....SR27 Side View 5..... Radio/Receiver/ ESC Instructions 16....240z Body Install 9..... Electronics Install 17....400z Body Install 10....Steering Install 18....

  • Page 5: Battery Installation And Replacement

    10/24 :: Radio/Receiver/ESC Manual :: Radio/Receiver/ESC Manual Features Specifications • Steering trim adjustment Radio GT16 • Steering dual-rate (D/R) adjustment Configuration Pistol grip • Steering end-point (EPA) adjustment Frequency Band 2.4 GHz • Integrated gyro Channels Input Voltage AA x4 •...
  • Page 6 :: Radio/Receiver/ESC Manual cont. :: Radio/Receiver/ESC Manual cont. Functions Steering Dual-Rate (ST DR) Use to adjust the maximum travel range of the vehicle’s steering system. Turn the knob clockwise to increase travel range (more steering) or counterclockwise to reduce travel range (less steering). Throttle Limit (TH DR) Use to adjust the maximum full throttle limit of either 50%, 75%, or 100% to fine tune power output based on driver skill level and track conditions.

  • Page 7: Restore Factory Settings

    :: Radio/Receiver/ESC Manual cont. :: Radio/Receiver/ESC Manual cont. EPA (End Point Adjustment) EPA allows the left and right steering endpoint to be set independently from each other. The endpoint settings will be pre-set from the factory but can be changed for fine-tuning purposes. Use the following procedure to set the endpoints: 1.
  • Page 8 Lights While not available currently, the 4-pin port is suitable for LED light installation. Associated Electrics, Inc. declares that this product complies with the essential requirements and other relevant provisions of the European directive 2014/30/EU. The crossed-out wheeled bin means that within the European Union, this product must be taken to a separate waste...
  • Page 9 :: Electronics Install - Electronics Install - Step 1 Step 1 21807 SR27 Servo 21830 Spring SR27 Servo 21807 21807 2x10mm SR27 Servo BHCS Horn 21807 SR27 Servo 21807 SR27 Servo Spacer :: Electronics Install Electronics Install - - Step...
  • Page 10 (Wide) 2x5mm 2x5mm BHCS BHCS 21826 21826 Front Front Spring Spring :: Steering Install - Steering Install - Step 3 Step 3 NARROW VERSION WIDE VERSION 21824 21824 2x5mm 2x5mm BHCS BHCS 21800 21800 SR27 SR27 Chassis Cover Chassis Cover...
  • Page 11 Pinion, Motor Plate Motor Plate (Left, 9T) (Left, 9T) 21802 21804 21828 21828 Pinion, Pinion, SR27 Motor SR27 Motor :: Rear End - Rear End - Step 3 Step 3 REAR MOTOR MID MOTOR 21806 21806 Rear Shock Rear Shock...
  • Page 12 :: Rear End - Rear End - Step 4 Step 4 REAR MOTOR MID MOTOR 21825 21825 3x6x2.5mm 3x6x2.5mm Bearing Bearing 21808 21808 Rear Axle Rear Axle Shaft Shaft 3x68mm 21808 21808 3x68mm (Gear Diff) Rear Wheel Rear Wheel (Gear Diff) :: Rear End - Rear End - Step 5 Step 5...
  • Page 13 :: Rear End - Rear End - Step 7 Step 7 REAR MOTOR MID MOTOR 21824 21824 2x5mm 2x5mm BHCS BHCS :: Shcok Install - Shcok Install - Step 1 Step 1 21806 Shock Shaft See page 14 for Racers Tips on Shock Lube 21826 21806...
  • Page 14 Tire Set, 8.5mm - 35 Shore #21822 Tire Set, 11mm - 20 Shore 21808 #21823 Tire Set, 8.5mm - 20 Shore 2x6x2.5mm Spacer 21809 Wheel Nuts 21815 21825 SR27 Turbine 2x6x2.5mm See page 14 for Racers Wheel and Tips on Tires Bearing Tire Set...
  • Page 15 Wheel and Tire Tips on Tires Bearing :: Batteries Install Batteries Install - - Step Step 1 1 REAR MOTOR MID MOTOR Batteries Batteries 21800 21800 Battery Battery Holder Holder :: SR27 Side View SR27 Side View REAR MOTOR MID MOTOR...

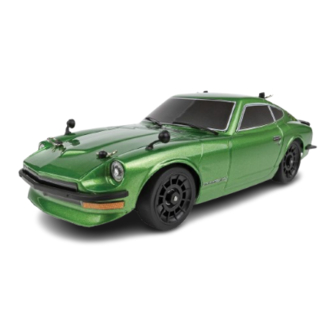

  • Page 16 :: 240z :: 240z Body Install - Body Install - Step 1 Step 1 REAR MOTOR 21813 Bodies SR27 Datsun #21811 Datsun 240z Body, Green 240z Body #21812 Datsun 240z Body, Clear Accessories, #21814 Datsun 240z Body, Red Wipers #21833...
  • Page 17 MID MOTOR Bodies #21817 2023 Nissan Z Body, Clear #21831 2023 Nissan Z Body, Yellow #21832 2023 Nissan Z Body, Blue 21817 21817 SR27 2023 SR27 2023 Nissan Z Body Nissan Z Body Accessories, Accessories, Wing Mirrors 21817 SR27 2023...

  • Page 18: Maintenance

    Gearing: • There are four pinion gear options for the SR27. Which gearing is used will depend on the size of track and the features it has. Lower tooth count pinions will provide faster acceleration with a lower top speedwhile higher count pinions have a higher top speed and smoother but slower acceleration.
