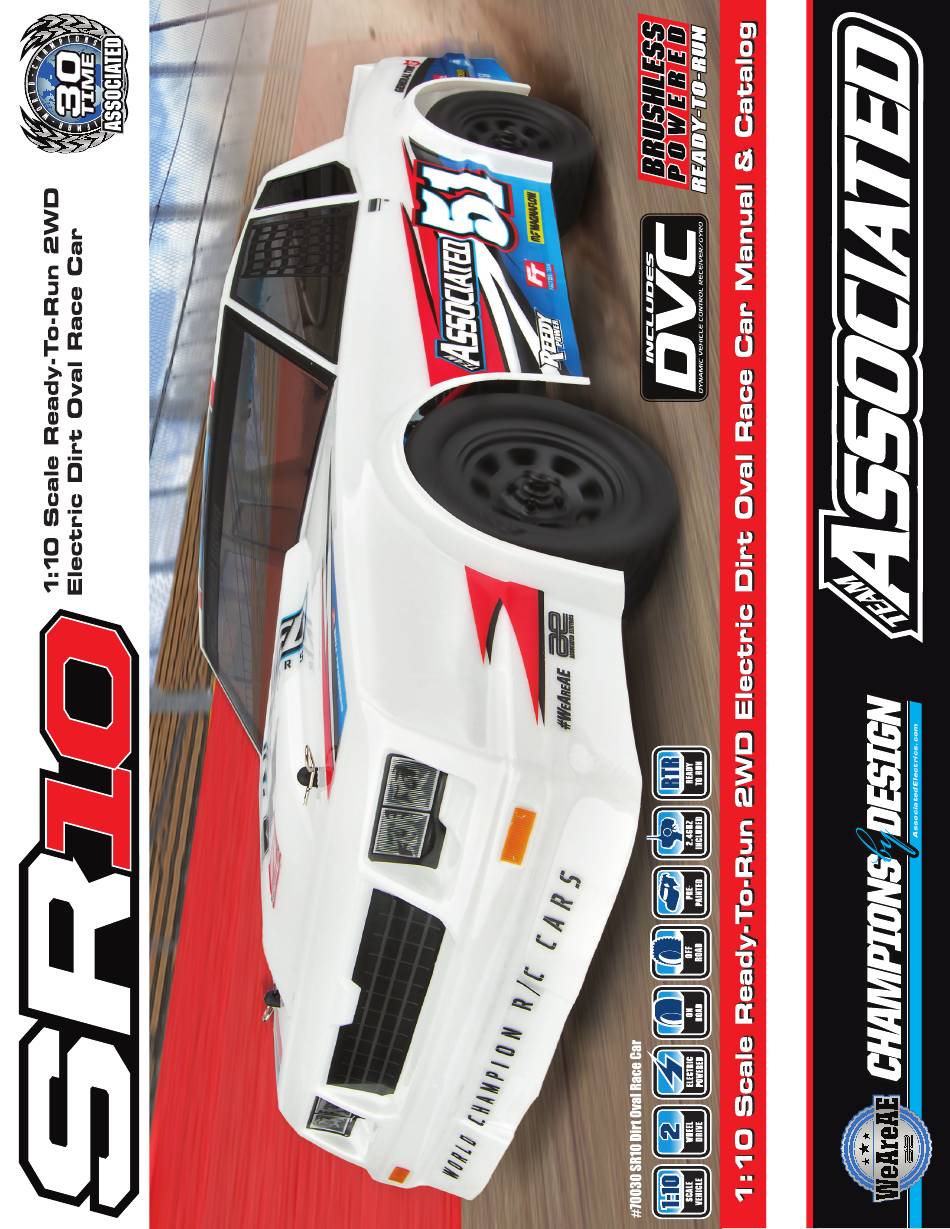

Associated Electrics SR10 Manual

Electric dirt oval race car
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR10 and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics SR10

Summary of Contents for Associated Electrics SR10

  • Page 2 • Reamer / Hole Punch • Ride Height Gauge • FT Nut Drivers (AE #1663 - 1668) • Turnbuckle Wrench (AE #1114) • Needle Nose Pliers Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 3 :: Hardware - 1:1 Scale View :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x3mm (31509) 3x8mm (25201) 3x7x3mm (91475) 2x4mm (31510) Aluminum (8545) 3x10mm (25202) 5x10x4mm (25237) 2.5x8mm (31521) Aluminum (8555) 2.5x10mm (31522) 3x12mm (25203) 6x13x5 (91562) 3x5mm (31530)
  • Page 4 This symbol indicates a Racers Tip. until you find the exact size. Each part in the foldout has a number assigned to it for ordering replacement parts. Associated Electrics, Inc. Customer Service 21062 Bake Parkway. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 5 11/20 :: Quick Start Guide Quick Start Guide Battery Charging Steps and Safety: Remove the battery from the vehicle before charging. Place battery on a fire resistant surface. Avoid any contact with water or other liquids. Be sure to select the correct charging mode for the type of battery you are charging.
  • Page 6 :: Quick Start Guide Quick Start Guide - (cont.) - (cont.) Battery Notes and Tip: Connect the battery as shown. Disconnect the battery when not in use! LiPo: LiPo batteries (lithium polymer) are high current rechargeable batteries. LiPo batteries offer extended run time and peak performance over NiMH batteries.
  • Page 7 :: Quick Start Guide Quick Start Guide - (cont.) - (cont.) Radio System Tuning and Controls: DO NOT hold the trigger when turning on the radio. If using optional battery for transmitter, be sure to plug it in correctly. Plugging in a battery backwards can cause damage.
  • Page 8 :: Front Top Plate and Steering Build - Step 1 :: Front Top Plate and Steering Build - Step 1 91475 91047 91047 3 x 7 x 3 Heavy-duty Heavy-duty Ball Bearing Ballstud, Ballstud, 91391 Steering Bellcrank 91391 Brace Steering Rack 89202 M3 x 12mm...
  • Page 9 (front, Inner) Pin Brace :: Front Suspension Build Front Suspension Build - - Step 3 Step 3 31383 91049 91477 FT Ballstud Heavy-duty M3 Nut Washer, Ballstud, 10mm (Black) Aluminum (2mm) 89205 M3 x 26mm BHCS 71093 SR10 Front Shock Tower...
  • Page 10 :: Front Suspension Build Front Suspension Build - - Step 4 Step 4 89202 M3 x 12mm BHCS :: :: Rear Suspension Rear Suspension Build Build - Step 1 - Step 1 31521 71068 M2.5 x 8mm Rear Arms BHCS 91359 C Mount 91359...
  • Page 11 89204 M3 x 24mm BHCS 91477 M3 Nut (Black) 71093 SR10 Rear Shock Tower :: Rear :: Rear Shock Tower and Bumper Build - Bag D - DD - Step 1 :: :: Gear Diff Gear Diff Build Shock Tower and Bumper Build - Bag D - DD - Step 1...
  • Page 12 :: :: Gear Diff Gear Diff Build Build - Step 3 - Step 3 31350 M2.5 x 10mm FHCS 91463 Gear Diff Gasket * Ensure free outdrive rotation before installation! :: Gearbox Build - Step 1 Gearbox Build - Step 1 91430 Gearbox 91466...
  • Page 13 :: Gearbox Build - Step 3 Gearbox Build - Step 3 91478 M3 x 30mm FHCS 71038 Body Mount Brace (Left & Right) 91428 25202 Motor Plate, M3 x 10mm Blue FHCS :: Slipper Build - Step 1 Slipper Build - Step 1 9611 Slipper 9739...
  • Page 14 Gearbox Install - Step 3 25202 25204 M3 x 10mm M3 x 16mm 71066 FHCS FHCS Rear Body Pivot SR10 71038 Rear Body 71066 Mount Rear Body Post 71032 M2.5 x 14mm SHCS :: Rear Hub and CVA Build - Step 1...
  • Page 15 :: Rear Hub and CVA Build - Step 2 Rear Hub and CVA Build - Step 2 91436 CVA Wheel Hex Pin 91418 31510 Wheel 91394 M2 x 4mm Hex (rear) Hinge Pin BHCS (rear, outer) Build x2 (right and left side) :: Turnbuckles Build - Step 1 Turnbuckles Build - Step 1 91722...
  • Page 16 :: Turnbuckles Build - Step 3 91722 91722 91723 Ball Cup Ball Cup Turnbuckles, 3x48mm Rear Camber Turnbuckle 23.50mm Racers Tip: Orient the notch Use black grease to the left throughout the (#6588) on the car. It indicates which end threads of the has the left hand threads! turnbuckles for...
  • Page 17 :: Shocks Build - Step 3 Shocks Build - Step 3 91454 Shock Bleeding Steps: Shock Cap Pull shock shaft down. (Molded) Fill shock body 3/4 full with silicone Free fluid. Length Slowly move the shock shaft up and Front/Rear down to remove air from under piston.
  • Page 18 :: Electronics Build - Step 1 Electronics Build - Step 1 Align the servo horn 90 degrees. 91047 Adjust steering trim once vehicle is Heavy-duty complete. Ballstud, 6mm 91469 Servo Steering 71047 Link 25201 Servo M3 x 8mm Saver FHCS :: Electronics Build - Step 2 Electronics Build - Step 2 91391...
  • Page 19 :: Electronics Build - Step 4 Electronics Build - Step 4 71023 Receiver Box Grommet * Install the ESC wires and the Servo wires into the wire grommet before installing the grommet into the receiver box! 71023 * Receiver grommet Wire plug can be removed if Grommet...
  • Page 20 :: Electronics Build - Step 7 Electronics Build - Step 7 :: Bumpers :: Bumpers Build - Step 1 Build - Step 1 Battery not included! 71095 Front Body 71197 Post Battery 71094 Foam Spacer Front Bumper Brace (Left, Right) 71094 Front Bumper...
  • Page 21 :: Bumpers :: Bumpers Build Build - Step 4 - Step 4 71042 71042 Rear Bumper Rear Bumper 91478 Pivot Brace M3 x 30mm BHCS 71042 Rear 89204 Bumper M3 x 24mm BHCS 25187 M3 x 14mm BHCS :: Tires and Body Build - Step 1 :: Tires and Body Build - Step 1 Clean the tire and wheel bead.
  • Page 22 :: Tires and Body Build - Step 3 :: Tires and Body Build - Step 3 21173 Small Body Clips 71193 SR10 Street Stock Body, Painted...
  • Page 23 :: Tuning Tips :: Tuning Tips Tips for Beginners: Before making any changes to the standard setup, make sure you can get around the track without crashing. Changes to your vehicle will not be beneficial if you can’t stay on the track. Your goal is consistent laps. Once you can get around the track consistently, start tuning your vehicle.
  • Page 24 Ackermann is the angle difference between the front wheels when they are turned to steer the car. For minimal tire slip, it is standard for the inside wheel to steer to a greater angle than the outside wheel. The SR10 allows Ackermann adjustments by changing the washer thickness used behind the steering rack ballstuds.
  • Page 25 :: Shock Springs - Front :: Shock Springs - Front :: Shocks :: Shocks 91830 12mm Spring (44mm) Green 3.10 5407 Red O-Rings 91831 12mm Spring (44mm) White 3.40 6299 E-Clip 91832 12mm Spring (44mm) Gray 3.60 31327 FT VCS3 Shock Bottom Caps 91833 12mm Spring (44mm) Blue 3.90 71051...
  • Page 26 :: Transmission :: Transmission 7337 .250x.125x.015” Washer 25202 M3 x 10mm FHCS 31532 25203 M3 x 12mm FHCS 7337 25211 M3 x 10mm BHCS 31532 25202 25237 Bearing, 5 x 10 x 4 31532 M3 x 8mm BHCS 91428 89203 M3 x 16mm BHC 91132 4x4 Idler Gear Shaft...
  • Page 27 :: Optional Optional Ball Differential Ball Differential 6573 Diff Thrust Washer & Bolt 6575 8680 6574 Precision Diff Thrust Balls, 5/64” 6575 Locking T-Nut, Diff Thrust Bolt, & Cover 6582 7666 6581 3/32” Carbide Diff Balls 6582 Diff Thrust Spring 7666 Diff Drive Rings, 2.60:1 91420...
  • Page 28 Steering Block, Hex :: Front Arm :: Front Arm 25189 M3 x 22mm BHCS 25215 M3 Locknut, Black 25237 Bearing, 5 x 10 x 4 91417 31510 M2 x 4mm BHCS 89202 31530 M3 x 5mm BHCS 71068 Suspension Arm Set 71127 Front Axle 89202...
  • Page 29 :: Battery Strap :: Battery Strap 71050 Hook and Loop Straps 71197 SR10 Foam Battery Spacer 71050 71050 71050 71197 71197 :: Front Bumper :: Front Bumper 25202 M3 x 10mm FHCS 25203 25203 M3 x 12mm FHCS 71095 31522 M2.5 x 10mm BHCS...
  • Page 30 31383 Ballstud Washer, 5.5 x 2mm, Blue Aluminum 71032 M2.5 x 14MM SHCS 71066 Body Posts and Body Mount 71093 SR10 Shock Tower Set 89202 M3 x 12mm BHCS 89205 M3 x 26mm BHCS 91049 Heavy-Duty Ballstud, 10mm 91049 91444...
  • Page 31 :: Wheels / Tires 71096 SR10 Front Wheels, Black 71097 SR10 Rear Wheels, Black 71194 SR10 Front Wheels w/Street Stock Tires, Mounted 71195 SR10 Rear Wheels w/Street Stock Tires, Mounted 71195 :: Body and Decals :: Body and Decals 21173...
  • Page 32 :: Factory Team and Option Parts Factory Team and Option Parts :: Lubes & Adhesives / Misc. :: Lubes & Adhesives / Misc. 1409 FT Ti Turnbuckle, 1”/25.5mm (sway bar) (blue) 1105 FT Green Slime Shock Lube 1736 FT Blue Body Clip, short 1596 FT Locking Adhesive 7495...
  • Page 33 27117 RT3507A Digital HV Aluminum Brushless Servo 27118 RS3005A Digital HV Aluminum Brushless Servo Associated Electrics, Inc. 27119 RT1705A Digital HV Aluminum Brushless LP Servo 21062 Bake Parkway 27121 RT2207A Gear Set...
