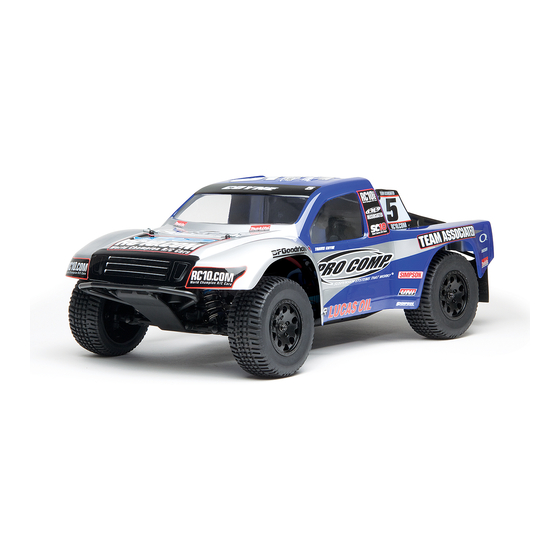

Associated Electrics SC10 4x4 Short Course Manual

1:10 scale electric 4wd off road race truck
Hide thumbs Also See for SC10 4x4 Short Course:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC10 4x4 Short Course and is the answer not in the manual?

Questions and answers

Related Manuals for Associated Electrics SC10 4x4 Short Course

Summary of Contents for Associated Electrics SC10 4x4 Short Course

  • Page 2 It’s not often a new platform is introduced that redefines a class. The engineers of Area 51 seized the opportunity to create the next legendary vehicle. Once you have driven the SC10 4x4 for yourself, we think you will agree - this is the 4x4 short course race truck that you have been waiting for! We are continually updating and improving our designs;...
  • Page 3 Each part in the foldout This symbols indicates a has a number assigned to it for ordering special note or instruction replacement parts. in the manual. Associated Electrics, Inc. Customer Service 26021 Commercentre Dr. Tel: 949.544.7500 Lake Forest, CA 92630 Fax: 949.544.7501...
  • Page 4 :: Servo Install - Bag A You will need to have your transmitter, 89224 receiver, speed control, servo, and a M3x16mm shcs charged battery ready to go for the servo installation and alignment steps! 91004 Front inner body mount 91014 Front chassis brace...
  • Page 5 :: Servo Install (cont.) - Bag A Adjust gap to hold Alignment servo forward tool 1. Push the servo forward into the alignment tool. 2. Adjust the servo sliders forward to bolt the servo into place. 3. Tighten the slider screws from the side.
  • Page 6 :: Servo Install (cont.) - Bag A 91003 Servo 91047 horn HD ballstud Uninstall the servo alignment tool, front body mount, and the steering bellcrank support! Set parts aside for future installation. 91000 Steering 91003 link Servo horn ring There are multiple servo horns included in your kit.
  • Page 7 :: Steering Assembly - Bag A 89216 91000 91000 91181 M4 locknut Steering Option Steering servo rack 91001 steering rack saver cap (RTR ONLY) Servo saver (FT ONLY) spring 91001 Steering 91048 bellcrank HD ballstud 91000 91000 Steering Servo bellcrank saver top 91048 91000...
  • Page 8 :: Differential Assembly - Bag B 91007 91007 4X4 gear 4X4 gear 91005 diff sun gear diff outdrive 4X4 gear washer o-ring diff case 91007 91129 4X4 gear FT lightweight diff inner geardiff o-ring outdrives (FT ONLY) 91157 91007 10x16x4 4X4 gear 91006 bearing...
  • Page 9 :: Differential Assembly (cont.) - Bag B 91007 4675 4X4 diff M2.5x6mm cross pin fhcs 91007 Ensure free 4X4 diff rotation of outdrives! planet gear Align the 91005 washer notches in the 4X4 gear cross pins! diff seal 91007 4X4 diff planet gear Diff Fluids Front...
  • Page 10 :: Front Gearbox Assembly (cont.) - Bag C Note: The idler Note: The idler gear will only slide gear will only slide in one way! in one way! Install the gear diff with the 91010 91010 screw heads 4X4 idler 4X4 idler facing as shown! gear...
  • Page 11 :: Front Gearbox Assembly (cont.) - Bag C 3mm = Locked 2mm = Clicker Note: Start with the nut tightened completely down (3mm) for full time 4 wheel drive. 91013 Front clicker 91013 spring Front clicker 91013 25215 pulley driver Front clicker M3 locknut spring cap...
  • Page 12 :: Rear Gearbox Assembly - Bag D 25238 6x12x4 bearing 25238 6x12x4 bearing 91015 91015 4X4 rear 4X4 rear gearbox gearbox :: Rear Gearbox Assembly (cont.) - Bag D 91016 4X4 top shaft ,rear (RTR ONLY) 91132 4X4 idler gear shaft, gear shaft, aluminum (FT ONLY)
  • Page 13 :: Rear Gearbox Assembly (cont.) - Bag D 31510 Note: The M2x4mm bhcs M2x4mm can be removed to insert bhcs a tool through the hole to remove the top shaft bearing from the gear case! 91019 Rear chassis brace :: Rear Gearbox Assembly (cont.) - Bag D 9630 Aluminum 89226...
  • Page 14 :: Front Shock Tower Assembly - Bag E-EE 31551 25217 91024 M4 locknut M4 locknut Body w/flange, w/flange mounts blue (RTR ONLY) aluminum 91024 (FT ONLY) Front body mount bracket 25190 8564 91020 M3x14mm 91022 M3x14mm Front shcs shcs, aluminum Shock shock mounts...
  • Page 15 :: Rear Shock Tower Assembly - Bag F 31551 91024 M4 locknut Body w/flange, mounts blue aluminum 91024 (FT ONLY) Rear body mount bracket 25217 91022 91023 M4 locknut 25190 8564 Shock Rear w/flange M3x14mm M3x14mm mounts shock (RTR ONLY) shcs shcs, aluminum tower...
  • Page 16 :: Front Suspension Assembly - Bag G-GG 91026 91049 Left Steering 10mm spindle HD ballstud (left, right) 91044 coupler 25238 91040 6x12x4 Front CVA bearing bone 25215 locknut (black) 91042 Build left CVA axle Build 2 and right Right CVA’s side! :: Front Suspension Assembly (cont.) - Bag G-GG 91137...
  • Page 17 :: Front Suspension Assembly (cont.) - Bag G-GG 91048 91028 HD ballstud Steel hat Left bushing 91026 Caster block 31510 M2x4mm bhcs Build left Build left and and right right side! Note: #31510 bhcs Right side! is to be used as a (right side shown) steering stop.
  • Page 18 :: Front Suspension Assembly (cont.) - Bag G-GG Left Build left and right side! 25187 91035 M3x14mm Inner hinge Right 91127 bhcs FT TiN front (RTR ONLY) inner hinge (FT ONLY) :: Front Suspension Assembly (cont.) - Bag G-GG 91029 91029 Front 25620...
  • Page 19 :: Front Suspension Assembly (cont.) - Bag G-GG RTR = Pre-assembled & installed turnbuckles Note the orientation of the ballcups! Build a left and right side! Front Camber Link Front Steering Link (right side shown) (right side shown) 91115 91115 FT Ti heavy-duty FT Ti heavy-duty Install ballstuds...
  • Page 20 :: Rear Suspension Assembly - Bag H-HH 91048 HD ballstud 91044 91040 Rear CVA coupler bone Left 25238 6x12x4 25215 bearing M3 locknut (black) 91042 Build left 91032 Build 2 CVA axle and right Rear hub Right CVA’s side! carriers :: Rear Suspension Assembly (cont.) - Bag H-HH 91033 Rear axle...
  • Page 21 :: Rear Suspension Assembly (cont.) - Bag H-HH 91037 Left 25215 Left Rear hub M3 locknut wheelbase (black) shim 89218 M3x8mm washer Do not 91036 91031 overtighen! Rear outer Rear arms Right Ensure free hinge pin hub movement! Right :: Rear Suspension Assembly (cont.) - Bag H-HH 91034 Rear arm mount (D)
  • Page 22 :: Front Swaybar Assembly - Bag HH-HH 91173 Swaybar cap #3 91126 Install socket Swaybar joint and pivot socket joint ball through (short) the larger hole side of the link. 91173 91126 Build two front Swaybar Pivot ball link swaybar mounts with the short swaybar swaybar...
  • Page 23 :: Rear Swaybar Assembly - Bag HH-HH 91173 Swaybar cap #2 Install socket Install socket 91126 joint and pivot joint and pivot Swaybar ball through ball through socket joint the larger hole the larger hole (long) side of the link. side of the link.
  • Page 24 :: Shocks Assembly - Bag I 91059 Shock piston 91059 bhcs M2.5x5x0.5 Install the shock washer 91059 Install the shock cartridge seal Shock 91065 piston with the piston tube with the 1.2mm taper side spacer tapered side pistons pointed down pointed to the 91058 91057...
  • Page 25 :: Shocks Assembly (cont.) - Bag I “Bladder Style Setup” 91062 * Shock Bleeding Steps: 1. Fill shock body 3/4 full with silicone Molded 91063 shock fluid shock cap 2. Slowly move the shock shaft up and Shock Do not down to remove any air bubbles.
  • Page 26 :: Shocks Assembly (cont.) - Bag I Front 91068 89223 Shock cap M3x8mm Shocks bushing shcs Install (RTR ONLY) 8561 M3x8mm shcs, aluminum (FT ONLY) 91134 FT shock mount pins (FT ONLY) 25612 91069 M3 locknut Shock mount w/flange pin, steel (black) (RTR ONLY) :: Shocks Assembly (cont.) - Bag I...
  • Page 27 :: Chassis Assembly (cont.) - Bag J 89454 89454 M3x12mm M3x12mm shcs shcs (RTR ONLY) 91086 91085 Receiver Battery strap lock (RTR ONLY) :: Chassis Assembly (cont.) - Bag J Note: Route servo wire through slot in chassis.Then, flex front clip onto chassis! Note: Route your Note: Some...
  • Page 28 :: Chassis Assembly (cont.) - Bag J 89454 M3x12mm 25191 shcs M3x18mm shcs 25215 M3 locknut (black) :: Chassis Assembly (cont.) - Bag J Note: Flex rear clip onto chassis!
  • Page 29 :: Chassis Assembly (cont.) - Bag J 89227 25190 25190 M3x28mm M3x14mm M3x14mm shcs shcs shcs :: Chassis Assembly (cont.) - Bag J 25191 M3x18mm shcs 25215 M3 locknut (black) Bottom view view...
  • Page 30 :: Belt, Tensioners, Spur Gear, and Covers Assembly - Bag K-KK 91091 Belt tensioner 31402 4x8mm 91088 Round bearing Rear inner side belt cover 25658 M3x6mm shcs 91013 Belt tensioner 91158 pulley Build M3x4mm two! bhcs :: Belt, Tensioners, Spur Gear, and Covers Assembly (cont.) - Bag K-KK To adjust the belt tensioner, you 89528 need to remove the #91159...
  • Page 31 :: Belt, Tensioners, Spur Gear, and Covers Assembly (cont.) - Bag K-KK 91093 4X4 drive belt Install the belt between the rear pulley and the rear belt tensioner. Then slide the belt over the front pulley. Ensure free rotation! :: Belt, Tensioners, Spur Gear, and Covers Assembly (cont.) - Bag K-KK 89528 To adjust the belt tensioner, you M3x5.6mm...
  • Page 32 :: Belt, Tensioners, Spur Gear, and Covers Assembly (cont.) - Bag K-KK FT VTS slipper clutch install! “CAUTION” Ensure that the slipper pad behind the spur gear 91094 is properly installed Spur gear (32P - 62T) before tightening up the (550 motors) new VTS slipper assembly! 91097...
  • Page 33 :: Belt, Tensioners, Spur Gear, and Covers Assembly (cont.) - Bag K-KK 25620 8562 89218 31532 M3x10mm M3x10mm M3x8mm M3x8mm 91088 shcs shcs, washer bhcs Center belt (RTR ONLY) aluminum (RTR ONLY) cover (inner) (FT ONLY) 91088 Center 91088 belt cover Front outer (outer) belt cover...
  • Page 34 :: Electronics Installation (cont.) - Bag L-LL FT ESC install! ESC not included in FT kit! :: Electronics Installation (cont.) - Bag L-LL 91152 ESC tray RTR electronics install! Brushless 6727 Servo tape 91152 ESC mount foam :: Electronics Installation (cont.) - Bag L-LL 91158 M3x4mm bhcs...
  • Page 35 :: Electronics Installation (cont.) - Bag L-LL RTR electronics Use the optional battery install! tray wall if you do not wish to use the ESC tray! 91152 Battery wall 25201 M3x8mm fhcs Use the tabs on the electronics tray to route your ESC and transponder wires! :: Electronics Installation (cont.) - Bag L-LL...
  • Page 36 :: Electronics Installation (cont.) - Bag L-LL 29222 XP TRS401-ss 2.4GHz 4CH Receiver (RTR only) Receiver not included in FT kit! :: Electronics Installation (cont.) - Bag L-LL 91087 Receiver box seal Install antenna (antenna) 6727 wire through Servo tape the hole as shown! :: Electronics Installation (cont.) - Bag L-LL...
  • Page 37 :: Electronics Installation (cont.) - Bag L-LL 89219 M3x5mm 91087 set screw 6338 Receiver Antenna box seal 6338 Antenna tube :: Electronics Installation (cont.) - Bag L-LL 89223 M3x8mm shcs The receiver box lid will have to be installed at an 91086 angle due to the Receiver...
  • Page 38 :: Electronics Installation (cont.) - Bag L-LL 91185 Battery cradle (left and FT battery right side) strap install! Use holes on battery cradle to mount optional 25202 ballast weights. M3x10mm Part #31296 fhcs :: Electronics Installation (cont.) - Bag L-LL 91185 89208 Battery...
  • Page 39 :: Electronics Installation (cont.) - Bag L-LL FT battery Insert this strap install! side first, then lock! 91187 Saddle pack battery strap :: Electronics Installation (cont.) - Bag L-LL FT battery strap install! Adjust the battery strap height to fit your LOCKED LOCKED saddle pack batteries.
  • Page 40 :: Electronics Installation (cont.) - Bag L-LL RTR battery You can install the battery foam strap install! spacers to either have the battery positioned forward, middle, or Battery not back, depending on how you want included! the weight to be transferred ! 9238 Battery foam...
  • Page 41 :: Electronics Installation (cont.) - Bag L-LL RTR battery strap install! Twist the battery strap knob to the right until it clicks to lock the battery strap into place! :: Electronics Installation (cont.) - Bag L-LL You can run the battery wires above or below the belt cover!
  • Page 42 :: Front Bumper Assembly - Bag M 25190 91098 89224 M3x14mm Front M3x16mm shcs bumper shcs (RTR ONLY) brace 8564 M3x14mm shcs, aluminum (FT ONLY) 91098 Front bumper :: Front Bumper Assembly (cont.) - Bag M 8564 25190 M3x14mm M3x14mm shcs, aluminum shcs (FT ONLY)
  • Page 43 :: Rear Bumper Assembly - Bag N 91099 89218 Rear M3x8mm bumper washer 89430 8552 91100 M3x8mm Rear skid flap bhcs, aluminum plate (FT ONLY) 31532 89223 M3x8mm M3x8mm bhcs shcs (RTR ONLY) :: Rear Bumper Assembly (cont.) - Bag N 25620 M3x10mm 91099...
  • Page 44 :: Rear Bumper Assembly (cont.) - Bag N 89224 89454 M3x16mm M3x12mm shcs 89454 shcs M3x12mm shcs :: Chassis Brace Assembly - Bag N 89209 M3x18mm fhcs Remove the following (FT ONLY) 89211 parts for Chassis Brace M3x26mm installation! fhcs (FT ONLY) 91184 91184...
  • Page 45 :: Chassis Brace Assembly (cont.) - Bag N 89211 M3x26mm fhcs (FT ONLY) 89209 M3x18mm 91184 91184 fhcs Chassis brace Chassis (FT ONLY) ball joint brace (FT ONLY) (FT ONLY) Snap the ball joints into The two holes the larger hole of the shown should be chassis brace eyelets first.
  • Page 46 & knurl :: Body Body : Your SC10 4x4 FT kit comes with a clear polycarbonate body. You will need to prep the body before you paint it. Wash the inside thoroughly with warm water and liquid detergent. Dry the body using a clean, soft, 9876 lint-free cloth.
  • Page 47 :: Body (Cont.) 9876 SC10 Contender body (clear) Install nuts (FT ONLY) inside the body as shown Install screws outside of the body as shown :: Body (cont.) 91160 Body clip 1.3mm :: Final Adjustments Tips for Beginners: Place your car on a block or stand so that all 4 wheels are elevated and free to move. Remove the body. Turn the transmitter ON.

  • Page 48: Slipper Clutch

    Belt Tension: The SC10 4x4 belt is 5mm wide neoprene canvas backed. It will stretch slightly over its life, so the belt tensioners will need to be adjusted from the initial settings after about 20-30 minutes of running. By touch, the belt should feel tight when pressing on top surface between the pulleys, and you should only be able to depress the belt about 3mm or 1/8”.
  • Page 49 Front Clicker: For your first run with the SC10 4x4, we recommend to start with full-time 4wd until you get a feel for the truck. Then, you can try loosening the front clicker nut which will allow the clicker to operate.
  • Page 50 Most often, the best way to get your car handling right is to go to our website www.rc10.com and click on the links to Setup Sheets, then SC10 4x4 setups. Our team of professional drivers help develop these setups at National events.
  • Page 51 American Bumper Sticker 5436 60 Weight Silicone Shock Fluid 2oz. 3820 AE Logo Decal Sheet 5437 70 Weight Silicone Shock Fluid 2oz. 3834 AE Blue Embossed Logo Sticker 5438 47.5 Weight Silicone Shock Fluid 2oz. 91169 SC10 4X4 Decal Sheet...
  • Page 52 :: Steering 25215 M3 Locknut 25620 M3x10mm SHCS 91000 91002 25658 M3x6mm SHCS 91047 91048 89216 M4 Locknut 89216 91003 89218 M3x8mm Washer 91000 89224 M3x16mm SHCS 89454 M3x12mm SHCS 91002 91001 89528 Steel Washer 3x5.6mm 91000 4X4 Servo Saver/Bellcrank (RTR) 89528 91000 91001...
  • Page 53 :: Front Clip 9630 Aluminum Ballstud Washer 25190 M3x14mm SHCS 25191 M3x18mm SHCS 25215 M3 Locknut, Black 89224 25620 M3x10mm SHCS 89218 M3x8mm Washer 89224 M3x16mm SHCS 91004 89226 M3x26mm SHCS 25620 89218 89454 M3x12mm SHCS 91004 4X4 Inner Body Mounts 91014 4X4 Front Chassis Plate/Brace 91014...
  • Page 54 :: Front Gearbox 9630 Aluminum Ballstud Washer 25238 6x12x4 Bearings 31510 M2x4mm BHCS 89225 M3x24mm SHCS 91009 4X4 Front Gearbox 91010 4X4 Idler Gear 91011 4X4 Idler Gear Shaft (RTR) 91012 4X4 Top Shaft, Front (RTR) 91017 4X4 Top Shaft Spacers 91130 4X4 FT Lightweight Top Shaft, Front 91009...
  • Page 55 :: Belt, Center Belt Covers, Chassis Brace 8552 M3x8mm BHCS, aluminum 91093 8553 M3x8mm FHCS, aluminum 8553 9238 Foam Battery Spacers 25201 25201 M3x8mm FHCS 25620 M3x10mm SHCS 89209 91088 31532 M3x8mm BHCS 89209 M3x18mm FHCS 89218 8553 89211 M3x26mm FHCS 25201 8552 89218...
  • Page 56 :: Slipper Gear Assembly / Pinions 7485 FT V2 Slipper Hubs 91090 7486 V2 Slipper Spring/Washer 7732 M4x4mm Setscrew 91092 9603 Slipper Pads 25216 M3 Locknut w/Flange 91090 4X4 Slipper Hardware 91094 - 32P 91092 4X4 Inner Slipper Hub 91167 91097 - 48P 91094 Spur Gear, 32P-62T (Kit)
  • Page 57 :: Motor Plate, Rear Belt Cover 8561 FT M3x8mm SHCS 89528 31531 8564 FT M3x14mm SHCS 91091 25190 M3x14mm SHCS 91091 25658 M3x6mm SHCS 31402 4x8mm Bearings 91091 91159 31531 M3x6mm BHCS 89223 M3x8mm SHCS 89528 Steel Washer 3x5.6mm 31402 91013 91013 4X4 Pulley/Clicker Set...
  • Page 58 :: Rear Clip 6338 Antenna Tube 12” & Cap 89219 9630 Aluminum Ballstud Washer 25190 M3x14mm SHCS 6338 25191 M3x18mm SHCS 25215 M3 Locknut, Black 89219 M3x5mm Setscrew 89223 M3x8mm SHCS 6338 89226 M3x26mm SHCS 89227 M3x28mm SHCS 89454 M3x12mm SHCS 89227 91019 4X4 Rear Chassis Plate/Brace...
  • Page 59 :: Rear Bumper, Rear Shock Tower 6936 Washers, aluminum 8552 FT M3x8mm BHCS, aluminum 91024 8564 FT M3x14mm SHCS, aluminum 8565 FT M3x16mm SHCS, aluminum 25190 M3x14mm SHCS (RTR) 25217 25215 M3 Locknut, Black 91024 25217 M4 Locknut w/Flange (RTR) 31551 25612 M3 Locknut w/Flange...
  • Page 60 Ti HD Turnbuckle, 65mm 29150 XP RX/TX Charger 110v 91116 Ti HD Turnbuckle, 80mm 29166 XP DS1313 Digital Servo 91117 Ti HD Turnbuckle Set, SC10 4X4 29167 XP DS1015 Digital Servo 91118 Ti Nitride HD Ballstud 6mm 29209 Gear Set, DS1313 91119...
  • Page 61 :: Reedy Motors and ESC’s :: Reedy Batteries 550-SL Rotor AA Alkaline 1.5V (4) 550-SL Brushless Motor 3500kV AA 2700mAh NiMH 1.2V Rechargeable 550-SL Brushless Motor 4000kV LiPo 60C 4000mAh 7.4V (short) Sonic 540 6.5 Competition Brushless Motor LiPo 65C 6500mAh 3.7V Sonic 540 5.5 Competition Brushless Motor LiPo 65C 6500mAh 7.4V Sonic 540 Modified Rotor 12.2 x 25.0 (5.0)
  • Page 62 :: LRP Speed Controls :: LRP Brushless Combos LRP80705 SPX Zero LRP80673 SXX SS / 10.5T SS LRP80905 SXX Comp v.2 Speed Control LRP80674 SXX SS / 13.5T SS LRP80915 SXX Stock-Spec v.2 LRP80675 SXX SS / 17.5T SS LRP80955 SXX TC-Spec v.2 Speed Control LRP80677 SXX SS v.2 / 10.5T SS...
  • Page 63 90004 SC10 4x4 Kit 1673 FT 1/4” Hex Drive 2.5mm Ball End Tip 90005 SC10 4x4 Lucas Oil RTR (ready-to-run) 1674 FT 1/4” 5 Piece Power Tool Tips Set (5/64-2.0mm, 90006 SC10 4x4 Pro Comp RTR (ready-to-run) 1.5mm, 2.5mm, 5/64”- 2.0mm ball, 2.5mm ball)
  • Page 64 :: Notes...
  • Page 65 :: Notes...
  • Page 66 Driver: Date: SC10 4X4 FT Setup Track: Event: Conditions: Rev.3 Setup Sheet Setup Sheet Setup Sheet Front Suspension Rear Suspension Washers: Steering Rack Wheelbase: Standard Long Bumpsteer Option Medium Washers: Short Option Rack Forward Back Steering Anti Roll Bar: Stop Gap: Anti Roll Bar: 1.5mm...
  • Page 67 Driver: Date: SC10 4X4 RTR Setup Track: Event: Conditions: Rev.3 Setup Sheet Setup Sheet Setup Sheet Front Suspension Rear Suspension Washers: Steering Rack Wheelbase: Standard Long Bumpsteer Option Medium Washers: Short Option Rack Forward Back Steering Anti Roll Bar: Stop Gap: Anti Roll Bar: 1.5mm...
  • Page 68 :: Hardware - 1:1 Scale View Cap Head (shcs) Flat Head (fhcs) Button Head (bhcs) 2.5x5mm (91159) 2.5x6mm (4675) 2x4mm (31510) 2.5x8mm (89222) 3x8mm (25201) 3x4mm (91158) 3x8mm Aluminum (8553) 3x6mm (25658) 3x6mm (31531) 3x10mm (25202) 3x8mm (89223) 4-40x1/4” (6288) 3x8mm Aluminum (8561) 3x14mm (89208) 3x8mm (31532)
  • Page 69 Driver: Date: Track: Event: Conditions: Rev.3 Setup Sheet Setup Sheet Setup Sheet Front Suspension Rear Suspension Washers: Steering Rack Steering Rack Wheelbase: Wheelbase: Standard Long Bumpsteer Option Medium Medium Washers: Short Option Rack Forward Back Steering Anti Roll Bar: Stop Gap: Anti Roll Bar: 1.5mm 1.8mm...
