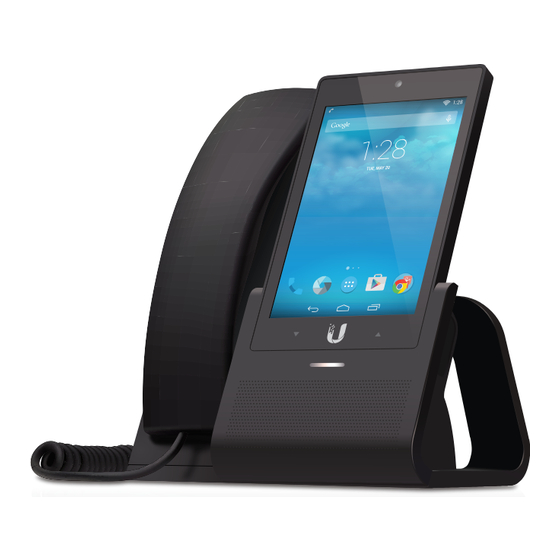

- Page 1 Enterprise VoIP Phone with 5" Touchscreen, Bluetooth, WiFi, and Built-In Camera Model: UVP-Pro...
-
Page 2: Package Contents
Introduction Thank you for purchasing the UniFi VoIP Phone Professional, ® model UVP-Pro. Designed to integrate easily into a UniFi network, the interface is based on the popular Android ™ platform for ease of use. This Quick Start Guide is designed to guide you through the installation, provide an overview of the interface, and also includes the warranty terms. -
Page 3: Hardware Overview
Hardware Overview Front Camera Touchscreen Volume Camera Built-in camera can be used for snapping photos for avatars or videoconferencing applications. Touchscreen The 5" (diagonal) touchscreen display is used for all interface navigation and dialing. Volume Use the volume arrows to adjust audio levels. The LED will illuminate when the device is first connected to a 48V power source. - Page 4 Back Ports PoE/LAN PoE/LAN PoE/LAN The PoE/LAN Ethernet port is 802.3at-compliant and is used to connect data and power to the phone. Connect this port to the same network as the UniFi Security Gateway VOIP port. The Ethernet port labeled PC is used for bridging. WARNING: Do not connect a powered Ethernet connection to the port labeled PC.
- Page 5 Side Ports Micro-USB Port The Micro-USB port is only intended for advanced users connecting the phone to a computer. Headset Jack 3.5 mm jack for optional wired stereo and microphone headsets.
- Page 6 Handset Mute button Mute Press the Mute button to mute the microphone on the handset. *640-00143-09* 640-00143-09...
-
Page 7: Hardware Installation
Hardware Installation The UniFi VoIP Phone Professional is designed for desktop placement. To connect the phone, perform the following steps: 1. Connect one end of an Ethernet cable to the wall jack that is connected to your 48V, 802.3at-compliant switch. 2. -
Page 8: Software Configuration
Software Configuration The UniFi VoIP Phone Professional is automatically detected by the UniFi Controller (4.6.x or above). Installing the UniFi Controller If you haven’t already installed the UniFi Controller software, you can download it at downloads.ubnt.com/unifi Adopting the Phone in the UniFi Controller 1. -
Page 9: Navigating The Interface
Navigating the Interface The Home screen contains a Google search widget, five ™ default icons at the bottom of the screen, and the three action bar icons. Google Search Widget Use the Google search widget to type or speak voice commands. Touch the bar to bring up a virtual keyboard, or touch the microphone icon to say a voice command. -
Page 10: Customizing The Home Screen
Action Bar Icons Icon Description Back Opens the previous screen you were working in, even if it was in a different app. Once you return to the Home screen, you can’t go back any further. Home Returns to the Home screen. Recent Apps Displays a list of recently used apps. -
Page 11: Making A Call
Making a Call Lift the handset to make a call and the dialer screen will appear. Use the touchscreen to enter the phone number. Use the Delete button to correct any mistakes. Press the Call button to make a call. KEYPAD CONTACTS Contacts... -
Page 12: Call Manager
Call Manager Connected Number Volume Slider Connection Status Connected Number Displays the extension or phone number that is being dialed or that is currently connected. Volume Slider Use the slider to increase or decrease the volume level. Connection Status Displays “Dialing” or the total elapsed time of the currently connected call. -
Page 13: Apps Screen
Apps Screen Pressing the Apps icon brings up the Apps screen. Touch an app icon to launch an app. Calculator Calendar Chrome Clock Calculator Chrome Clock Calendar Drive Email Gallery Gmail Downloads Email Gmail Drive Gallery Downloads Google+ Google Google Settings Google+ Google Settings Hangouts... -
Page 14: Specifications
Specifications UVP-Pro Dimensions 166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19") Weight 1.10 kg (2.43 lbs) 5" (Diagonal), 640 x 960, 231 ppi, Display Multi-Touch, Full Color Camera 1.0 MP (HD720p) Power: White, Glowing Dynamic Receiver 32 ohm/101 dB/30mW Handset Microphone Omnidirectional/-36 dB/2.2K ohm DSP Removing Ambient Noise... -
Page 15: Safety Notices
UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. -
Page 16: Warranty Conditions
Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. -
Page 17: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 18 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 19: Industry Canada
Industry Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that... - Page 20 Let utilisateurs devraient également noter que radars haute puissants sont alloués comme principaux utilisateurs (c’est-à-dire les utilisateurs de priorité) des bandes et 5650 à 5850 MHz et que ces radars pourraient causer des interférences ou dommages aux dispositifs LAN. Cet émetteur radio (IC:6545A-UVPPRO) a été...
- Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 24: Online Resources
©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Google, Android, Google Play and other marks are trademarks of Google Inc.
