Ubiquiti UniFi UVP Quick Start Manual
Enterprise voip phone
with 5" touchscreen
Hide thumbs
Also See for UniFi UVP:
- User manual (62 pages) ,
- Quick start manual (25 pages) ,
- Quick start manual (25 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Ubiquiti UniFi UVP
Summary of Contents for Ubiquiti UniFi UVP

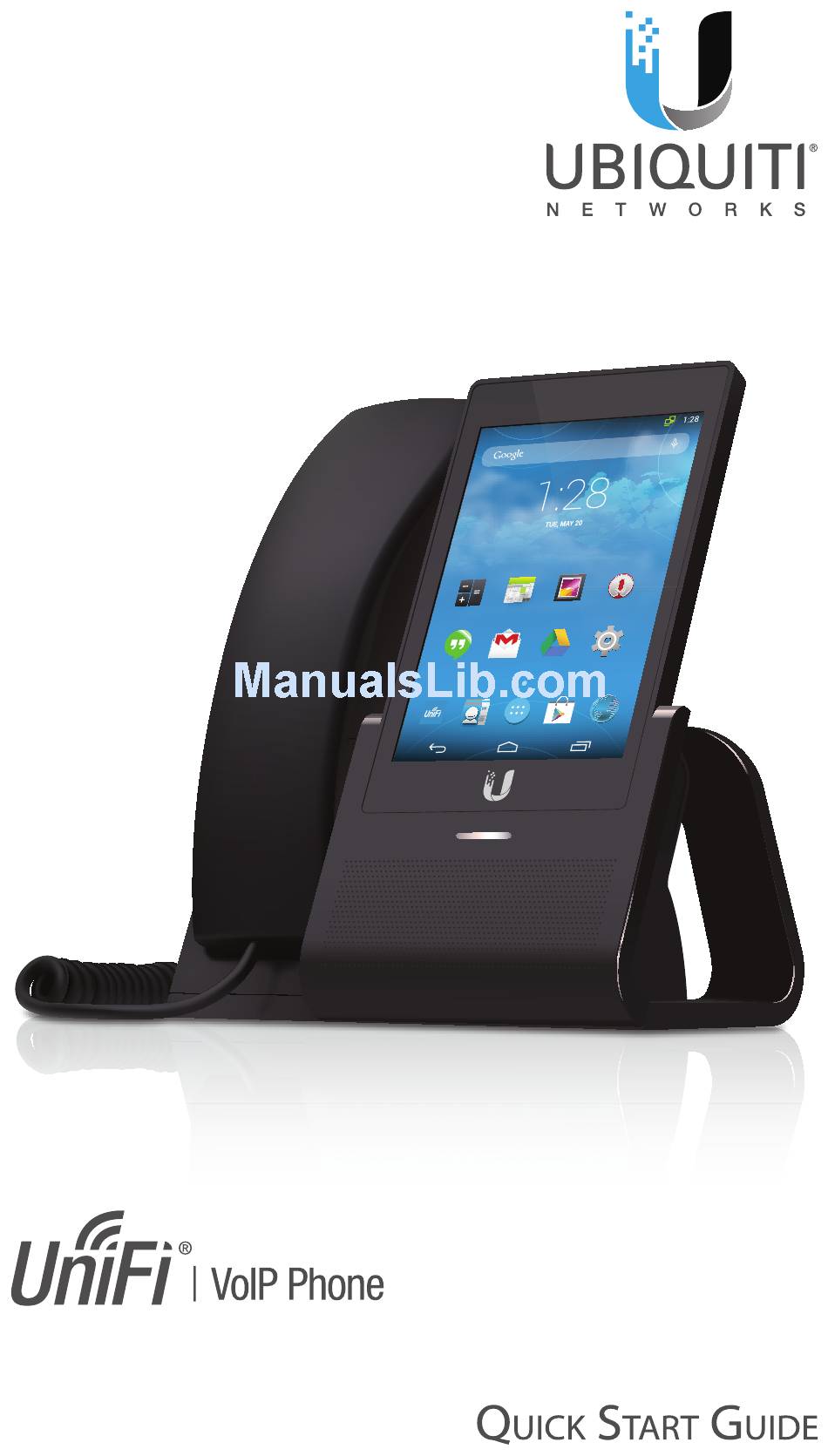

- Page 1 Calculator Calculator Calendar Calendar Gallery Gallery Sound Recorder Sound Recorder Hangouts Hangouts Gmail Gmail Drive Drive Settings Settings Enterprise VoIP Phone with 5" Touchscreen Model: UVP...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks UniFi VoIP ® ® Phone. The UniFi VoIP Phone is designed to integrate easily into a UniFi network. The phone interface is Android-based for ease of use. This Quick Start Guide is designed to guide you through the installation, provide an overview of the interface, and also includes the warranty terms. -
Page 3: Before You Begin
Before You Begin Remove the protective covering from the handset. Remove the protective film from the touchscreen. -
Page 4: Hardware Overview
Hardware Overview Front Touchscreen 1:28 1:28 TUE, MAY 20 Calculator Calendar Gallery Sound Recorder Calculator Calendar Gallery Sound Recorder Hangouts Hangouts Gmail Gmail Drive Drive Settings Settings Touchscreen The five inch (diagonal) touchscreen display is used for all interface navigation and dialing. The LED will illuminate when the device is first connected to a 48V power source. - Page 5 Back Ports Main/PoE Secondary Main/PoE Secondary Main/PoE The Main/PoE Ethernet port is 802.3af compliant and is used to connect data and power to the UniFi VoIP Phone. Connect this port to the same network as the UniFi Security Gateway VOIP port. Secondary This Secondary Ethernet port is used for bridging.
- Page 6 Side Ports Micro USB Port The Micro USB port is only intended for advanced users connecting the UniFi VoIP Phone to a computer. Headset Jack 3.5 mm jack for optional wired stereo and microphone headsets. *640-00115-05* 640-00115-05...
- Page 7 Handset Mute button Mute Press the Mute button to mute the microphone on the handset.
-
Page 8: Hardware Installation
Hardware Installation The UniFi VoIP Phone is designed for desktop placement. To connect the phone, peform the following instructions: 1. Connect one end of an Ethernet cable to the wall jack that is connected to your 48V 802.3af compliant switch. 2. -
Page 9: Software Configuration
Software Configuration The UniFi VoIP Phone is automatically detected by the UniFi Controller (4.x or above). Installing the UniFi Controller If you haven’t already installed the UniFi Controller software, it can be downloaded at downloads.ubnt.com/unifi Adopting the Phone in the UniFi Controller 1. -
Page 10: Navigating The Interface
Navigating the Interface The Home screen contains a Google search bar, five default icons at the bottom of the screen, and the three action bar icons. Google Search Bar Use the Google search bar to type or speak voice commands. Touch the bar to bring up a virtual keyboard, or touch the microphone icon to say a voice command. -
Page 11: Customizing The Home Screen
Action Bar Icons Icon Description Back Opens the previous screen you were working in, even if it was in a different app. Once you return to the Home screen, you can’t go back any further. Home Returns to the Home screen. Recent Apps Displays a list of recently used apps. -
Page 12: Making A Call
Making a Call Lift the handset to make a call and the dialer screen will appear. Use the touchscreen to enter the phone number. Use the Delete button to correct any mistakes. Press the Call button to make a call. Voicemail Button Call Button... -
Page 13: Call Manager
Call Manager 2:39 Volume Slider Connected 4089423085 Number 01:20 Connection Status SPEAKER MUTE HOLD KEYPAD TRANSFER End Call Connected Number Displays the extension or phone number that is being dialed or that is currently connected. Connection Status Shows the connection status as dialing or displays the amount of time the connected number has been engaged. -
Page 14: Apps Screen
Apps Screen Pressing the Apps icon brings up the Apps screen. Touch an app icon to launch an app. Browser Calendar Clock Browser Calculator Calendar Chrome Chrome Clock Calculator Email Downloads Gmail Downloads Email Gallery Drive Gallery Gmail Drive Hangouts Music Google Settings Hangouts... -
Page 15: Specifications
Specifications Dimensions 166 x 140 x 182.5 mm Weight 1100 g Display 5-inch (diagonal) 640 x 960, 231 ppi Multi-Touch Full Color Power: White, glowing Handset Dynamic Receiver 32 ohm/101 dB/30 mW Microphone Omni‑Directional/‑36 dB/2.2K ohm DSP removing ambient noise and acoustic echoes Power Input PoE 802.3.af (13W) Hands-Free... -
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. Electrical Safety Information Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 18 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 19: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... -
Page 20: Industry Canada
Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 23: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 24: Online Resources
©2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
