Summary of Contents for Ubiquiti UniFi VoIP Phone Touch

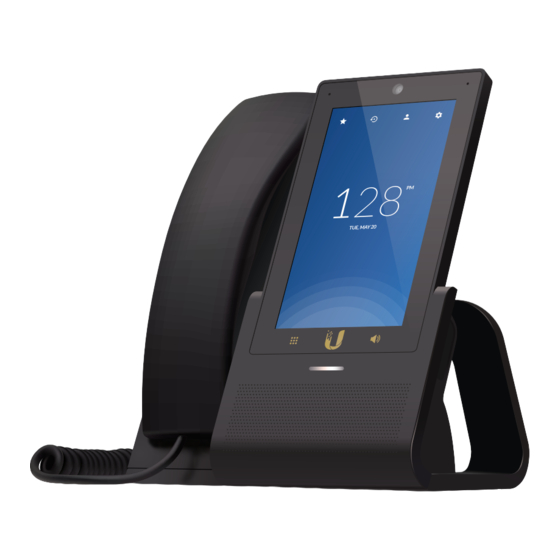

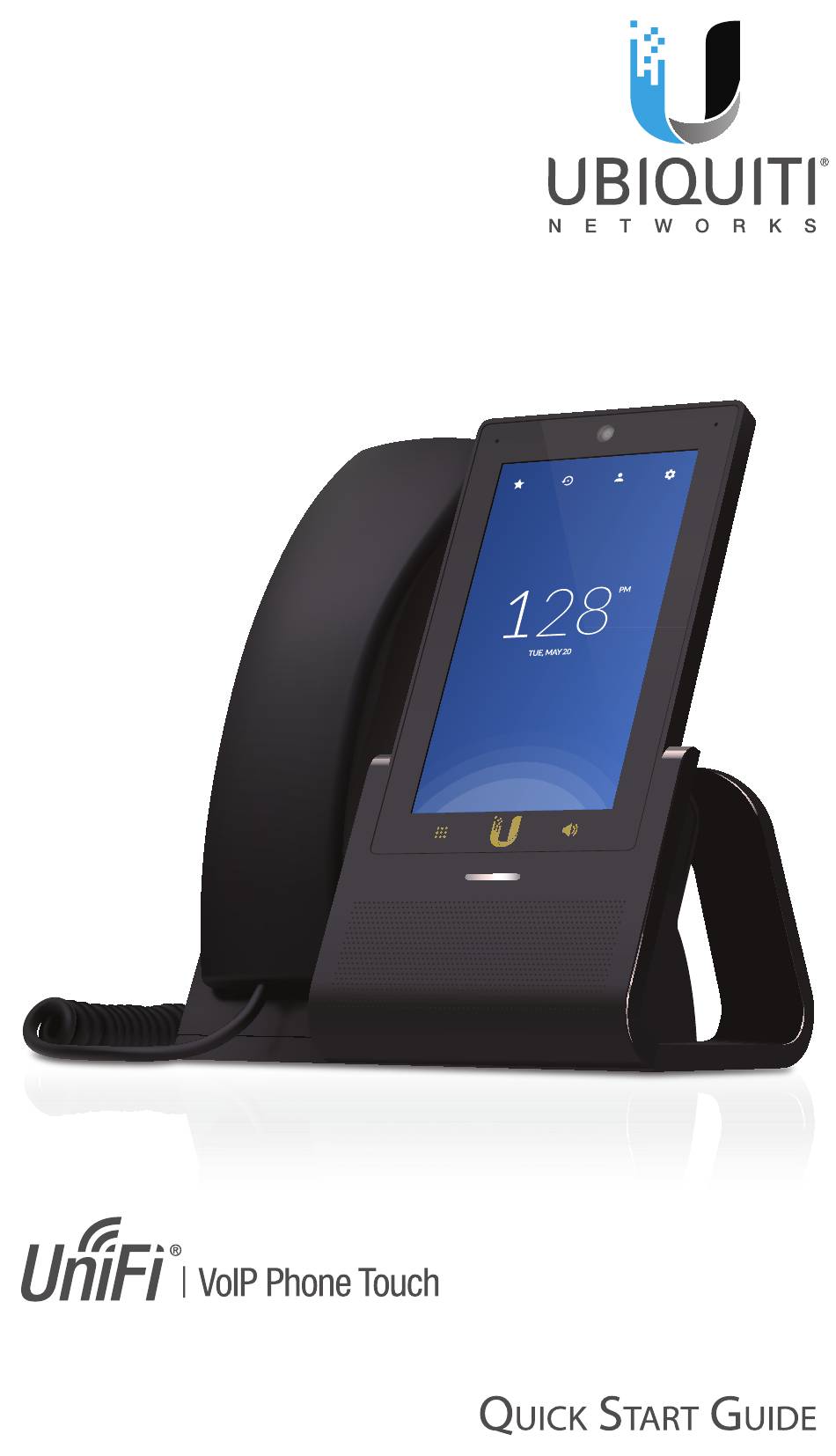

- Page 1 VoIP Phone with 5" HD LCD and Touch Model: UVP-Touch...
-
Page 2: Package Contents
Package Contents UniFi VoIP Phone Touch Installation Requirements • UniFi Switch or PoE+ (802.3at-compliant) switch • Third-Party SIP/PBX Provider Hardware Overview Front Camera Touchscreen Keypad Volume... -
Page 3: Back Ports
Camera Built-in camera can be used for snapping photos for avatars or videoconferencing applications. Touchscreen The touchscreen display is used for all interface navigation and dialing. Keypad Touch to display the numeric keypad. Volume Use the volume arrows to adjust audio levels. The LED will illuminate when the device is first connected to a 48V power source. -
Page 4: Side Ports
PoE/LAN The PoE/LAN Ethernet port is 802.3at-compliant and is used to connect data and power to the phone. Connect this port to the same network as the UniFi Security Gateway VOIP port. The Ethernet port labeled PC is used for bridging. WARNING: Do not connect a powered Ethernet connection to the port labeled PC. -
Page 5: Hardware Installation
Handset Mute button Mute Press the Mute button to mute the microphone on the handset. Hardware Installation... - Page 6 PoE/LAN Configuration Enter the SIP server address, username, and password. BACK Manual Setup Enter server details and credentials SIP SERVER USERNAME PASSWORD Continue...
-
Page 7: Making A Call
Making a Call Lift the handset to make a call and the keypad will appear. Use the Delete button to correct any mistakes. Press the Call button to make a call. Favorites Recents Contacts Delete Call... -
Page 8: Call Manager
Call Manager Connected Number Displays the extension or phone number that is being dialed or that is currently connected. Volume Slider Use the slider to increase or decrease the volume level. Connection Status Displays “Dialing” or the total elapsed time of the currently connected call. Mute Mute the microphone so that audio is not broadcast. -
Page 9: Specifications
Specifications UVP-Touch Dimensions 166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19") Weight 1.10 kg (2.43 lbs) Display 5" (Diagonal), 720 x 1280 HD, G+F Multi-Touch Camera 5M Pixel Power Status: White, Glowing Dynamic Receiver 16 ohm/SPL 116dB @1KHz, 30mW, 0m Handset Omnidirectional Electret Microphone/SNR 70... - Page 10 Emergency Service. IN NO EVENT SHALL UBIQUITI NETWORKS, ITS AFFILIATES, OFFICERS, DIRECTORS, EMPLOYEES, REPRESENTATIVES, AGENTS OR ANY OTHER THIRD‑PARTY PROVIDER OR VENDOR WHO MAY...
-
Page 11: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. Electrical Safety Information Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. - Page 12 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Page 13 ISED Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that...
-
Page 14: Rf Exposure Warning
RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé... - Page 15 English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
-
Page 16: Declaration Of Conformity
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja [Finnish] muiden sitä koskevien direktiivien 2014/53/EU. Français Par la présente UBIQUITI NETWORKS déclare que l’appareil UBIQUITI NETWORKS, est conforme aux exigences essentielles et aux autres [French] dispositions pertinentes des directives 2014/53/UE. Deutsch Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI... - Page 17 Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI NETWORKS készülék megfelel az alapvető követelményeknek és más [Hungarian] vonatkozó 2014/53/EU irányelvek rendelkezéseit. Íslenska Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana [Icelandic] 2014/53/ES. Italiano Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è...
-
Page 18: Online Resources
. u b n t . c o m ©2019 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
