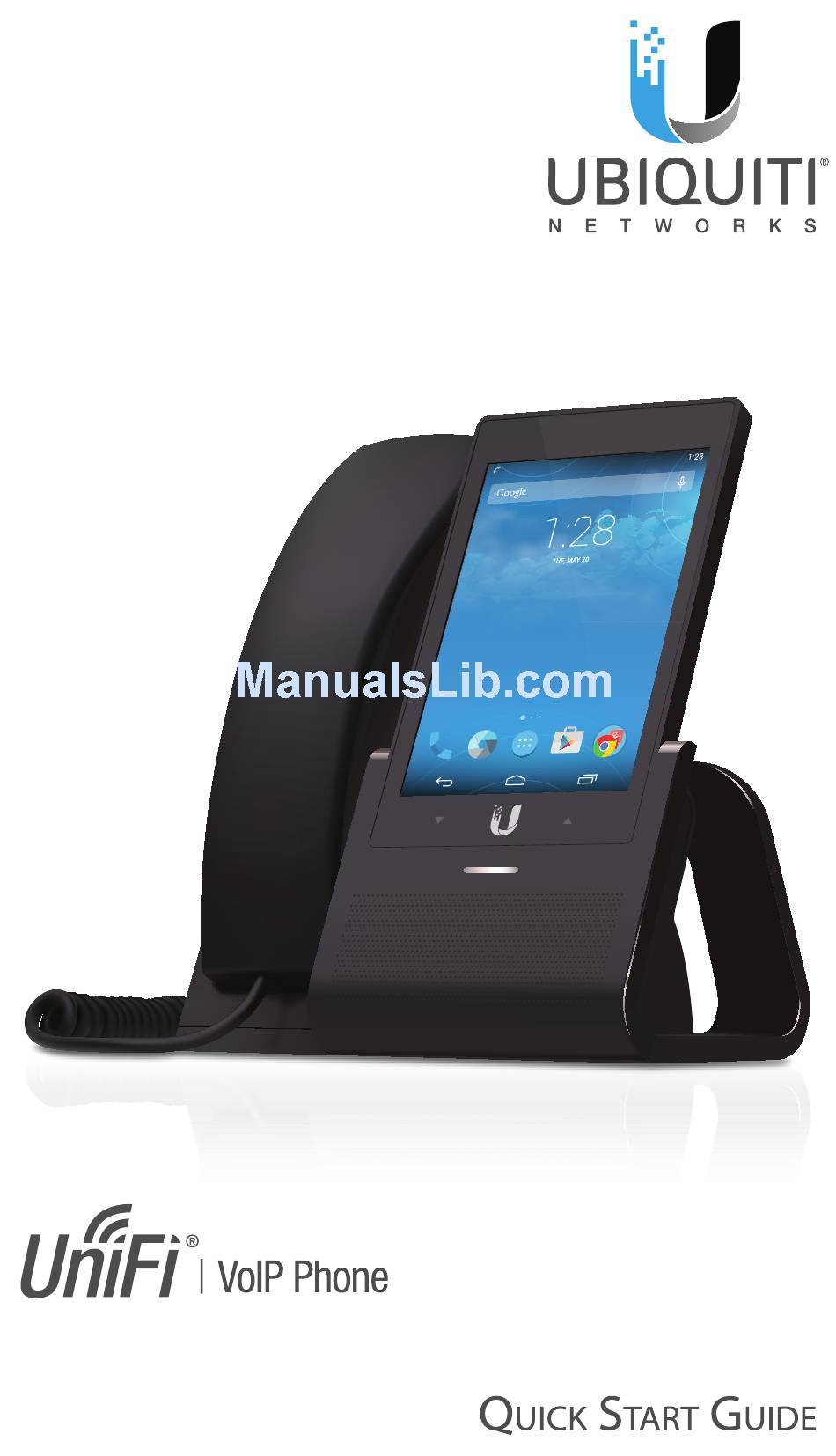

- Page 1 Enterprise VoIP Phone with 5" Touchscreen Model: UVP...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks UniFi VoIP ® ® Phone, model UVP. The phone interface is based on the popular Android platform for ease of use. This Quick Start ™ Guide is designed to guide you through installation and also includes warranty terms. -
Page 3: Hardware Overview
Hardware Overview Front Touchscreen Volume Touchscreen The 5" (diagonal) touchscreen display is used for all interface navigation and dialing. Volume Use the volume arrows to adjust audio levels. The LED will illuminate when the device is first connected to a 48V power source. Once the phone has started up, the LED will turn off. - Page 4 Back Ports PoE/LAN PoE/LAN PoE/LAN The PoE/LAN Ethernet port is 802.3at-compliant and is used to connect data and power to the phone. Connect this port to the same network as the UniFi Security Gateway VOIP port. The Ethernet port labeled PC is used for bridging. WARNING: Do not connect a powered Ethernet connection to the port labeled PC.
- Page 5 Side Ports Micro-USB Port The Micro-USB port is only intended for advanced users connecting the phone to a computer. Headset Jack 3.5 mm jack for optional wired stereo and microphone headsets.
- Page 6 Handset Mute button Mute Press the Mute button to mute the microphone on the handset. *640-00115-20* 640-00115-20...
-
Page 7: Hardware Installation
Hardware Installation The UniFi VoIP Phone is designed for desktop placement. To connect the phone, perform the following steps: 1. Connect one end of an Ethernet cable to the wall jack that is connected to your 48V, 802.3af-compliant switch. 2. Connect the other end of the Ethernet cable to the port labeled PoE/LAN on the UniFi VoIP Phone. -
Page 8: Software Configuration
Software Configuration The UniFi VoIP Phone is automatically detected by the UniFi Controller (4.6.x or above). Installing the UniFi Controller If you haven’t already installed the UniFi Controller software, you can download it at downloads.ubnt.com/unifi Adopting the Phone in the UniFi Controller 1. -
Page 9: Navigating The Interface
Navigating the Interface The Home screen contains a Google search widget, five ™ default icons at the bottom of the screen, and the three action bar icons. Google Search Widget ™ Use the Google search widget to type or speak voice ™... -
Page 10: Customizing The Home Screen
Action Bar Icons Icon Description Back Opens the previous screen you were working in, even if it was in a different app. Once you return to the Home screen, you can’t go back any further. Home Returns to the Home screen. Recent Apps Displays a list of recently used apps. -
Page 11: Making A Call
Making a Call Lift the handset to make a call and the dialer screen will appear. Use the touchscreen to enter the phone number. Use the Delete button to correct any mistakes. Press the Call button to make a call. KEYPAD CONTACTS Contacts... -
Page 12: Call Manager
Call Manager Connected Number Volume Slider Connection Status Connected Number Displays the extension or phone number that is being dialed or that is currently connected. Volume Slider Use the slider to increase or decrease the volume level. Connection Status Displays “Dialing” or the total elapsed time of the currently connected call. -
Page 13: Apps Screen
Apps Screen Pressing the Apps icon brings up the Apps screen. Touch an app icon to launch an app. Downloads Calendar Chrome Clock Downloads Calculator Calendar Chrome Calculator Clock Email Gallery Gmail Google Drive Email Gmail Google Gallery Drive Hangouts Google Settings Google+ Hangouts... -
Page 14: Specifications
Specifications Dimensions 166 x 140 x 182.5 mm (6.50 x 5.50 x 7.19") Weight 1.10 kg (2.43 lbs) Display 5" (Diagonal), 640 x 960, 231 ppi Multi-Touch, Full Color Power: White, Glowing Handset Dynamic Receiver 32 ohm/101 dB/30 mW Microphone Omnidirectional/-36 dB/2.2K ohm Echo Cancellation DSP removing Ambient Noise and Acoustic Echo... - Page 15 Emergency Service. IN NO EVENT SHALL UBIQUITI NETWORKS, ITS AFFILIATES, OFFICERS, DIRECTORS, EMPLOYEES, REPRESENTATIVES, AGENTS OR ANY OTHER THIRD-PARTY PROVIDER OR VENDOR WHO MAY...
-
Page 16: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. Electrical Safety Information Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. -
Page 17: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... -
Page 18: Limitation Of Liability
No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS. - Page 19 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 20: Industry Canada
Industry Canada CAN ICES-3(B)/NMB-3(B) To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that... - Page 21 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 22 Français La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.
-
Page 23: Declaration Of Conformity
[German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ. -
Page 24: Online Resources
