Perlick HC Series Installation & Operation Manual page 7

Single Door Undercounter Refrigeration Installation & Operation Manual

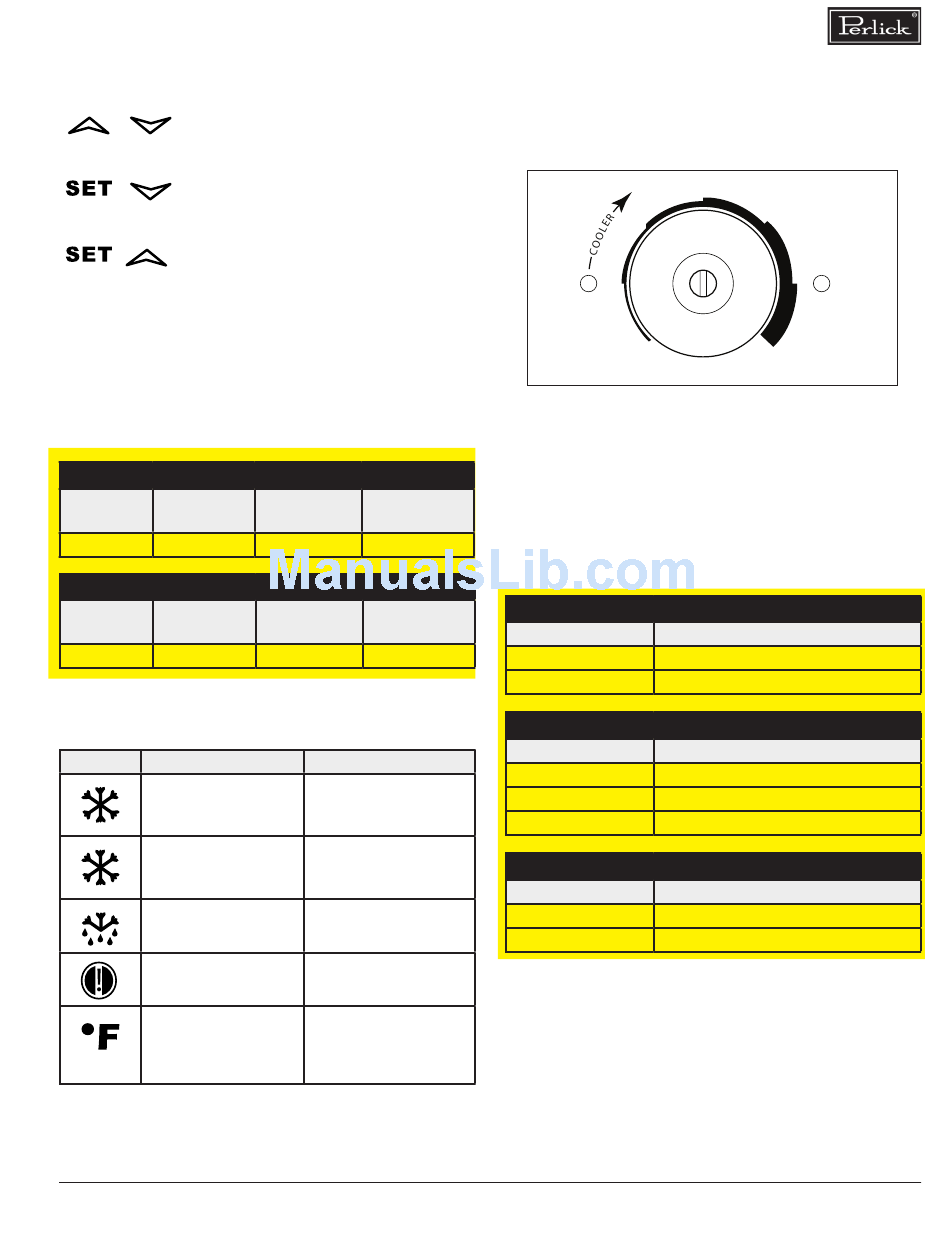

The following are the programming button key
combinations:
Press the UP and DOWN arrow
+
buttons to lock and unlock the
keyboard
Press the SET and DOWN arrow
+
buttons simultaneously to enter
programming mode.
Press the SET and UP arrow
+
buttons simultaneously to return
to room temperature display.
NOTE: Dependent on the model and configuration,
the controllers have been programmed to only allow
a temperature adjustment within a specified range.
See the chart below for the specified range allowed
for your unit.
HC24 24" C-Series
Model Min Temp
Set
HC24FS -° F
HB24 24" ADA Compliant Series
Model Min Temp
Set
HB24FB -° F
The following table describes LED functions:
LED Mode
ON
Flashing
ON
ON
Flashing
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Max Temp Factory Temp
Set Setpoint
-° F -° F
Max Temp Factory Temp
Set Setpoint
-° F -° F
Function
Compressor is on
Anti-short cycle
delay is on
Defrost is on
Alarm is on
You are in the process
of programming the unit
Electromechanical Temperature Control
Perlick Single Door Refrigerator, Beverage Center
and Wine Reserve units come standard with an
electromechanical temperature control (Figure 6).
3
2
1
Figure 6. Electromechanical Temperature Control
Electromechanical Controller Operating
Instructions
Use a straight slot screwdriver to adjust the dial
temperature control. The control is located at the top
rear panel of the cabinet. Approximate temperature
ranges are as follows:
HC24 24" C-Series
Model
HC24RS
HC24WS
HB24 24" ADA Compliant Series
Model
HB24RB
HB24BB
HB24WB
HD24 18" Shallow-Depth Series
Model
HD24RS
HD24WS
To Adjust to Colder Temperature: Turn the adjusting
screw clockwise (to the left)
To Adjust to Warmer Temperature: Turn the
adjusting screw counterclockwise (to the right)
To Turn Temperature Control OFF: Turn the
adjusting screw completelt counterclockwise to the
OFF position until a click is heard.
NOTE: Condenser fan motor turns off with compressor.
7
4
5
6
COLD
OFF
Factory Temp Setpoint
-° F
-° F
Factory Temp Setpoint
-° F
-° F
-° F
Factory Temp Setpoint
-° F
-° F
