Single Door Undercounter Refrigeration Installation & Operation Manual
Toe Plate Installation
Once the unit is secured in place, install the louvered
toe plate. Secure the plate by snapping the latch
into the latch catch on the unit as shown in Figure 3
(shown below).
Latch
Strike
Latch

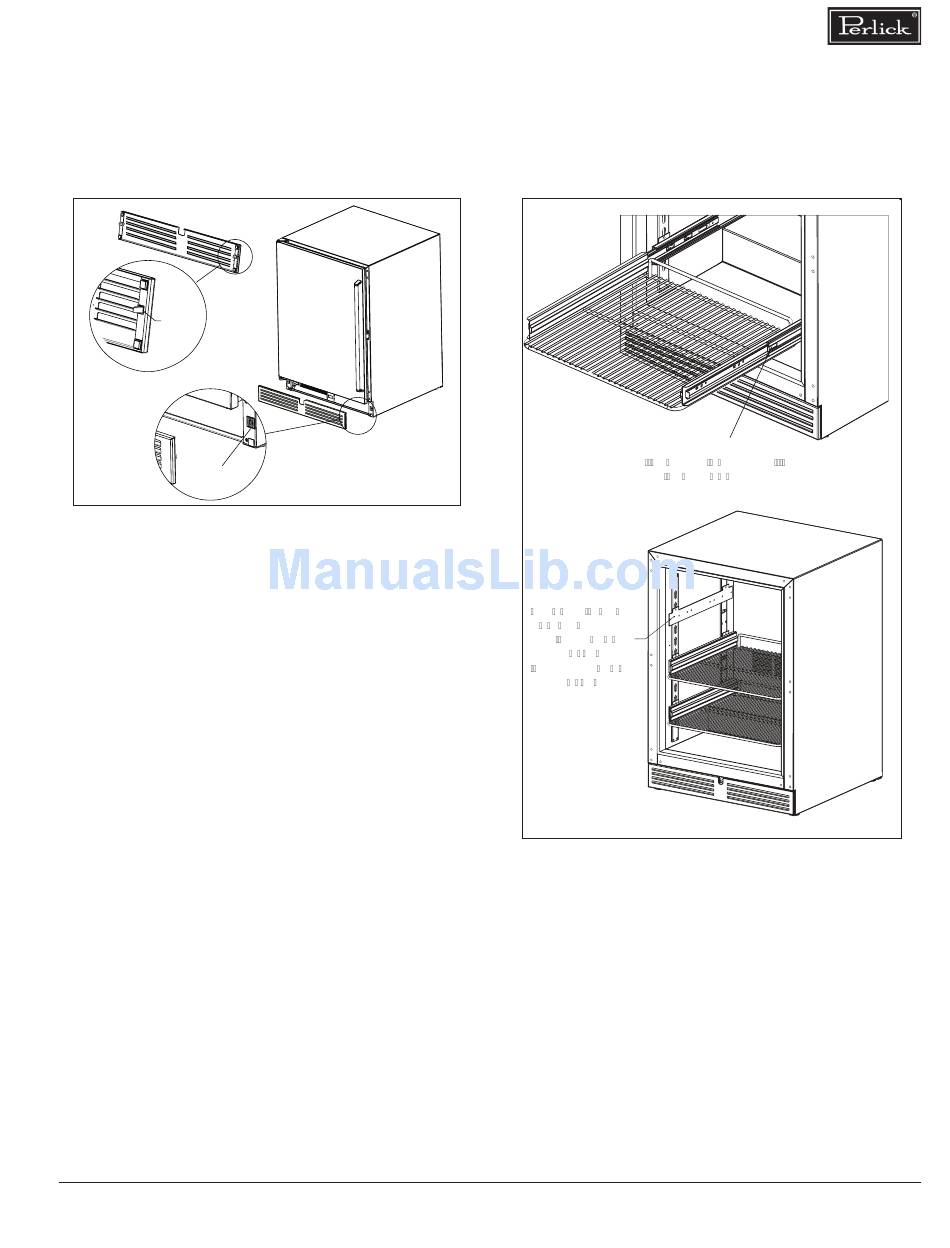

Figure 3. Toe Plate Installation
Shelving
Each cabinet comes with standard shelving (drawer
models excluded). All shelves are black vinyl-coated,
full-extension pullout shelves. Wine shelves have
stainless steel front.
Refrigerator - Two (2) refrigerator shelves
Freezer - Two (2) refrigerator shelves
Beverage Center - Two (2) wine shelves and one (1)
refrigerator shelf
Wine Reserve - Five (5) wine shelves
To adjust the shelving:
1). Pull the shelf out to its farthest position. Locate the
tabs in the middle of both extends, then press tabs
and pull shelf out of the unit. See Figure 4
2). Reposition each bracket separately. Grasp the
middle of the bracket, pull the front end up and out,
then forward to remove.
3). Place bracket at the desired position. Push the
rear hook into the rear key slot. Set front bracket on
the wall hook.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
4). Repeat for other bracket(s).
5). Push extenders completely into the unit. Align the
shelf grooves with the extenders and slide completely
into the unit.
Lift one tab on extender UP while
hin tab on o o ite extender
and ll o t to re o e
o re o e bra et
re o e helf lift front
of bra et to di en a e
the front e lot then
ll forward to di en a e
the rear e lot
Figure 4. Adjusting Shelf Position
5
