CTEK MXS 3.6 Quick Manual

MANUAL
CONGRATULATIONS
to the purchase of your new professional switch mode battery charger.

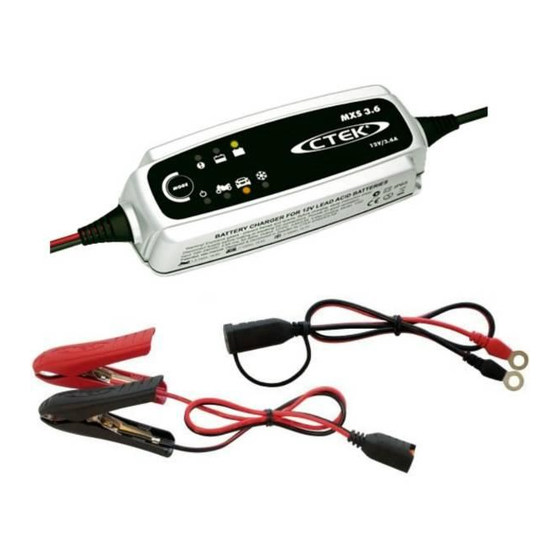

This charger is included in a series of professional chargers from CTEK SWEDEN AB and
represents the latest technology in battery charging.
SUPPLY PLUG*
CTEK COMFORT CONNECT
CHARGE CABLE
CTEK COMFORT CONNECT – eyelet M6
* Supply plugs may differ to suit your wall socket.
20015449F Manual MXS 3.6, EU. Print file 004.indd 3
MAINS CABLE
MXS 3.6
MODE
12V/0.8‒3.6A
CTEK COMFORT CONNECT – clamp
CHARGING
1. Connect the charger to the battery.
2. Connect the charger to the wall socket. The Standby lamp will indicate that the mains
cable is connected to the wall socket. The error lamp will indicate if the battery clamps
are incorrectly connected. The reverse polarity protection will ensure that the battery
or charger will not be damaged.
3. Press the MODE-button to select charging program.
4. Follow the indication lamps through the charging process.
The battery is fully charged when
5. Stop charging at any time by disconnecting the mains cable from the wall socket or by
setting the charger on Standby.
DESULPHATION
BULK
ABSORPTION
ERROR LAMP
MODE-
MODE
BUTTON
STANDBY SMALL
BATTERY
PROGRAM
is lit.
FULLY CHARGED
PULSE , MAINTENANCE CHARGING
NORMAL COLD
BATTERY WEATHER
PROGRAM PROGRAM
2011-06-29 14:50:04
MX
12V/0
EN • 3
