Summary of Contents for Ubiquiti Bullet M BM2-Ti

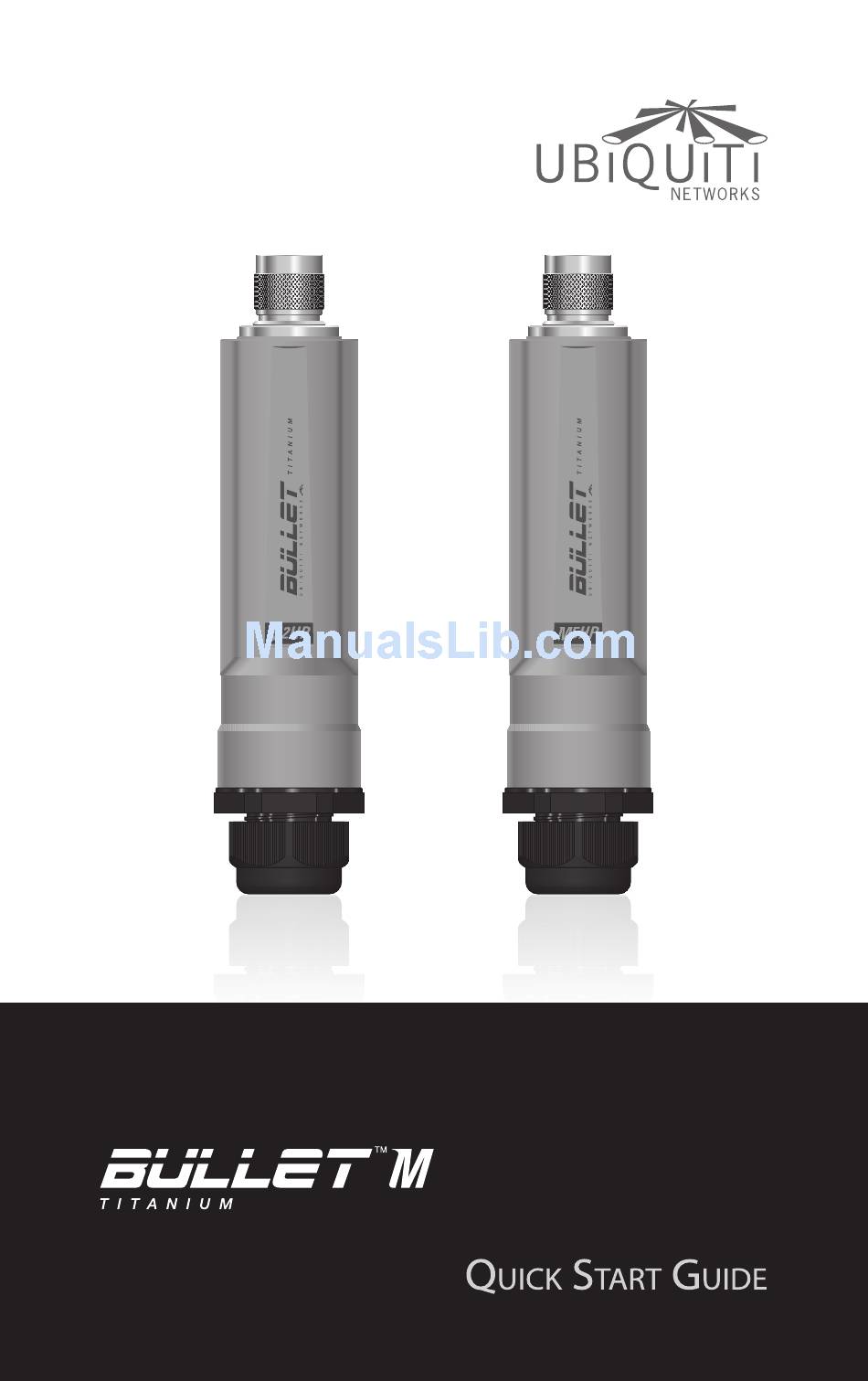

- Page 1 Zero-Variable Outdoor Radio Models: BM2-Ti, BM5-Ti...
-
Page 3: Package Contents
Introduction Introduction Thank you for purchasing the Bullet M Titanium. This Quick Start ™ Guide is designed to guide you through the installation of the Bullet M Titanium and show you how to access the configuration interface. This Quick Start Guide is for use with the following models: Model Operating Frequency... -
Page 4: Hardware Overview
Bullet™ M Titanium Quick Start Guide Hardware Overview N-Type Female Connector Bullet ™ M Titanium Radio Ethernet Port Rubber Washer Cable Gland Body Compression Seal Compression... -
Page 5: Hardware Installation
Hardware Installation Hardware Installation To install the Bullet M Titanium, perform the following steps: 1. Unscrew the Cable Gland Body and detach it from the Bullet M Titanium Radio. 2. Unscrew the Compression Nut and remove the Compression Seal from the Cable Gland Body. - Page 6 Bullet™ M Titanium Quick Start Guide 3. Slide the Compression Nut over the Ethernet cable with the threaded end facing the RJ-45 connector. Slip the Compression Seal around the cable. 4. Feed the Ethernet cable through the Cable Gland Body and seat the Compression Seal into the Cable Gland Body.
- Page 7 Hardware Installation 6. Securely screw the Cable Gland Body into the Bullet M Titanium. Tightly screw the cable gland so that the Rubber Washer seals the bottom of the Bullet M Titanium. 7. Tightly screw on the Compression Nut. Ensure the rubber is securely compressed and tightly sealed around the cable.
- Page 8 Bullet™ M Titanium Quick Start Guide 8. Connect the Bullet M Titanium to the antenna. Note: The Bullet M Titanium should be mounted vertically to reduce stress on the N-Type Connector. The N-Type Right Angle Adapter may be used as needed. 9.
- Page 9 Hardware Installation 10. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 11. Connect the power cord to the power port on the PoE Adapter. Connect the other end of the power cord to a power outlet. The hardware installation of your Bullet M Titanium is complete.
-
Page 10: Installer Compliance Responsibility
Bullet™ M Titanium Quick Start Guide Accessing the airOS Utility 1. Make sure that your host machine is connected to the LAN that is connected to the Bullet™ M Titanium. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100). -
Page 11: Specifications
Specifications Specifications Bullet™ M Titanium Specifications Dimensions 190 mm x 46 mm Weight 196 g Max. Power Consumption 7 Watts 6 Watts Power Supply 24V, 1A PoE Supply Included Power Method Passive PoE (Pairs 4, 5+; 7,8 return) Certifications CE, FCC, IC Operating Temperature -40 to +80°... -
Page 12: Electrical Safety Information
Products furnished hereunder shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS sole and exclusive... -
Page 13: Warranty Conditions
Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid). -
Page 14: Rf Exposure Warning
In the unlikely event a defect occurs, please work through the dealer or distributor from which this product was purchased. Compliance Changes or modifications not expressly approved by Ubiquiti Networks, Inc. could void the user’s authority to operate the equipment. - Page 15 Compliance L'émetteur-récepteur décrit ici émet de l'énergie de fréquence radio. Bien que le niveau de puissance est faible, l'énergie concentrée à partir d'une antenne directionnelle peut présenter un danger pour la santé. Ne pas permettre aux gens de se rapprocher de 157 cm à l'antenne lorsque l'émetteur est en marche.
-
Page 16: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. - Page 17 Declaration of Conformity Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB...
- Page 18 Pour en savoir plus, rendez-vous sur www.ubnt.com/toughcable Italiano Si consiglia di proteggere le reti dagli ambienti e dagli attacchi ESD più invasivi con il cavo Ethernet schermato-di tipo industriale di Ubiquiti Networks. Per ulteriori informazioni, visitare il sito Web www.ubnt.com/toughcable PH111511...
-
Page 20: Ubiquiti Networks Support
Email: support@ubnt.com Phone (9 a.m. - 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: www.ubnt.com/wiki Support Forum: www.ubnt.com/forum Downloads: www.ubnt.com/support/downloads w w w . u b n t . c o m © 2011 Ubiquiti Networks, Inc. All rights reserved.
