Summary of Contents for Ubiquiti airMAX Bullet Titanium BM2-Ti

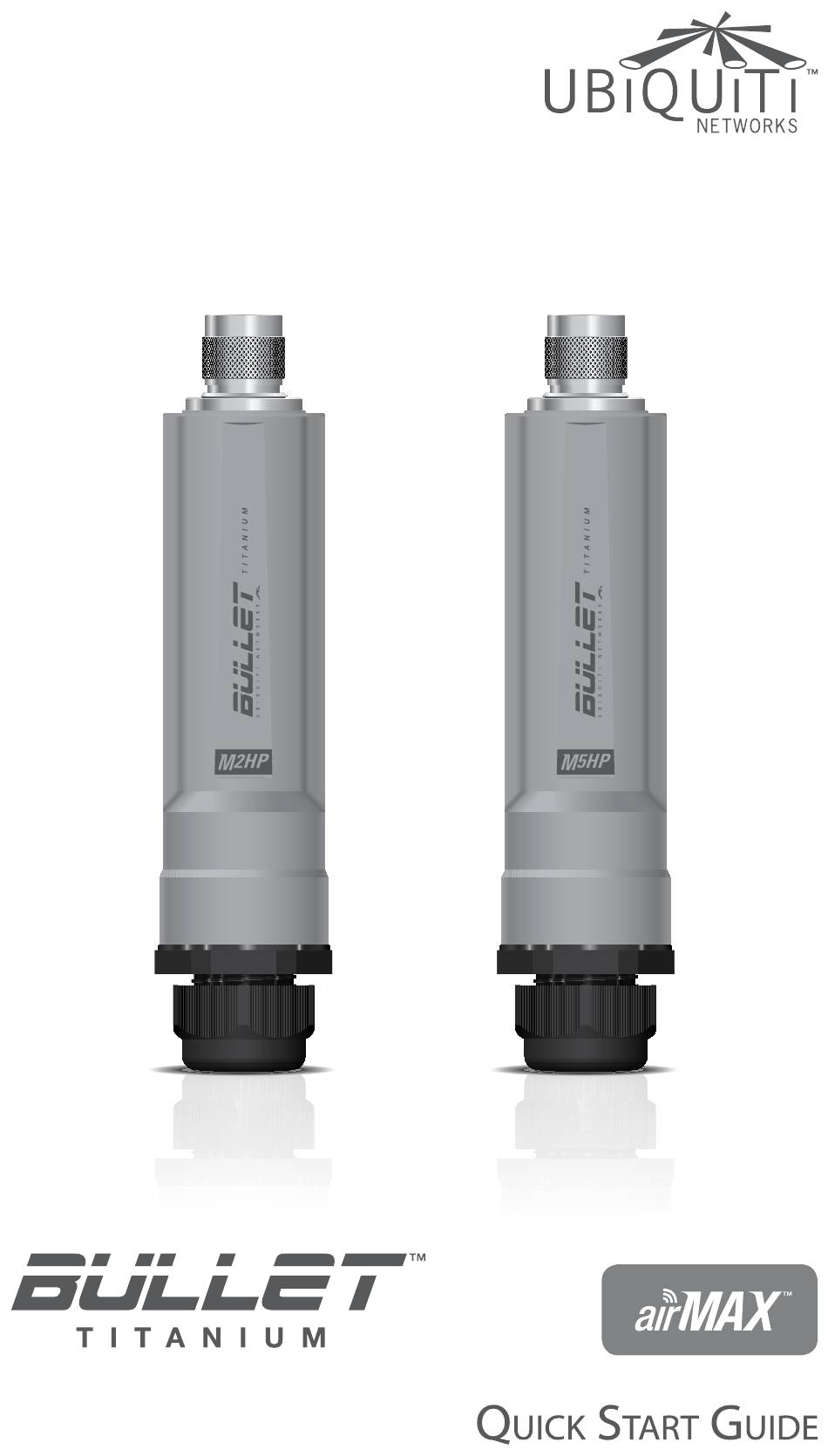

- Page 1 Zero-Variable Outdoor Radio Models: BM2-Ti, BM5-Ti...
-
Page 2: Package Contents
(24V, 1A) Products may be different from pictures and are subject to change without notice. TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable is designed for outdoor installations. -
Page 3: Hardware Overview
Hardware Overview N-Type Connector Bullet Titanium Radio Ethernet Port Rubber Washer Cable Gland Body Compression Seal Compression Nut... -
Page 4: Hardware Installation
Hardware Installation 1. Unscrew the Cable Gland Body and detach it from the Bullet Titanium Radio. 2. Unscrew the Compression Nut and remove the Compression Seal from the Cable Gland Body. - Page 5 3. Slide the Compression Nut over the Ethernet cable with the threaded end facing the RJ-45 connector. Slip the Compression Seal around the cable. 4. Feed the Ethernet cable through the Cable Gland Body and seat the Compression Seal into the Cable Gland Body. 5.
- Page 6 6. Securely screw the Cable Gland Body into the Bullet Titanium Radio so that the Rubber Washer seals the bottom of the radio. 7. Tightly screw on the Compression Nut. Ensure the Compression Seal is securely compressed and tightly sealed around the cable.
- Page 7 8. Connect the Bullet Titanium to the N-Type connector of the antenna. Note: The Bullet Titanium should be mounted vertically to reduce stress on the N-Type Connector. The N-Type Right Angle Adapter may be used as needed.
-
Page 8: Connecting Power Over Ethernet
Connecting Power over Ethernet 1. Connect the other end of the Ethernet cable from the Bullet Titanium to the Ethernet port labeled POE on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the Ethernet port labeled LAN on the PoE Adapter. 3. - Page 9 Accessing the airOS Utility 1. Make sure that your host machine is connected to the LAN that is connected to the Bullet Titanium. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
-
Page 10: Installer Compliance Responsibility
Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna Gain, Cable Loss, and Output Power fields are provided to the professional... -
Page 11: Specifications
Specifications Bullet Titanium Processor Atheros MIPS 24KC, 400 MHz Memory 32 MB SDRAM, 8 MB Flash Networking Interface (1) 10/100 Ethernet Port Dimensions 190 x 46 mm Weight 196 g Enclosure Powder Coated Aluminum Antenna Connector N-Type Connector Operating Frequency 2402 - 2462 MHz BM2-Ti Worldwide: 5170 - 5875 MHz... -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. -
Page 13: Limited Warranty
Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;... - Page 14 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
-
Page 15: Limitation Of Liability
Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING... - Page 16 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
-
Page 17: Industry Canada
Industry Canada This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. - Page 18 Cet appareil numérique de la classe A est confrome à la norme NMB-003 Canada. Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.
- Page 19 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 2.52 m from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
- Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
- Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 22: Declaration Of Conformity
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC. -
Page 23: Online Resources
NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. - Page 24 . u b n t . c o m © 2011-2013 Ubiquiti Networks, Inc. All rights reserved. P051713—720-00034-01...
