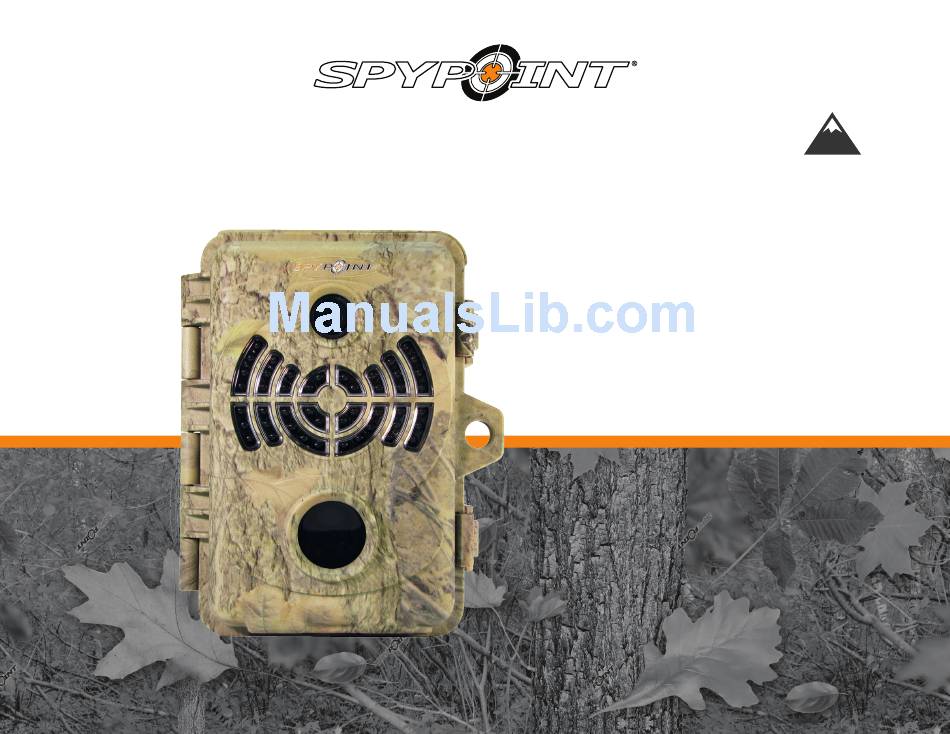

- Page 1 SURVEILLANCE CAMERA | ADVENTURE SERIES Adventure series · série USER MANUAL Models : BF-6 ECLYPSE BF-8 HD-7 v1.3...
- Page 2 This manual will guide you through all the features of your device GG Telecom’s mission is to offer products that are easy so that you will get optimal use out of your SPYPOINT product. to use, innovative, affordable and of exceptional quality.
-
Page 3: Table Of Contents
Table of contents Package contents ................. 4 Limited warranty 2N1 ....................27 Components ................. 5 BF-6, BF-8, HD-7, ECLYPSE, M8, C6 ..........28 Power ................... 7 Repair service 2N1 ....................27 Memory card ................9 BF-6, BF-8, HD-7, ECLYPSE, M8, C6 ..........28 Flash unit (2N1) ................9 "BUSY"... -
Page 4: Package Contents
Série Tiny test (située Série Live détection et clignote 60 secondes en mode ON/OFF (BF-6, 2N1, C6) Permet d’allumer ou d’éteindre la caméra. (selon le modèle de caméra) (pour caméra compatible avec en haut à PHOTO/VIDÉO pour permettre à l’utilisateur... -
Page 5: Components
Components Photo lens Slot for installation 12V power jack Access to the time TV OUT strap battery Invisible LEDs or Tripod mount USB port Infrared LEDs Cable lock hole Battery switch (HD-7) SD card slot Microphone Test light Configuration screen (BF-8, HD-7, ECLYPSE, DISTANCE dial (located at the top right... - Page 6 Components Photo lens Image sensor and infrared filter. Access to the time Battery that keeps the time and date in battery memory (p.8). Invisible LEDs or Night lighting to obtain black and white Infrared LEDs photos and videos. Battery switch Allows the user to select the power source ac- (HD-7) cording to the type of batteries used (p.7).
-
Page 7: Power
LITHIUM BATTERY PACK Rechargeable lithium battery pack, sold separately (LIT-09) or with a This SPYPOINT camera can be powered by a rechargeable lithium battery charger (LIT-C-8). pack LIT-09/LIT-C-8 (sold separately, p.16). This type of battery is less affected by cold temperatures and lasts up to 3 times longer than an alka- line batteries. - Page 8 Power TIME BATTERY The camera has a CR2032 lithium button battery which saves the time and date. To replace the battery: 1. Turn off the camera and remove it from the housing. 2. Using a flat screwdriver, push the tab to the right. 3.
-
Page 9: Memory Card
Memory card/ Flash unit/ "BUSY" LED MEMORY CARD INSERTING THE MEMORY CARD Insert an SD/SDHC memory card (up to 32 GB A memory card is required to record photos and videos. The camera is capacity) in the card slot. The card is inserted compatible with SD/SDHC memory cards, up to 32 GB capacity. -
Page 10: Settings
B: Number of recorded files C: Date/Time (MM/DD/YY, hh:mm) MODE D: Temperature (Celcius/Farenheit) (BF-6, BF-8, HD-7, M8, C6) PHOTO Allows the user to take photos. When the PHOTO mode is selected, the test 1. Turn OFF the camera. light in front of the camera will flash for 60 seconds to allow the user to 2. - Page 11 VIEW Here are the different moon phases that can be printed on photos. Allows the user to view or delete recorded photos and videos directly on a (BF-6, BF-8, HD-7, 2N1, M8, C6) television. New moon: 1. Turn OFF the camera.
-
Page 12: Distance
Settings DISTANCE Turn the DISTANCE dial to the right to increase the detection distance and the sensitivity of the detector. The camera is equipped with a detector sensitive to infrared. The system will only detect a heat source in motion. The greater the mass of heat, the more sensitive the system is. -
Page 13: Sound Recording (Bf-8, Hd-7, Eclypse, M8)
Sound recording (BF-8, HD-7, ECLYPSE, M8) The SPYPOINT camera offers the possibility to record sound in VIDEO mode. When the VIDEO mode is selected, the camera automatically re- cords the sound. Under the camera, you will find a rubber cap with the inscription MIC. -
Page 14: File Transfer To A Computer
File transfer to a computer To transfer photos/videos to a computer: 1. Turn OFF the camera. 2. Connect the USB cable (supplied) from the camera to a computer 3. The computer will detect the camera and install the driver automatically. 4. -
Page 15: Troubleshooting
RCA cable (p.11). • Install the latest update (available on appear on the • Verify if the memory card contains photos/videos. www.spypoint.com under SUPPORT section). television • Replace alkaline batteries or recharge the lithium The computer • Verify if the camera is properly connected to the battery pack. -
Page 16: Available Accessories
Available accessories obtain more information available accessories, www.spypoint.com. Here are the main accessories available: POWER Rechargeable 12V battery, Spare power cable charger & housing kit #PW-12FT, Spare 12 ft power #KIT-12V, 12-volt 7.0Ah rechar- cable, to connect the camera to geable battery with a water resis- the KIT-12V. - Page 17 Fits clearer shots. Compatible with all SPYPOINT 5.1" W x 6.9" H x REMOS technology. When used 2.6" D cameras (except TINY, with REMOS compatible cameras, LIVE, SMART and SUMMIT PRO the transmitter is not necessary.
-
Page 18: Specifications Bf-6
Specifications (BF-6) Photo recording Night time illumination system LEDs 35 LEDs Photo resolution 3 MP, 6 MP Type Invisible LEDs File format Exposure Automatic infrared level adjustment Multi-shot mode Up to 4 photos per detection Optical field of view Stamp (only on photos) Date, time, temperature (°C/°F) and... -
Page 19: Bf-8
Specifications (BF-8) Photo recording Detection system Motion sensor Photo resolution 3 MP, 8 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time, temperature (°C/°F) and *Additional 10 s setting... -
Page 20: Hd-7
Specifications (HD-7) Photo recording Detection system Motion sensor PIR on the camera Photo resolution 3 MP, 7 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time, temperature (°C/°F) and... -
Page 21: 2N1
Specifications (2N1) Photo recording Detection system Motion sensor Photo resolution 3 MP, 5 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time and moon phase *Additional 10 s setting... -
Page 22: Eclypse
Specifications (ECLYPSE) Photo recording Detection system Motion sensor Photo resolution 3 MP, 5 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time *Additional 10 s setting... - Page 23 Specifications (M8) Photo recording Detection system Motion sensor Photo resolution 3 MP, 8 MP Detection angle 30° File format Detection range Adjustable from 5 to 65 ft Multi-shot mode Up to 4 photos per detection Delay between each detection Adjustable from 1 to 15 min Stamp (only on photos) Date, time, temperature (°C/°F) and *Additional 10 s setting...
- Page 24 Specifications (C6) Photo recording Night time illumination system LEDs 46 LEDs Photo resolution 3 MP, 6 MP Type Invisible LEDs File format Exposure Automatic infrared level adjustment Multi-shot mode Up to 4 photos per detection Optical field of view Stamp (only on photos) Date, time, temperature (°C/°F) and moon phase 50°...
-
Page 25: Regulation
Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 99/5/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com. -
Page 26: Bf-6, Bf-8, Hd-7, Eclypse, M8
Hereby, GG Telecom declares that this camera is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com. -
Page 27: Limited Warranty
Limited warranty and repair This SPYPOINT product (2N1) designed by GG Telecom, is covered by a two INSTRUCTIONS FOR REPAIR SERVICE (2) years warranty on material and workmanship starting from the original GG Telecom will repair the product without charge or replace it at its discre- date of purchase. -
Page 28: Bf-6, Bf-8, Hd-7, Eclypse, M8, C6
Limited warranty and repair This SPYPOINT product designed by GG Telecom, is covered by a one (1) INSTRUCTIONS FOR REPAIR SERVICE year warranty on material and workmanship starting from the original GG Telecom will repair the product without charge or replace it at its discre- date of purchase.
