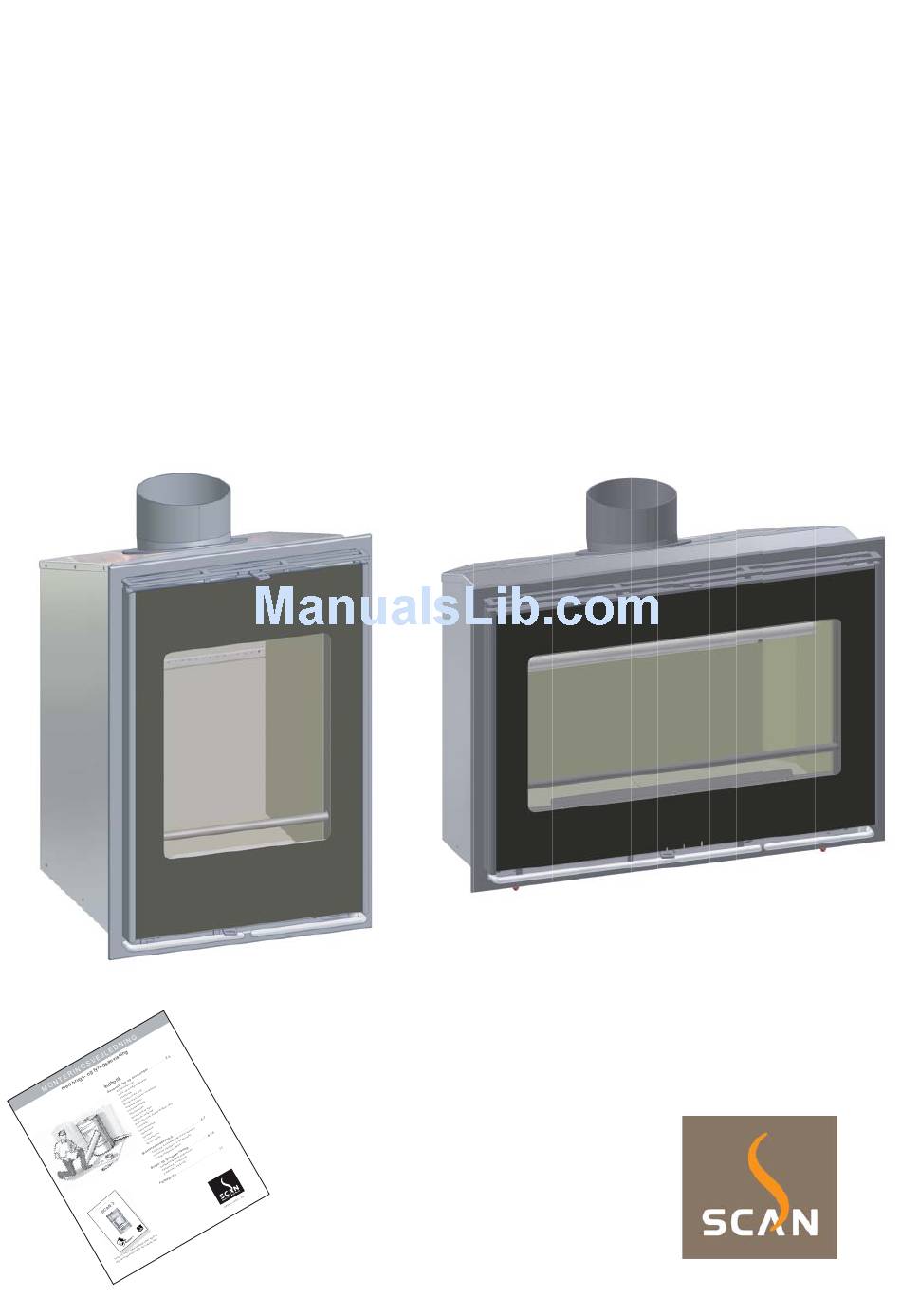

- Page 1 I N S T A L L A T I O N A N D U S E SCAN DSA 6 & DSA 7-5 Approved according to EN 13229 2005 This manual is accompanied by a pamphlet with General Instructions for Installation.
- Page 2 Take out the ceramic smoke deflector plates (see next page). Pull down the connection piece and place it in the flue outlet of the insert. Fasten it with the fittings and remount the ceramic smoke deflectors (D). Scan A/S abdicate responsibility for the installa- tion.
- Page 3 Clean combustion The SCAN DSA insert uses the "CB technique" (Clean-Burn) to ensure an optimally clean combustion. The extra combustion air is preheated and led into the combustion chamber close to the ceramic smoke deflector.
- Page 4 SCAN DSA 6 & 7-5 in an existing fireplace If you plan to insert a SCAN DSA 6 or 7-5 into an existing open fireplace, it is important that you keep a distance of 3-5 mm around the masonry. This will prevent cracks in the bricks, as metal expands when heated.
