- Page 1 REVAMP1680 Instruction manual...
- Page 3 REVAMP1680 Instruction manual REVAMP 1680 Manual...
-
Page 4: Safety First
PROFESSIONAL DIGITAL AMPLIFIER Safety First! • Caution! This professional device needs to be installed by qualified personnel only. • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton. - Page 5 REVAMP1680 Instruction manual • Set level controls on amplifiers all the way down during power- up to prevent speaker damage if there are high signal levels at the inputs. • Do not connect the inputs / outputs of amplifiers or consoles...

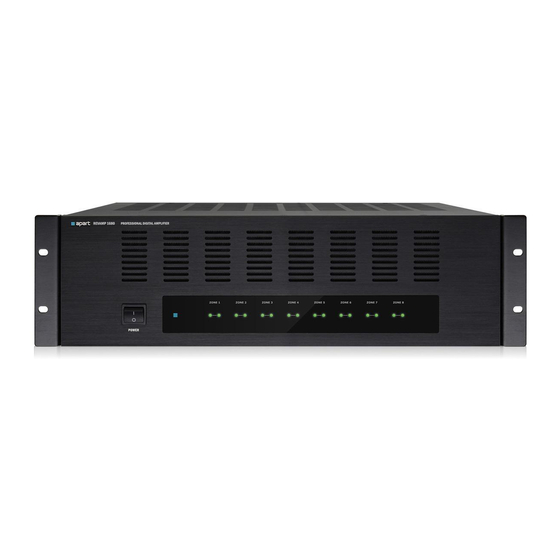

- Page 6 PROFESSIONAL DIGITAL AMPLIFIER Features • 3 rack units high • 16 output Channels powered with D-Class amplifiers • 16 x 80 watts (4 ohms) or 8x160 watts (8 ohms) sine wave output power • Very high channel seperation • 8 stereo output zones • High thermal efficiency • Highest possible damping factor • Dual analog power supply with toroidal power transformers...
- Page 7 REVAMP1680 Instruction manual • This unit has NOT been designed for use in mobile applications, such as: mobile discobars, mobile PA systems, Live bands, audio rental systems, … • Removable rack-ears This amplifier is equipped with 2 stereo bus inputs with passthrough.
- Page 8 PROFESSIONAL DIGITAL AMPLIFIER Connections (only output zone 1 is explained. Zone 2 – 8 are identical) 1. Bus 1 unbalanced stereo input on RCA connector: This input can be selected in any zone by setting switch “10” to the BUS 1 position.
- Page 9 REVAMP1680 Instruction manual 5. Power on mode selector: power on: the amplifier is powered on when the power switch at the front panel is switched to the on position. In the Audio Trig position, the amplifier will be switched on automatically when a strong audio signal is present at the input.
-
Page 10: Operation
PROFESSIONAL DIGITAL AMPLIFIER the unit here. 14. Mains fuse: when the fuse blows, replace only with the same type and fuse rating. 15. Mains voltage selector: set to 230 or 115VAC according to your local mains voltage. Operation Removable rack ears for 19” rack mounting. Power switch. - Page 11 REVAMP1680 Instruction manual !!!IMPORTANT!!! This amplifier relies on convection and active cooling. In normal situations, overheating will not occur. The unit can be built in a 19” inch rack system, but it is forbidden to block the ventilation holes provided. Therefore, it is absolutely necessary to allow at least one free rack space or 44 mm above and beneath the amplifier.
-
Page 12: Technical Specifications
PROFESSIONAL DIGITAL AMPLIFIER Technical specifications Dynamic program power per 100 W @ 4 Ω channel Sine wave power per channel 80 W @ 4 Ω Sine wave power bridge mode 160 W @ 8 Ω Load impedance minimum 4 Ω in stereo mode, minimum 8 Ω... - Page 13 REVAMP1680 Instruction manual Standby power consumption < 0.5 W Operating temperature range 0 to 40°C Mains operating voltage 230 VAC / 50 Hz – 115 VAC / 60 Hz Dimensions 483 x 132 x 411 ( including rack ears) Net weight 21.7 kg...
- Page 14 PROFESSIONAL DIGITAL AMPLIFIER...
- Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
