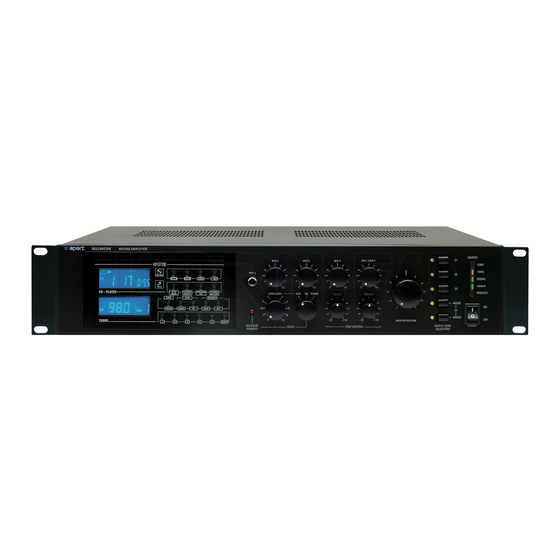

- Page 1 MIXING AMPLIFIERS MIXING AMPLIFIERS MA200CDR The MA200CDR is developed by Audioprof nv Lanteernhofstraat 90 BE-2100 Deurne BELGIUM OWNER’S MANUAL info@apart-audio.com www.apart-audio.com...
- Page 2 The MA200CDR is the all in one device to built larger professional industrial sound applications. You can insert an Hi-Q Pre Amp 1.5mV extra equalizer (such as the APart PXQ2215) into the signal path or add extra power amps (APart PA240P), using the VOLUME MIC 3...
- Page 3 MIXING AMPLIFIERS MIXING AMPLIFIERS Technical Specifications Front panel Frequency response 40Hz 25kHz (+1/-3 dB) Distortion <0,3% @ -6dB, 1kHz Bass control +/- 10dB, 100 Hz Treble control +/- 10dB, 10 kHz amplifier: better than 95dB, 22Hz 22kHz line: better than 80dB, 22Hz 22kHz mic: better than 65dB, 22Hz 22kHz LED indicators...
-
Page 4: Safety Information
From the “pre-amplifier out” you can also feed extra power amplifiers such as the Apart PA240P. Don't forget to feed the signal back into the “power amp in”. When you don't use this feature, the RCA bridge should be placed. - Page 5 These three inputs have been wired in parallel with the balanced jack input at the front. When you use the APart MICPAT or MICPACB paging microphones, connected directly to the DIN5 input, the signals fed into the line inputs are muted automatically while paging.
- Page 6 MIXING AMPLIFIERS MIXING AMPLIFIERS MA200CDR Tuner controls Inside Settings Inside settings should only be done by persons familiar to electrical equipment! RADIO AM / FM mode switch. Each time you press 0:55 this button, the tuner will switch from FM to AM and the other way round.
