- Page 1 REVAMP4240T Instruction manual...
- Page 3 REVAMP4240T Instruction manual REVAMP4240T Manual...
- Page 4 PROFESSIONAL POWER AMPLIFIER Safety First ! • Caution! This professional device needs to be installed by qualified personnel only. • Please check the carton box for any kind of damage on reception of the goods. In case of a damaged carton, please contact your dealer before opening the carton.
- Page 5 • This unit has NOT been designed for use in mobile applications, such as: mobile discobars, mobile PA systems, Live bands, audio rental systems, … • Before using the amplifier for the first time, check the impedance of your 100 volt speaker lines using the Apart IMPMET.

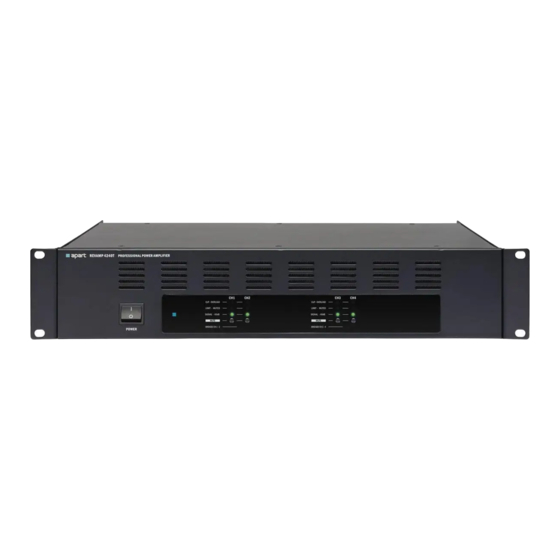

- Page 6 PROFESSIONAL POWER AMPLIFIER C A U T I O N TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK NO USER-SERVICEABLE PARTS INSIDE SERVICING ONLY FOR QUALIFIED PERSONNEL Features • 2 rack units high • High power Hypex® class-D power amplifier modules • Bridgeable 4 channel class-D amplifier • Output power: 4x220W@100V • Bridged output power: 2x480W@100V...
- Page 7 REVAMP4240T Instruction manual • Euroblock speaker connectors with multiple taps: 35 volt, 50 volt, 70 volt, 100 volt and 4 ohm • Extended speaker and amp protection circuits: over current protect, over temperature protect • Versatile LED status indicators • This unit has NOT been designed for use in mobile applications, such as: mobile discobars, mobile PA systems, Live bands, audio rental systems …...
- Page 8 PROFESSIONAL POWER AMPLIFIER Connections 11 12 Only channel 1 and 2 are explained. Channel 3 and 4 are functionally identical to 1 and 2. 1. Channel 2 overload led: when this led lights up, you are overloading the input. Lower the input signal immediately to prevent the amplifier from shutting down.
- Page 9 REVAMP4240T Instruction manual 4. Channel 1 unbalanced input and link cinch connector: connect the line level input signal for channel 1 here. Line level is 0 dBV. Input and link connector are internally connected 1 on 1. This connector is also used in bridge mode.
-
Page 10: Operation
PROFESSIONAL POWER AMPLIFIER 14. Mains voltage inlet: connect the mains power cord here. Operation 1. Removable rack ears for 19 rack mounting. 2. Power switch. 3. Power led. 4. Channel 1 and 2 mute buttons and multifunctional led display. 5. Channel 3 and 4 mute buttons and multifunctional led display. - Page 11 REVAMP4240T Instruction manual • Clip – overload led indicates that the amplifier is overloaded or clipping: reduce the incoming signal immediately to avoid overloads or clipping and eventually amplifier shutdown. • Limit – muted indicates that the internal limiter is active or that the channel is muted by pushing the mute button.
- Page 12 Use it in fixed installations only. Before using the amplifier for the first time, check the impedance of your 100 volt speaker lines using the Apart IMPMET: temporarily disconnect the speaker line from the amplifier and measure the speaker line. Impedance @ 100 volt must be 42 ohms or more. This...
- Page 13 REVAMP4240T Instruction manual 110 VAC operation: it is possible to operate the unit at 110 (115) VAC. Therefore, open the unit and set a wire jumper on the connector for 110 VAC operation.
-
Page 14: Technical Specifications
PROFESSIONAL POWER AMPLIFIER Technical specifications Output power 4x240 W/100 volt Load impedance 42 ohms / 100 volts; 21 ohms / 70 volts; 10.5 ohms / 50 volts; 5.1 ohms /35 volts; 4 ohms / 4 ohms Input connections 4 x unbalanced on RCA with passthrough + 4 x balanced on euroblock Input sensitivity... - Page 16 Audioprof nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
