Page 4: Important Safety Instructions
DIGITAL POWER AMPLIFIER IMPORTANT SAFETY INSTRUCTIONS Read these instructions Keep these instructions Pay attention to all warnings Follow all instructions This professional device needs to be installed by qualified personnel only. Danger: Exposure to high sound levels may cause a permanent hearing loss. - Page 5 REVAMP8250 Instruction manual 15. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 16. Do not defeat the safety purpose of the polarized or grounding plug. Always use the device with a grounded mains power plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
- Page 6 DIGITAL POWER AMPLIFIER 24. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. - Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside.

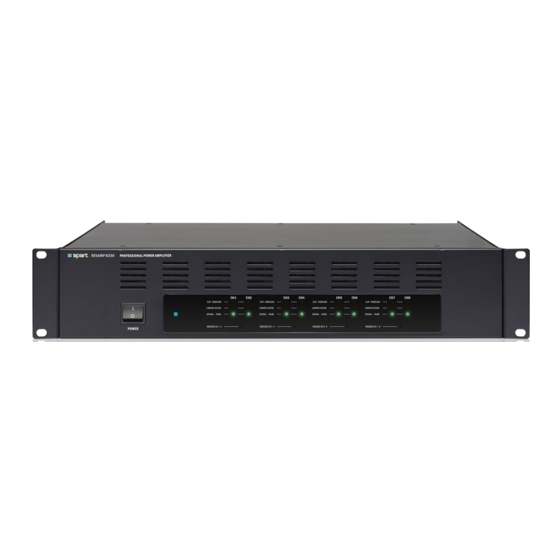

- Page 7 REVAMP8250 Instruction manual Features • 19”, 2 rack units high. • 8 output channels powered with class-D amplifiers. • 8 x 250 watts (4 ohms) or 4 x 500 watts (8 ohms) RMS. • Switching mode power supply. • Intelligent thermal power limiting circuit: limits the output power to a safe limit whenever a thermal overload occurs.
- Page 8 DIGITAL POWER AMPLIFIER Connections Only channel 1 and 2 are explained. Channels 3 to 8 are functionally identical to 1 and 2. 1. Channel 2 unbalanced input and link RCA connector: connect the line level input signal for channel 2 here. Line level is 0 dBV. Input and link RCA connector are internally connected 1 to 1.
- Page 9 REVAMP8250 Instruction manual 5. Channel 2 balanced input on 3 pole euroblock connector: connect the line level input signal for channel 2 here. Line level is 0 dBV. 6. Channel 2 input attenuator setting: Adjust the input attenuator to the output level of your source. Make sure to avoid the clip led lighting up at the strongest input peak level.
-
Page 10: Operation
DIGITAL POWER AMPLIFIER Operation 1. Removable rack ears for 19” rack mounting. 2. Power switch. 3. Power led 4. Channel 1 – 8 multifunctional led displays. • Clip – overload led (Red) indicates that the amplifier is overloaded or clipping: reduce the incoming signal immediately to avoid clipping and eventually amplifier shutdown. -
Page 11: Important Notice
REVAMP8250 Instruction manual Important notice This amplifier relies on active cooling. In normal situations, overheating will not occur. The unit can be built in a 19” inch rack system, but it is forbidden to block the ventilation holes provided. Therefore, it is absolutely necessary to allow at least one free rack space or 44 mm above and beneath the amplifier. -
Page 12: Technical Specifications
DIGITAL POWER AMPLIFIER Technical specifications Dynamic program power at 4 ohms 350 watts Output power RMS at 4 ohms 250 watts Output power RMS at 8 ohms 500 watts (bridged) minimum 4 Ω in stereo mode, Load impedance minimum 8 Ω in bridge mode Unbalanced on RCA and balanced Input connections on euroblock... - Page 13 REVAMP8250 Instruction manual Power supply switching mode power supply Cooling active cooling front to back Max power consumption 2200 watts Operating temperature range 0 to 40°C Mains operating voltage 115-230 VAC (50 Hz - 60 Hz) 483 x 88 x 332 mm...
- Page 14 DIGITAL POWER AMPLIFIER...
- Page 16 Apart Audio nv Industriepark Brechtsebaan 8 bus 1 2900 Schoten - Belgium Company names, product names and trademarks are property of their respective owners. Apart-Audio specifications are subject to change without notice.
