- Page 1 MANUAL PA8250 INFO@APART-AUDIO.COM...
-

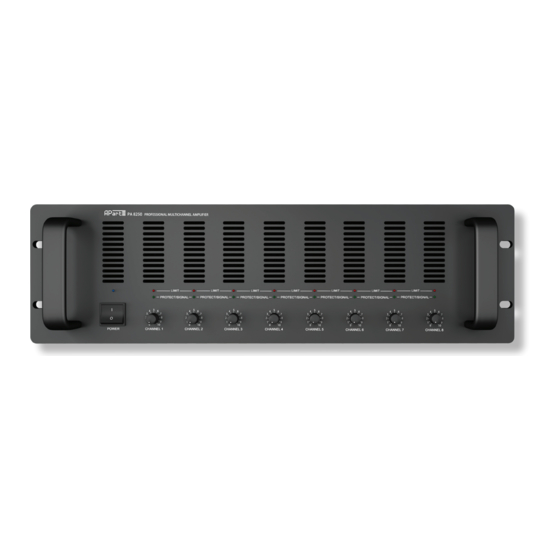

Page 2: Front Panel
This led lights up red when the internal protection circuitry is active, due to an overload or a short circuit. When powering up the PA8250, these leds are red during a few seconds, this is to avoid turn on plops and clicks. -
Page 3: Back Panel
In bridge mode, minimum load impedance is 8Ω! Connect the speaker – terminal to the even numbered output channel’s + connector and the speaker + terminal to the odd numbered output channel’s + terminal. INFO@APART-AUDIO.COM... -
Page 4: Rear Panel
In bridge mode, only the input to the odd numbered channel will be heard. Only the levelcontroller and highpass filter switch of the odd numbered channel are in use. Also take a look at the signal flow chart on top of the amplifier for more clarity. Block diagram WWW.APART-AUDIO.COM... -
Page 5: Technical Specifications
10A SLOW POwEr cOnSumPTIOn IdLE: 25 vA fuLL PrOgrAm POwEr 8 cHAnnELS: 1600 vA mAx PEAk POwEr: 3400 vA dImEnSIOnS HEIgHT x wIdTH x dEPTH 132 x 483 x 484 mm wEIgHT nET: 25,3 kg (grOSS SHIPPIng wEIgHT 29,8 kg) INFO@APART-AUDIO.COM... - Page 6 ANY SUGGESTION? They are well appreciated and eventually rewarded! Send your ideas or suggestions to suggestions@apart-audio.com PA8250 is developed by Audioprof nv Lanteernhofstraat 90 BE-2100 Deurne bELgIum WWW.APART-AUDIO.COM...
