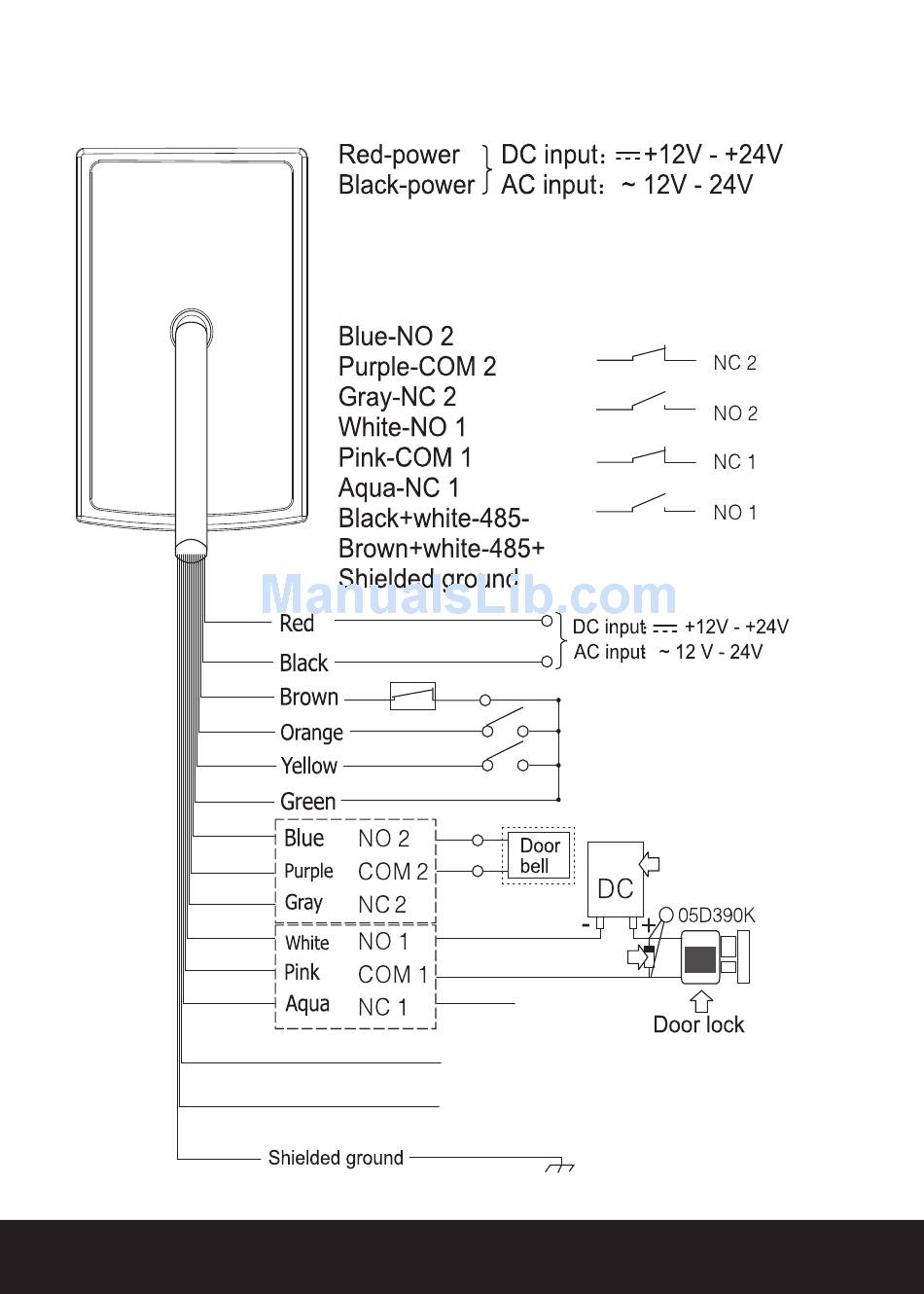

Wiring Diagram and connections

4
Brown-door status detecting - reed switch
Orange-push to exit button - Zone 1
Yellow-push to exit button - Zone 2
Green - COM
Not Used
Not Used
Door contact - reed switch
Exit button - Zone 1
Exit button - Zone 2
COM
Additional power
supply for lock
