- Page 1 U S ER MA NUAL...

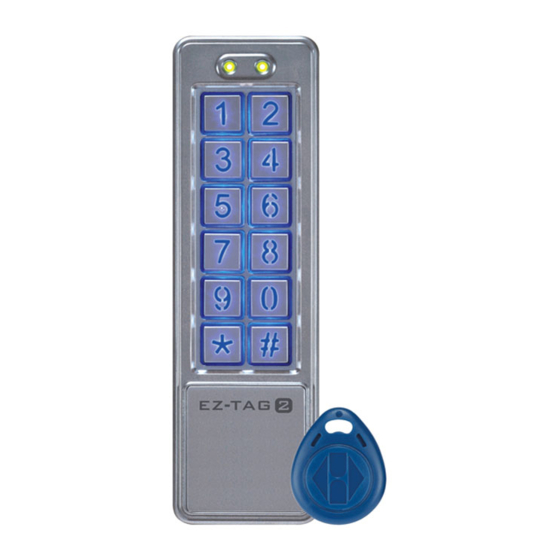

- Page 2 Green break glass emergency release (EVEBG)* *Note:- for use with Magnetic lock only Functions of the EZ-TAG2 The EZ-TAG2 can control up to two doors by use of Tags or pin numbers Selectable Pin number length 2, 3, 4, 5 and 6 digits (per zone).
- Page 3 The EZ-TAG2 must not be located within 2 meters of any reader/keypad type devices. The EZ-TAG2 must not be sited back to back with other reader/keypad type devices. Site the EZ-TAG2 within easy access to the door/doors to be controlled Recommended mounting height 1.2m.
- Page 4 Wiring Diagram and connections Brown-door status detecting - reed switch Orange-push to exit button - Zone 1 Yellow-push to exit button - Zone 2 Green - COM Door contact - reed switch Exit button - Zone 1 Exit button - Zone 2 Additional power supply for lock Not Used...
- Page 5 Wiring Diagram for Maglock EV-BPS 240vAC INPUT Push button E.lock DC out Timer GND P.B Exit Button 0-20 secs Capacitor Maglock 0.47uF 100v Emergency door release Wiring Diagram for Yale Release EV-BPS 240vAC INPUT Push button E.lock DC out Timer GND P.B Exit Button 0-20...
- Page 6 Brief details of programming Access of programming mode. There are two locations for entering pin or Tags (zone 1 and zone 2). Zone 1 has 1000 locations available 000-999. Zone 2 has 10 locations available 00-09. Programme pin numbers and tags. Select the lock release time (00-99 seconds) How to escape programming mode.
- Page 7 Programming one Tag to Zone 1 Note:- Do not have Tags in your hand or close by when pressing keys. Zone 1 has 1000 locations available from 000 to 999. 1. Enter programming mode A Long bleep will be heard and the green power LED will turn orange. 2.
- Page 8 Setting the Unlock Time for Zone 1 1. Enter programming mode A Long bleep will be heard and the green power LED will turn orange. 2. Press the key then the 1 key the orange LED will start to flash 3.
- Page 9 The green programming LED (top left of keypad) will illuminate. Note:- if this location already has a pin number or Tag programmed the LED will turn red. To delete this location press the star key twice. The LED will now turn green.
- Page 10 Deleting a Tag/Pin number from Zone1 1. Enter programming mode A Long bleep will be heard and the green power LED will turn orange. 2. Enter the location number of the pin number/tag you wish to delete using a 3 digit format (xxx). The red LED will illuminate.
- Page 11 2. Press the key followed by the 6 key the orange LED will start to flash. 3. Press the 0 key followed by the 2 key. The rear tamer is now on. How to set the length of the pin numbers to be used 1.
- Page 12 Technical Specification DC input 12 - 24volts AC input 12 - 24volts Standby current 80ma Operating current (without lock) 110ma Working temperature -20c to +50c Reader frequency 125KHz Tag reading distance IP rating Dimension 152 x 45 x 25mm Elite Security Products Telephone: 01527 515150 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43...
