Sighting Of The EZ-TAG2

The EZ-TAG2 must not be located within 2 meters of any
reader/keypad type devices.
The EZ-TAG2 must not be sited back to back with other reader/keypad
type devices.
Site the EZ-TAG2 within easy access to the door/doors to be controlled
Recommended mounting height 1.2m.

Fitting

Using the template mark and drill the fixing and cable entry holes.
Remove security screw from the underside of the keypad/reader and
remove back plate.
Fit and secure the back plate in its final position. (See Fig. 1)
Feed the cable from the keypad/reader though the centre hole of the
back plate.
Clip the top of keypad/reader onto the back plate and secure using the
security fixing screw located on the underside of the keypad/reader.
Make all wiring connections and connect 12 volts DC to the keypad/reader.
The green power LED will now be illuminated on the front of the
keypad/reader.
System wiring

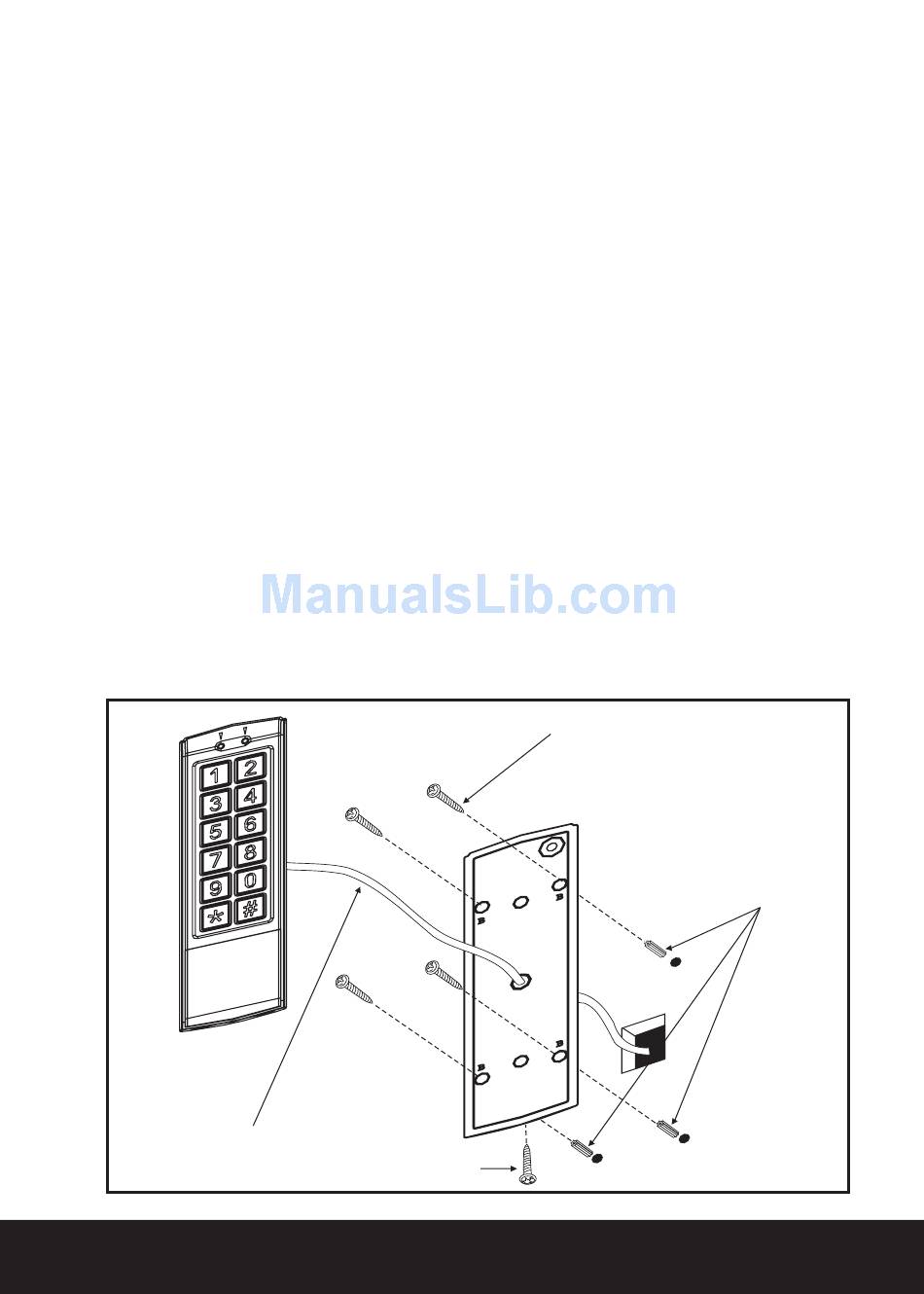

Fig. 1
Screws
Torx Screw
Screw
raw plugs
