Addonics Technologies Mini NAS NAS25HDU2 Quick Install Manual

Addonics
T E C H N O L O G I E S
Model: NAS25HDU2
Quick Install Guide
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a class B digital
device pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy. If not installed and
used in accordance with the instructions, it may cause harmful interfer ence to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try and correct the interference by one or more of the following
suggestions.
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to a different power outlet other than the one where receiver is
connected
Consult a certified television or radio technician
Mini NAS
For more detailed information on setting up the mini NAS, refer to the User
Manual located on the CD that came with the device.
Follow the instructions to help you connect, setup, and configure it.
Note: Any 2.5" SATA drive that you connect to the mini NAS will initially be
required to be formatted. This means, if you are connecting a 2.5" SATA
drive with data on it, the hard drive will be formatted erasing all the
information. It is recommended that a backup of this drive be made.
Network Environment
There are 3 different setup conditions you can choose:
A. Setup mini NAS as a DHCP Client:
If the mini NAS is connected to a LAN network with an active DHCP server,
it will obtain an IP address from DHCP server automatically.
B. Setup mini NAS as DHCP Server:
If your LAN network does not have an active DHCP server, the mini NAS will
immediately act as DHCP server and assign itself an IP address for
installation.
C. Setup mini NAS in Static IP environment:
You first need to configure the IP address for mini NAS to operate in the
static IP environment. For Configuring details, please refer to "LAN Config"
setup page.

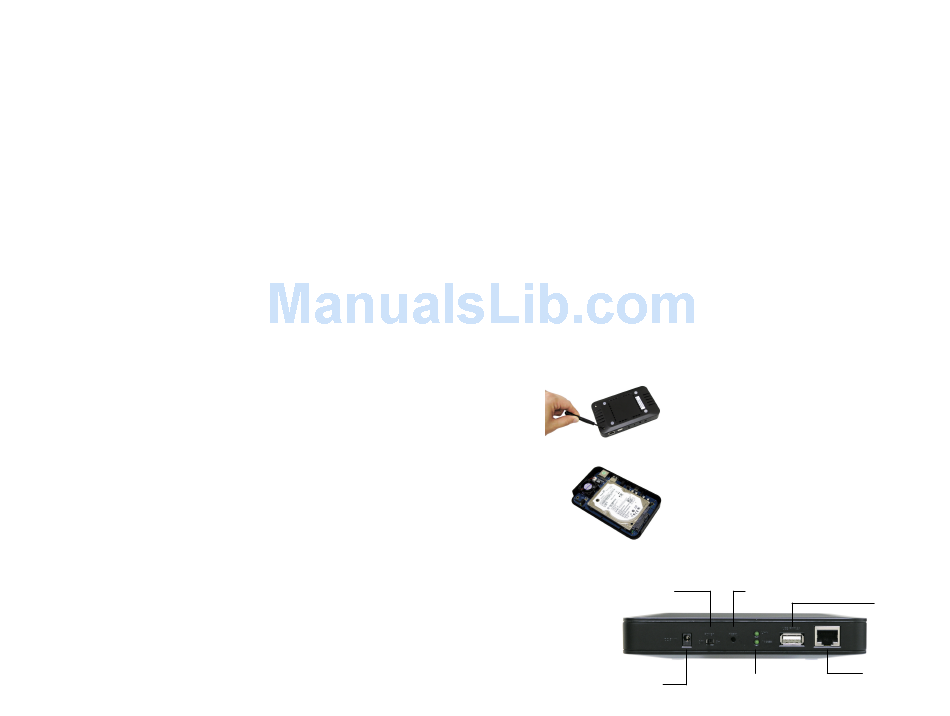

I. Mini NAS Hardware Installation
3. Connect LAN cable to uplink port to LAN switch and/or router.
4. Connect 5V power adapter then power up the mini NAS.
On / Off Power
Switch
5V Power Jack
1. To open the mini NAS, remove the 2
screws located at the bottom part of the
enclosure.
2. Insert the SATA drive into the SATA
connector and secure the drive using the
screws provided.
Factory Reset
Button
Uplink port to
Network Link /
router
Access LEDs
USB port for
print server
