T E C H N O L O G I E S

User Guide

Mini NAS Adapter
(NAS25HDU2)
www.addonics.com
v5.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/

Advertisement

loading

Related Manuals for Addonics Technologies NAS25HDU2

Summary of Contents for Addonics Technologies NAS25HDU2

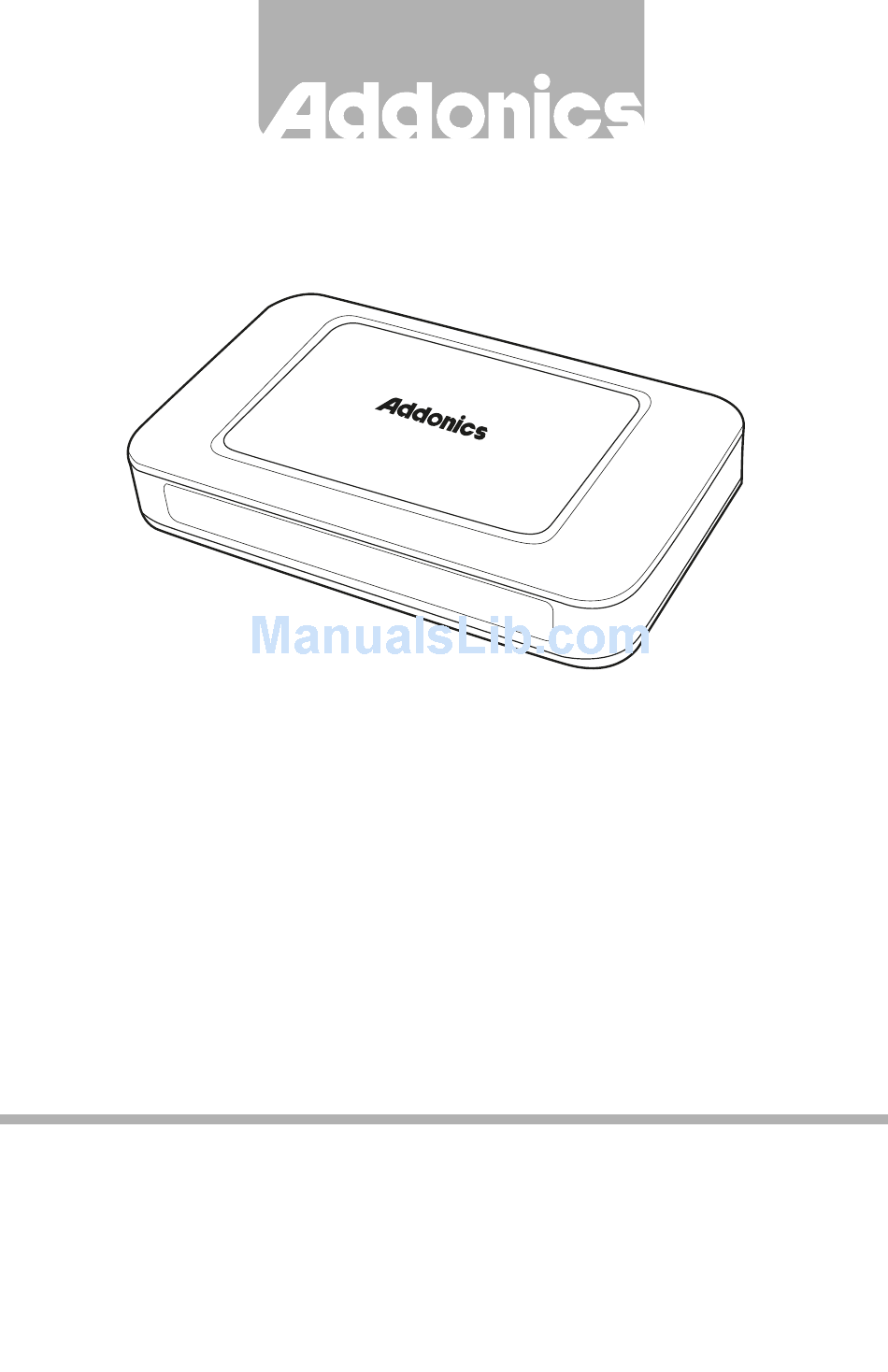

  • Page 1: User Guide

    T E C H N O L O G I E S User Guide Mini NAS Adapter (NAS25HDU2) www.addonics.com v5.1.11 Technical Support If you need any assistance to get your unit functioning properly, please have your product information ready and contact Addonics Technical Support at:...
  • Page 2 For more detailed information on setting up the mini NAS, refer to the User Manual located on the CD that came with the device. Follow the instructions to help you connect, setup, and configure it. Note: Any 2.5” SATA/SSD drive that you connect to the mini NAS will initially be required to be formatted.
  • Page 3 Mini NAS Hardware Installation To open the mini NAS, remove the 2 screws located at the bottom part of the enclosure. Insert the SATA drive into the SATA connector and secure the drive using the screws provided. Connect LAN cable to uplink port to LAN switch and/or router.
  • Page 4 When mini NAS has been found, click “Connect” to enter web GUI utility. Open mini NAS web GUI by using web browser. Open web browser and type default host name “storage” in the search bar. Default login is “admin” for both User name and password. Click “OK”...

  • Page 5: Lan Configuration

    LAN Configuration By default, “LAN Config” is set to “Automatic IP”. This will allow the mini NAS to obtain its IP address automatically. If you prefer setting it manually, select the static IP option, enter your own value and click “Apply” to confirm the new setting. Disk Utility In this page, you can manage hard disk settings of the USB storage device.
  • Page 6 Type “Guest” as username. Leave password empty. Click on OK. This will direct you to the Public folder on the NAS drive. Now you have set up the folder that you wish to share on your NAS . This folder can be access from other computer on your local network.
  • Page 7 Now you have set up the folder that you wish to share on your NAS . This folder can be access from other computer on your local network. To list the NAS drive in Network Places Go to Network Places in Windows XP, under Network Tasks, click on the “Set up a home or small office network”.
  • Page 8 To access Samba PUBLIC folder of mini NAS in Mac OS X Start at the "Go" drop down menu at the top of your screen, then click "Connect to server". Type into the "Server Address" field 'smb://' followed by the IP address of the mini NAS you want to connect.
