Addonics Technologies NA3MS4HU2B User Manual

RAID Mode LEDs
BIG 2 LEDs 1, 2 & 4 all OFF
BIG 4 4 ON, 2 & 1 OFF
FAST 2 2 ON, 4 & 1 OFF
FAST 4 1 ON, 4 & 2 OFF
SAFE FAST 4 & 2 ON, 1 OFF
SAFE 2 4 & 1 ON, 2 OFF
RAID 5 2 & 1 ON, 4 OFF
RAID 5 + S 4, 2 & 1 all ON

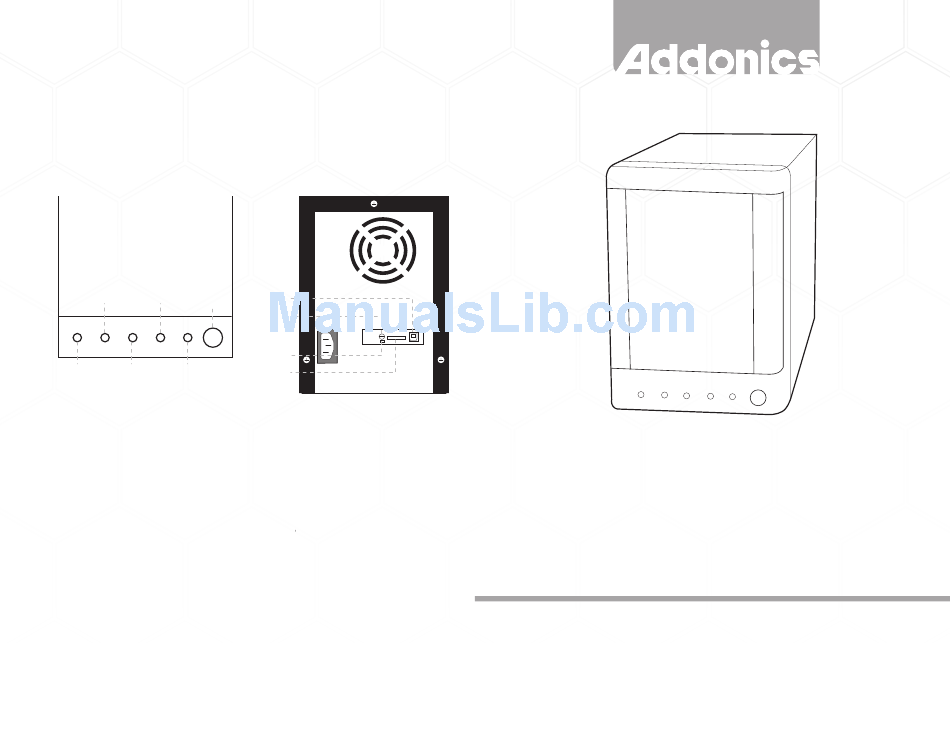

Front
LED3 LED1
HPM eSATA
Power
Power Status
Switch
LED4 LED2 Power
HPM USB LED
Health Status
Connecting the Power Cable and Storage Tower to the
Computer
a. Connect the power cord provided from the wall outlet to the back of the
tower.
b. Make sure the power is off (power LED light should be off).
c. Connect the eSATA cable from the back of the tower to the eSATA port on
the computer.
Power On/Off Control
a. A main power switch is located at the back of the tower. Turn the switch
on. Another auxiliary switch is located on the front of the tower.
b. Make sure the power is off on the auxiliary switch (power LED light should
be off).
c. Power on the tower.
Back
USB Port
RAID Setting
Button
RAID Config
Rotary Switch
eSATA Port
T E C H N O L O G I E S
User Guide
Mini Storage Tower
(NA3MS4HU2B / NASMS4HPMB)
www.addonics.com
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
v6.1.11
