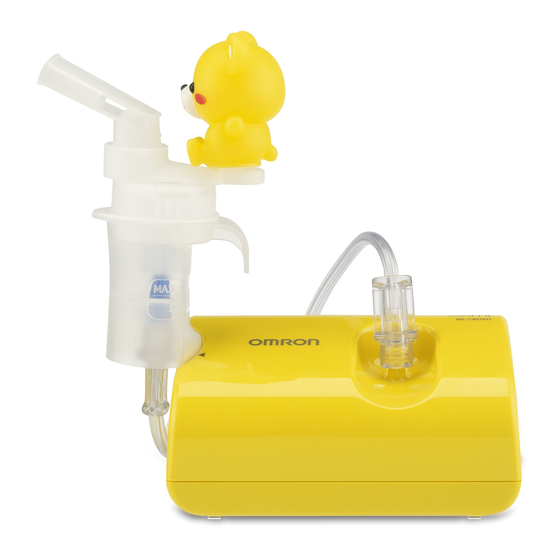

Omron COMP A-I-R NE-C801KD Instruction Manual

Compressor nebuliser
Hide thumbs Also See for COMP A-I-R NE-C801KD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Compressor Nebuliser
NE-C801KD
Model
• Instruction Manual
• Mode d'emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
• РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
TM
TM
IM-NE-C801S-KDE-02-05/2011
EN
FR
DE
IT
ES
NL
RU
AR
5332892-4B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMP A-I-R NE-C801KD and is the answer not in the manual?

Questions and answers

Related Manuals for Omron COMP A-I-R NE-C801KD

Summary of Contents for Omron COMP A-I-R NE-C801KD

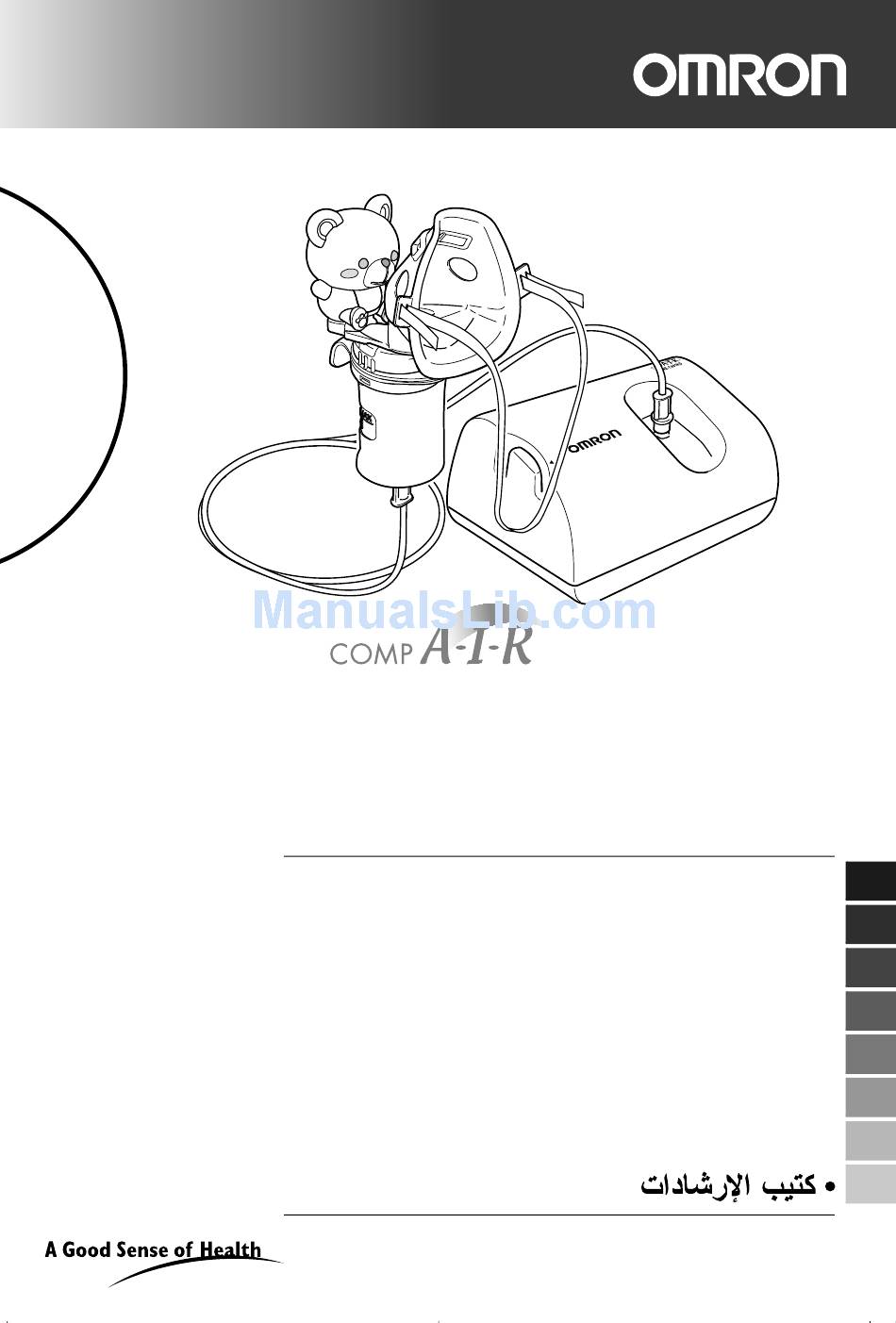

  • Page 1 Compressor Nebuliser NE-C801KD Model • Instruction Manual • Mode d’emploi • Gebrauchsanweisung • Manuale di istruzioni • Manual de instrucciones • Gebruiksaanwijzing • РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ IM-NE-C801S-KDE-02-05/2011 5332892-4B...
  • Page 2 QUICK MANUAL Please read entire manual before using the device. Warning: Clean and disinfect all the parts before using them. page 16-18 1. Adding medication Rotate the inhalation top anti-clockwise to remove. Add the appropriate amount of prescribed medication. Make sure the vaporiser head is securely attached to the inhalation top.
  • Page 3 3. Connecting AC adapter Power Outlet Power Plug Power Connector Insert the power plug of AC Plug the AC adapter into the adapter into the power power outlet. connector of the main unit. page 11 4. Attaching air tube Attach the air tube to the main unit and to the nebuliser kit.

  • Page 4: Table Of Contents

    8. Technical data ..................22 9. Optional parts and accessories............25 Introduction Thank you for purchasing the OMRON COMP AIR. This product was developed in conjunction with respiratory therapists for the successful treatment of asthma, chronic bronchitis, allergies and other respiratory disorders. The compressor forces air to the nebuliser kit.

  • Page 5: Intended Use

    Intended use Medical Purpose This product is intended to be used for inhaling medication for respiratory disorders. Intended User • Legally certified medical experts, such as doctor, nurse and therapist. • Caregiver or patient under the guidance of qualified medical experts for home treatment.

  • Page 6: Important Safety Instructions

    • Do not immerse the compressor in water or other liquid. • Do not use or store the device in humid locations, such as a bathroom. • Use only original OMRON AC adapter. Use of unsupported AC adapter may damage the device.
  • Page 7 Caution: Indicates a potentially hazardous situation which if not avoided, may result in minor or moderate injury, or physical damage. (Usage) • Provide close supervision when this device is used by, on, or near children or invalids. • Make sure that the parts are attached correctly. •...
  • Page 8 • Do not misuse the cord of the AC adapter. • Do not wind the cord of the AC adapter around the compressor or AC adapter. • Changes or modifications not approved by OMRON HEALTHCARE will void the user warranty.

  • Page 9: Know Your Unit

    1. Know your unit Nebuliser Kit Compressor (Main Unit) Nebuliser Kit Holder Air Tube Plug Air Tube Connector Air Tube Plug Power Switch Rear View Air Tube Air Filter Cover Power *Air filter inside Connector Nebuliser Kit Kids Accessory Kids Accessory (Smile Bear) (Happy Bunny) Inhalation Air Inlet...
  • Page 10 1.Know your unit Accessories Mouthpiece Child Mask (PVC) Infant Mask (PVC) Spare Air Filters × 5 AC adapter Storage Bag Instruction Manual Warranty card Compressor Nebuliser NE-C801KD Model • Instruction Manual • Mode d’emploi • Gebrauchsanweisung • Manuale di istruzioni •...

  • Page 11: Operating Instructions

    Operating instructions 2. Preparing the nebuliser for use Warning: • Clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece before using them for the first time after purchase. • If the device has not been used for a long period of time, or if more than one person uses the same device, clean and disinfect the nebuliser kit, kids accessory, mask or mouthpiece before using them.

  • Page 12: Adding Medication And Assembling The Parts

    2.Preparing the nebuliser for use Adding medication and assembling the parts Remove the mask or mouthpiece, kids accessory and cap from the nebuliser kit. Remove the inhalation top from the medication tank. Rotate the inhalation top anti-clockwise. Lift the inhalation top out of the medication tank. Add the correct amount of prescribed medication to the medication tank.
  • Page 13 2.Preparing the nebuliser for use Attach the cap, kids accessory, mask or mouthpiece to the nebuliser kit. Attach the cap to the inhalation air inlet. Attach the kids accessory to the inhalation top. Attach the mask or mouthpiece to the inhalation top.

  • Page 14: Taking Medication

    3. Taking medication Hold the nebuliser kit as indicated on the right. Caution: Do not tilt the nebuliser kit so that it is at an angle of greater than 45° in all directions. Medication may flow into the mouth or it may result in not nebulising effectively. Right angle Press the power switch to the on ( ) position.
  • Page 15 3.Taking medication When treatment is complete, turn the power off. Check that there is no condensation or moisture in the air tube and unplug the device from the power outlet. Warning: Condensation may occur in the air tube. Do not store the air tube while it contains condensation or moisture.

  • Page 16: Care And Maintenance

    Care and maintenance 4. Cleaning and daily disinfecting Cleaning Following the cleaning instructions after each use will prevent any remaining medication in the tank from drying, resulting in the device not nebulising effectively and also for preventing infections. Warning: Thoroughly rinse the nebuliser kit, kids accessory, mask or mouthpiece with clean hot tap water after each use, and disinfect them after the last treatment of the day.

  • Page 17: Disinfecting The Nebulising Parts

    4.Cleaning and daily disinfecting Disinfecting the nebulising parts Always clean before disinfection. (See Section 4.1 “Cleaning”) Always disinfect the medication tank, mouthpiece and other nebulising parts after the last treatment of the day. For appropriate method of disinfecting each part, refer to page 18. To disinfect the parts, use one of the methods described below: A.
  • Page 18 4.Cleaning and daily disinfecting...

  • Page 19: Maintenance And Storage

    5. Maintenance and storage To keep your device in the best condition and protect the device from damage follow these directions: Caution: • Do not leave the device unattended with infants or persons who cannot express their consent. • Do not subject the device or the parts to any strong shocks such as dropping the device on the floor. •...

  • Page 20: Changing The Air Filter

    Remove the air filter cover, wash it, and make sure it is dry and reattached correctly. • Please contact your OMRON dealer for additional air filters, or if the parts supplied with the device are damaged or missing.

  • Page 21: Troubleshooting

    Note: If the suggested remedy does not solve the problem, do not try to repair the device - no parts of the unit are user serviceable. Return the unit to an authorized OMRON retail outlet or distributor.

  • Page 22: Technical Data

    Notes: • Subject to technical modification without prior notice. • This OMRON product is produced under the strict quality system of OMRON HEALTHCARE Co., Ltd., Japan. • The device may not work if the temperature and voltage conditions are different to those defined in the specifications.
  • Page 23 University, Kyoto, Japan, according to EN 13544-1:2007 Notes: • Performance may vary with drugs such as suspensions or high viscosity. See drug supplier’s data sheet for further details. • See web site of OMRON HEALTHCARE EUROPE to update technical information. URL: www.omron-healthcare.com...
  • Page 24 This standard defines the levels of immunity to electromagnetic interferences as well as maximum levels of electromagnetic emissions for medical devices. This medical device manufactured by OMRON HEALTHCARE conforms to this EN60601-1-2:2007 standard for both immunity and emissions. Nevertheless, special precautions need to be observed: •...

  • Page 25: Optional Parts And Accessories

    9. Optional parts and accessories V.V.T. Nebuliser Kit N-01 & V.V.T. Nebuliser Kit N-01 & V.V.T. Nebuliser Kit N-01 & Mouthpiece Set Smile Bear Set Happy Bunny Set Model: C801-NSET3 Model: C801-NKKD1 Model: C801-NKKD2 Order No.: 9515573-6 Order No.: 9520011-1 Order No.: 9520012-0 Mouthpiece Nebuliser Kit No.
  • Page 26 OMRON HEALTHCARE Co., Ltd. Manufacturer 24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto, 615-0084 JAPAN OMRON HEALTHCARE EUROPE B.V. EU-representative Kruisweg 577, 2132 NA Hoofddorp, THE NETHERLANDS www.omron-healthcare.com OMRON (DALIAN) CO., LTD. Production facility Economic & Technical Development Zone Dalian 116600, CHINA OMRON HEALTHCARE UK LIMITED Opal Drive, Fox Milne Milton Keynes, MK15 0DG U.K.
