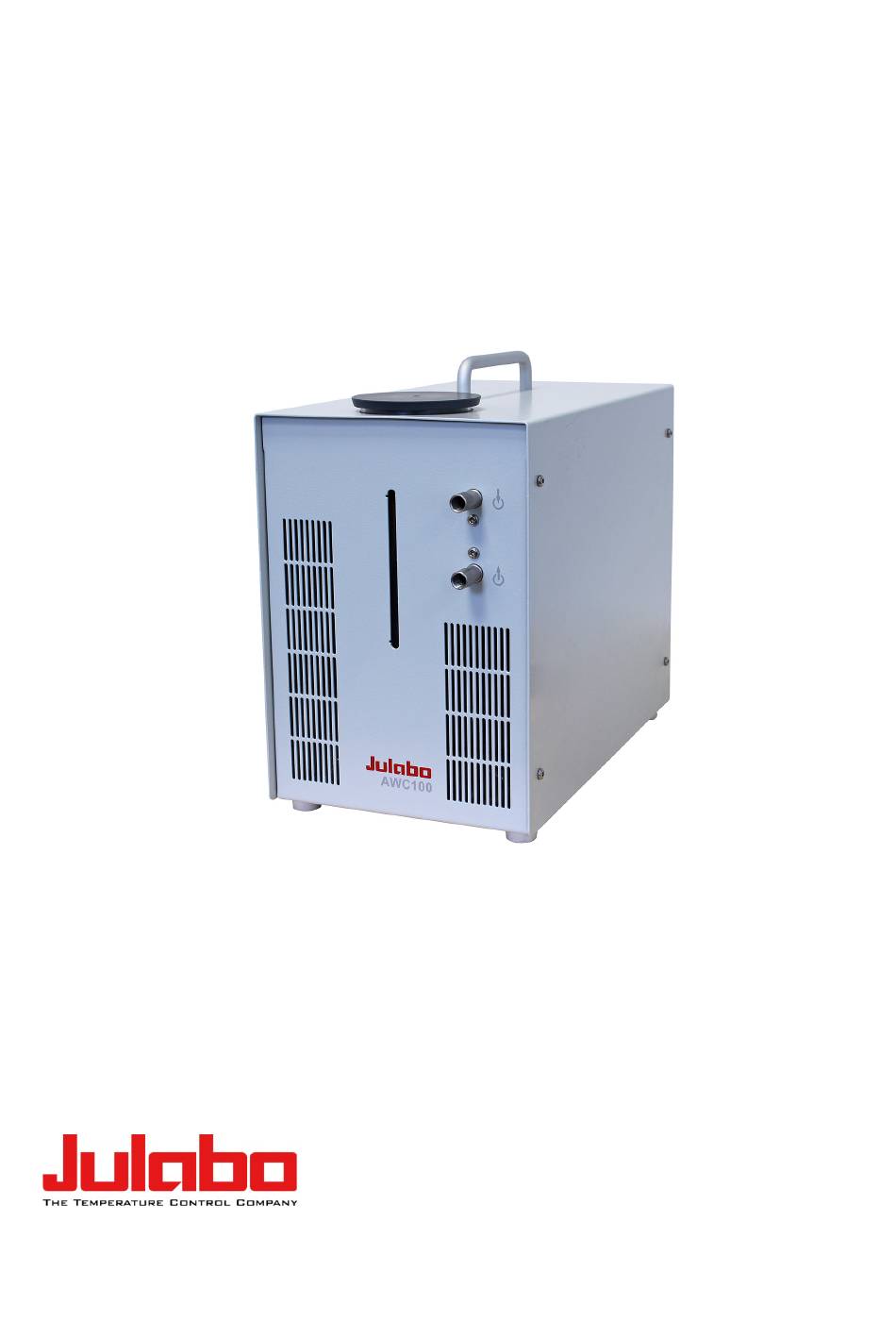

- Page 1 Operating Manual Compact Recirculating Cooler AWC100 1.950.4820.us.V05 11/2020 JULABO USA, Inc. 84 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231 0250...
- Page 2 Legal JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231-0250 Fax.: +1(610) 231-0260 Info@julabo.us www.julabo.us The content of this operating manual is protected by copyright. Information, including texts, images, and other contents may not be reproduced, distributed, transmitted, stored or otherwise used in any form without prior explicit written consent.
-
Page 3: Table Of Contents
Table of contents 1 Foreword ..............................4 2 Intended use ..............................4 3 Safety ................................5 3.1 General safety instructions, operating company ..................5 3.2 General safety instructions, operator ....................... 5 3.3 General safety instructions for bath fluids ....................6 3.4 Safety symbols ............................ -
Page 4: Foreword
1 Foreword Congratulations! You have made an excellent choice. JULABO would like to thank you for the trust you have placed in our company and products. This operating manual will help you become acquainted with the use of our units. -
Page 5: Safety
3 Safety 3.1 General safety instructions, operating company The products of JULABO GmbH are safe when installed, operated, and maintained according to the generally accepted rules of safety. This chapter explains the potential hazards that can arise in conjunction with operation of the recirculating cooler and describes the most important safety measures for eliminating these hazards when possible. -
Page 6: General Safety Instructions For Bath Fluids
Safety 3.3 General safety instructions for bath fluids Bath fluids must meet a variety of requirements. The following safety instructions must be observed to guarantee safe operation in the long term. Please note when using bath fluids: • Due to its high lime content, hard water is not suitable as a bath fluid as it can lead to premature calcification of the unit •... -
Page 7: Symbols Used
Description NOTE This signal word designates a possibly harmful situation. If it is not avoided, the system or objects in its vicinity may be damaged. 3.6 Symbols used Various symbols are used throughout this manual to aid reading comprehension. This list describes the symbols used. The list describes the symbols used in the manual: Tool required for a following procedure Prerequisite for the following procedure... -
Page 8: Operating And Functional Elements

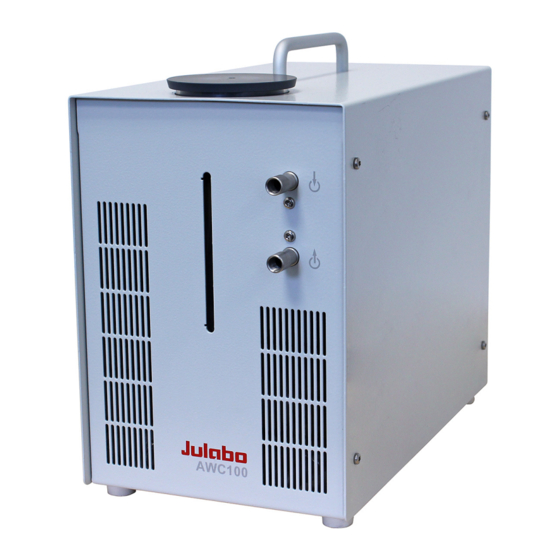

Description 4.1 Operating and functional elements The following figure shows the operating and functional elements and their position on the unit. Fig. 1: Operating and functional elements Handle Cooling water reservoir cover Hose connection, cooling water inlet Cooling capacity two-way switch Hose connection, cooling water outlet Level indicator, cooling water reservoir, min/max Mains switch... -
Page 9: Technical Data
Description 4.2 Technical data The table contains the technical data of the unit. It refers to the rated voltage and rated frequency as well as to an ambient temperature of 20°C. Technical data Working temperature range °C +20 … +40 Cooling capacity depending on the temperature °C differential between the return line and ambient... -
Page 10: Bath Fluids
NOTE No liability accepted for usage of bath fluids that are not suitable! Unsuitable bath fluids that are not approved by JULABO can damage the water bath. • Use bath fluids that are recommended by JULABO •... -
Page 11: Initial Operation
Operation 4. Secure the unit on the transport trolley against tipping over. 5. Place loose parts, such as cables, with the unit on the transport trolley. The unit is ready for transport. 5.2 Initial operation This section describes how to put the unit into operation. NOTE Secure the hose connections to prevent them sliding off. -
Page 12: Operation
• Service and repair work may only be performed by qualified electricians • JULABO accepts no liability for property damage caused by service and repair work not carried out by authorised specialist personnel Torx bit, size T20 Bit holder... -
Page 13: Technical Service
8. Clean the unit surface with a lint-free cloth and a mild cleaning agent. 9. Vacuum the vents. The unit is cleaned. 5.6 Technical Service If the unit shows faults you cannot resolve, please contact our Technical Service. JULABO Technical Service Tel.: +1(610) 231-0250 Option 3 Fax: +1(610) 231-260 Email: Service@julabo.us... -
Page 14: Warranty
Operation 5.7 Warranty JULABO provides a warranty that the device will function perfectly as long as it is connected and used correctly and as described in the operating manual. The warranty period is one year from the invoice date. The following Warranty Provisions shall apply to products sold in North America by JULABO (“Seller”) to the entity shown as buyer (“Buyer”) on Seller’s invoice. - Page 15 Operation discretion perform such repairs or replacements at Buyer’s facility in which case Buyer shall pay Seller’s travel, living and related expenses incurred by Seller in performing the repairs or replacements at Buyer’s facility. As a condition precedent to Seller’s obligation to repair or replace a product part under the Initial Warranty, Buyer shall (i) promptly notify Seller in writing of any such defect;...
-
Page 16: Sending A Unit
4. Mark the packaging for an upright transport of the unit. 5. Complete the online return form at www.julabo.com/support. The unit is ready for shipment and can be sent to JULABO Technical Service. 5.9 Disposal When disposing of the device, the applicable country-specific guidelines must be observed.
