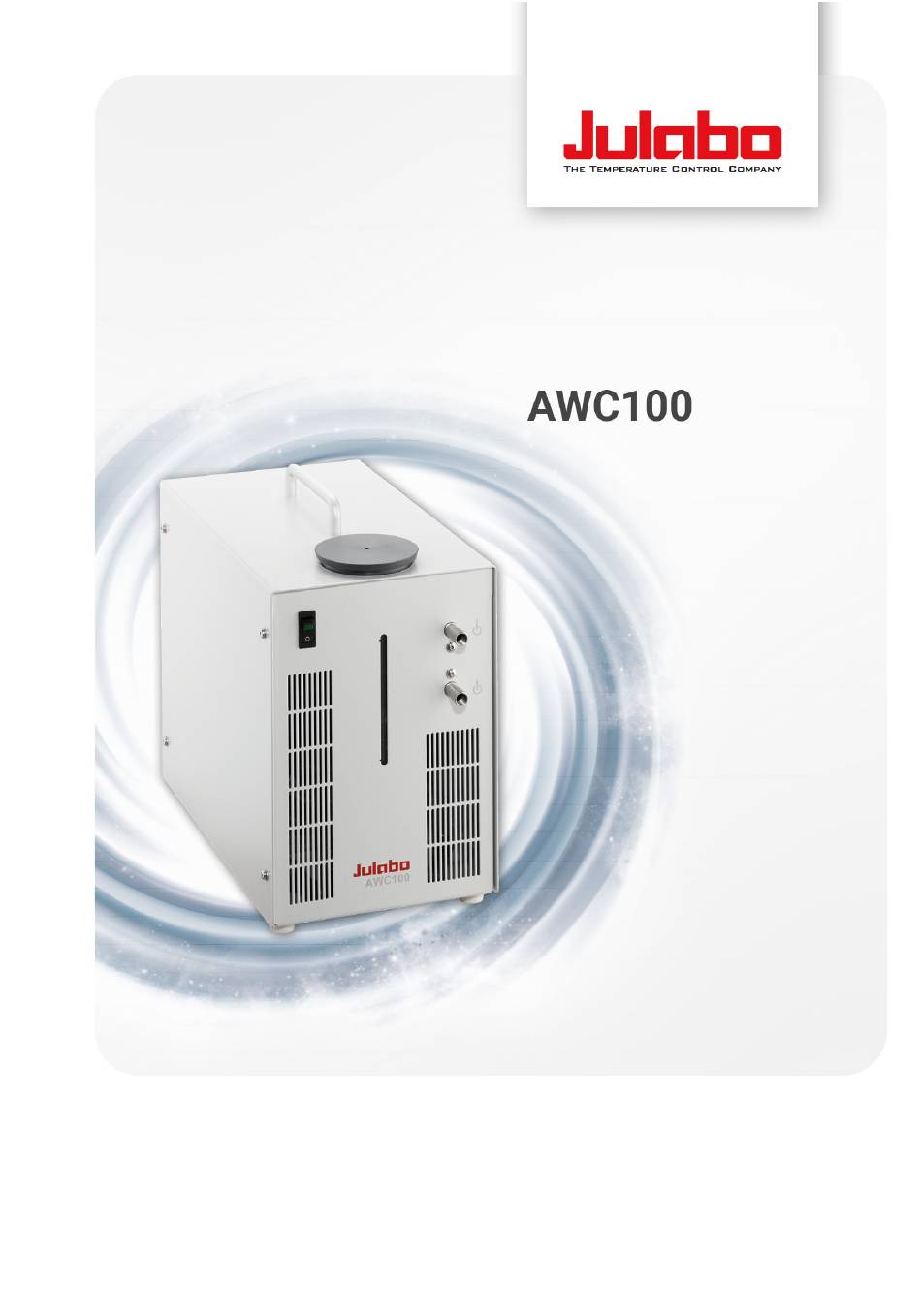

- Page 1 Compact Recirculating Cooler Original operating manual 1.950.4820.en.V08 06/2022...
- Page 2 Legal JULABO GmbH Gerhard-Juchheim-Strasse 1 77960 Seelbach / Germany Tel.: +49 7823 51-0 Fax: +49 7823 2491 Info.de@julabo.com www.julabo.com The content of this operating manual is protected by copyright. Information, including texts, images, and other contents may not be reproduced, distributed, transmitted, stored or otherwise used in any form without prior explicit written consent.
-
Page 3: Table Of Contents
Contents Foreword .................... 4 About this manual ................5 Original JULABO spare parts ............5 Accessories ..................5 Warnings ..................5 Symbols used ................. 6 Intended use ..................7 Safety ....................8 General Safety Instructions for the operating company....8 General Safety Instructions for the operator ........ -
Page 4: Foreword
Foreword Congratulations! You have made an excellent choice. JULABO would like to thank you for the trust you have placed in our company and products. This operating manual will help you become acquainted with the use of our units. Read the operating manual carefully. Keep the operating manual handy at all times. -
Page 5: About This Manual
Please note that JULABO cannot provide a warranty service if non-original JULABO spare parts are used. Accessories JULABO offers a wide range of accessories for the devices. Accessories are not described in this manual. The complete range of accessories for the devices described in this manual can be found on our website www.julabo.com. -
Page 6: Symbols Used
About this manual CAUTION This signal word designates a danger with a low level of risk which, if it not prevented, may result in minor to moderate injuries. WARNING This signal word designates a danger with a medium level of risk which, if it not prevented, may result in death or serious injuries. -
Page 7: Intended Use
Intended use Intended use This section defines the purpose of the unit so that the operator can operate the unit safely and avoid misuse. Recirculating coolers are intended for the temperature control of liquid media. An external cooling circuit is connected to the connections, via which media can be constantly cooled. -
Page 8: Safety
Safety Safety General Safety Instructions for the operating company This section outlines the General Safety Instructions that must be observed by the operator to ensure safe operation. • The operator is responsible for the qualifications of its operating personnel. • The operator must ensure that the operating personnel has been instructed in use of the device. -
Page 9: General Safety Instructions For Bath Fluids
Safety • Completely drain the unit before transporting it • Switch off the unit and disconnect the mains plug before carrying out any cleaning work • • Transport the unit carefully Shaking or falls may damage the inside of the unit •... -
Page 10: Safety Symbols
Product description Safety symbols There are safety symbols included with the device, which should be attached to the device before initial operation. Safety Description symbols Warning of a danger zone. Note operating manual Read operating manual before switching on Produc t description Product description Function description The recirculating cooler AWC 100 can be used as a cooling unit for water in... -
Page 11: Operating And Functional Elements
Product description Operating and functional elements The following figure shows the operating and functional elements and their position on the unit. Fig. 1: Control and function elements Handle Cooling water reservoir cover Cooling water inlet hose connection Cooling capacity switch Cooling water outlet hose connection Cooling water reservoir min./max. -
Page 12: Technical Data
Product description Technical data The table contains the technical data of the unit. It refers to the rated voltage and rated frequency as well as to an ambient temperature of 20°C. In accordance with IEC 61010-1, the device is designed for safe operation under the following ambient conditions: •... -
Page 13: Bath Fluids
Recommended bath fluids and further information can be found on our website NOTE No liability accepted for usage of bath fluids that are not suitable! Unsuitable bath fluids that are not approved by JULABO can damage the water bath. • Use bath fluids that are recommended by JULABO •... -
Page 14: Transport And Installation
Transport and installation Transport and installation This section describes how to transport the unit safely. CAUTION Risk of injury, device may tip over! Unsecured devices may tip over during transport and cause injuries. • Secure the device against tipping and falling during transport •... -
Page 15: Initial Operation
Initial operation Initial operation This section describes how to put the unit into operation. NOTE Secure the hose connections to prevent them sliding off. Improper assembly of the hose connections may cause them to leak or slip off the connection nozzles. •... -
Page 16: Operation
Operation Operation The recirculating cooler is very user-friendly. If it is connected to an external application, it is sufficient to switch it on. No settings are required. The recirculating cooler is designed for continuous operation under normal conditions. The device is ready for use and connected to an external application. ... -
Page 17: Maintenance
See type plate for mains voltage and current value. We recommend only using original JULABO spare parts. Emptying The device must be completely drained if it is to be sent in for technical service or is to be properly disposed of. -
Page 18: Clean Device
• Service and repair work may only be performed by qualified electricians • JULABO accepts no liability for property damage caused by service and repair work not carried out by authorised specialist personnel Torx screwdriver, size T20 The unit is switched off. -
Page 19: Device Storage
The device is protected and can be safely stored there. It can be put into operation again as needed. Technical Service If the unit shows faults you cannot resolve, please contact our Technical Service. JULABO GmbH Technical Service Gerhard-Juchheim-Strasse 1 77960 Seelbach / Germany Tel.:... -
Page 20: Warranty
Maintenance Warranty JULABO provides a warranty that the device will function perfectly as long as it is connected and used correctly and as described in the operating manual. The warranty period is one year from the invoice date. With the 1PLUS warranty, the warranty can be extended to two years free of charge. -
Page 21: 10 Ec Declaration Of Conformity
EC Declaration of Conformity 10 EC Declaration of Conformity... -
Page 22: 11 Uk Declaration Of Conformity
UK Declaration of Conformity 11 UK Declaration of Conformity UK Office: JULABO UK Ltd., Unit 7, Casterton Road Business Park, Old Great North Road, Little Casterton, Stamford, PE9 4EJ, United Kingdom, Tel.: +44 1733 265892...
