Instruction Manual
USB to PS/2 Keyboard and Mouse
Converter Adapter
USBPS2PLATE
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 11/29/2011
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com USBPS2PLATE
Summary of Contents for StarTech.com USBPS2PLATE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 11/29/2011...
-
Page 2: Table Of Contents
Table of Contents Introduction ...................1 Features ....................1 Package Contents...................1 System Requirements ................1 Hardware Guide ..................2 Connectors ..............................2 USB Pin Header Pin Assignment ......................2 USB Header Cable (supplied): Pin Assignment ................2 Installation ....................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5 Instruction Manual... -
Page 3: Features
USB port on your desktop PC, enabling the use of a PS/2 keyboard and mouse as USB plug-and-play human interface devices (HID). The USBPS2PLATE USB to PS2 Keyboard Mouse Adapter also allows two PS/2 devices to be used simultaneously, and allows users to hot-plug and unplug PS/2 devices without rebooting the system. -
Page 4: Connectors

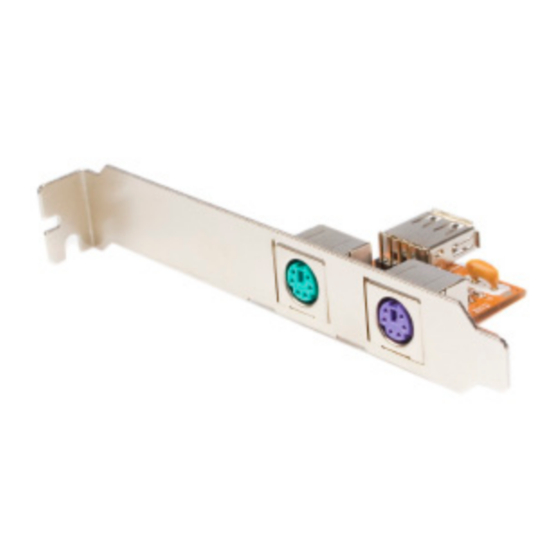

Hardware Guide Connectors 1. PS/2 Mouse Connector 2. PS/2 Keyboard Connector 3. USB 4-pin header 4. USB Female Port USB Pin Header Pin Assignment D+ (USB DP) D- (USB DM) +5V (USB VCC) USB Header Cable (supplied): Pin Assignment Red wire Please note: For USB boot-up support, the USB connector must be plugged in to a built-in type A or header connector on the motherboard Instruction Manual... -
Page 5: Installation
(Pin 1) If no 4-pin USB Header connection is available on the motherboard, connect the USB Female port provided by USBPS2PLATE (shown as #4 on pg.2) to an available USB port on the rear panel of the computer. -
Page 6: Specifications
Specifications Connectors PS/2: 2 x 6-pin min-DIN Any Windows operating system with a OS Compatibility USB interface Power Mode USB Bus Powered Instruction Manual... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
