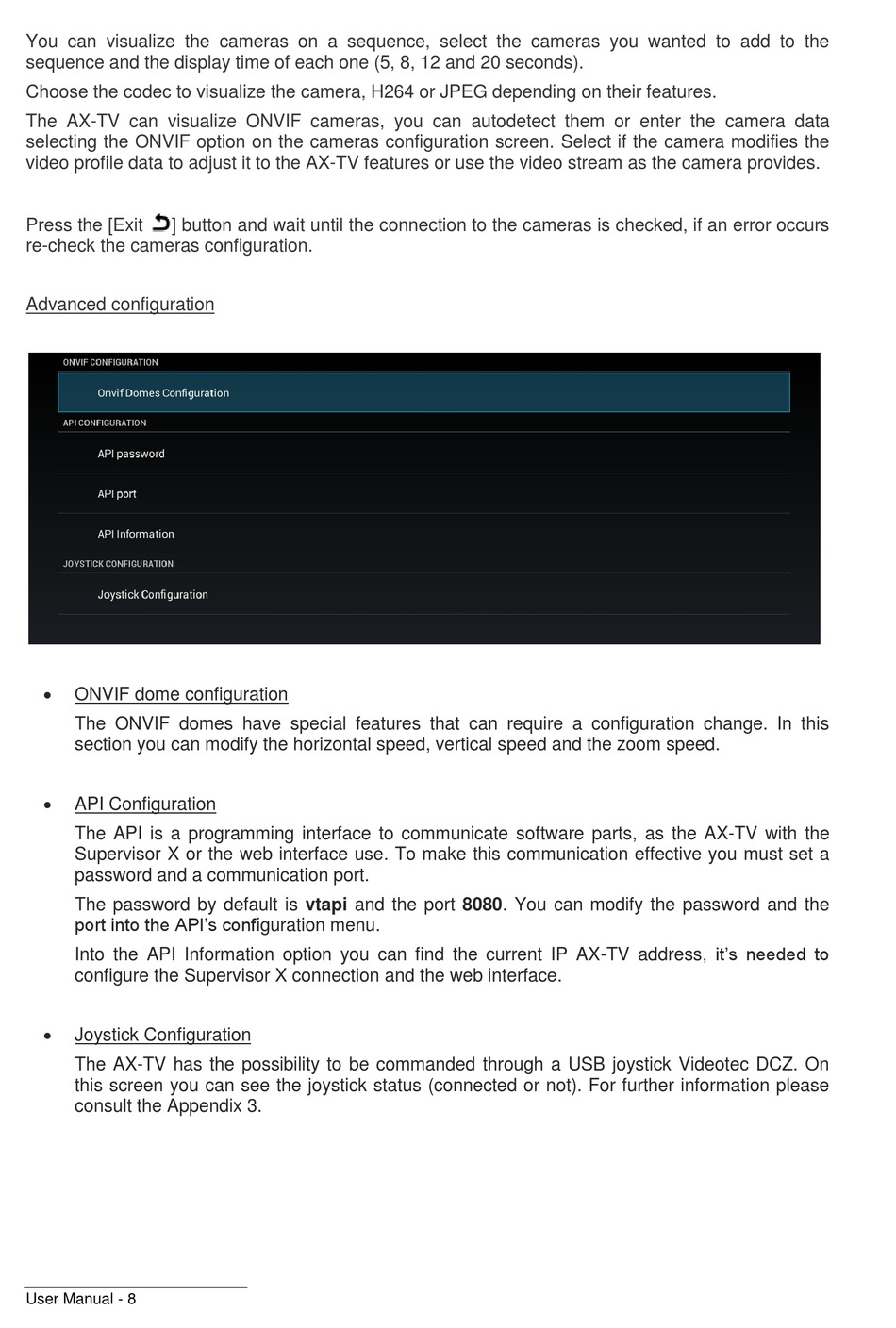

Visual Tools AX-TV User Manual page 8

You can visualize the cameras on a sequence, select the cameras you wanted to add to the
sequence and the display time of each one (5, 8, 12 and 20 seconds).
Choose the codec to visualize the camera, H264 or JPEG depending on their features.
The AX-TV can visualize ONVIF cameras, you can autodetect them or enter the camera data
selecting the ONVIF option on the cameras configuration screen. Select if the camera modifies the
video profile data to adjust it to the AX-TV features or use the video stream as the camera provides.
Press the [Exit ] button and wait until the connection to the cameras is checked, if an error occurs
re-check the cameras configuration.
Advanced configuration

ONVIF dome configuration
The ONVIF domes have special features that can require a configuration change. In this
section you can modify the horizontal speed, vertical speed and the zoom speed.

API Configuration
The API is a programming interface to communicate software parts, as the AX-TV with the
Supervisor X or the web interface use. To make this communication effective you must set a
password and a communication port.
The password by default is vtapi and the port 8080. You can modify the password and the
port into the API's configuration menu.
Into the API Information option you can find the current IP AX-TV address, it's needed to
configure the Supervisor X connection and the web interface.

Joystick Configuration
The AX-TV has the possibility to be commanded through a USB joystick Videotec DCZ. On
this screen you can see the joystick status (connected or not). For further information please
consult the Appendix 3.
