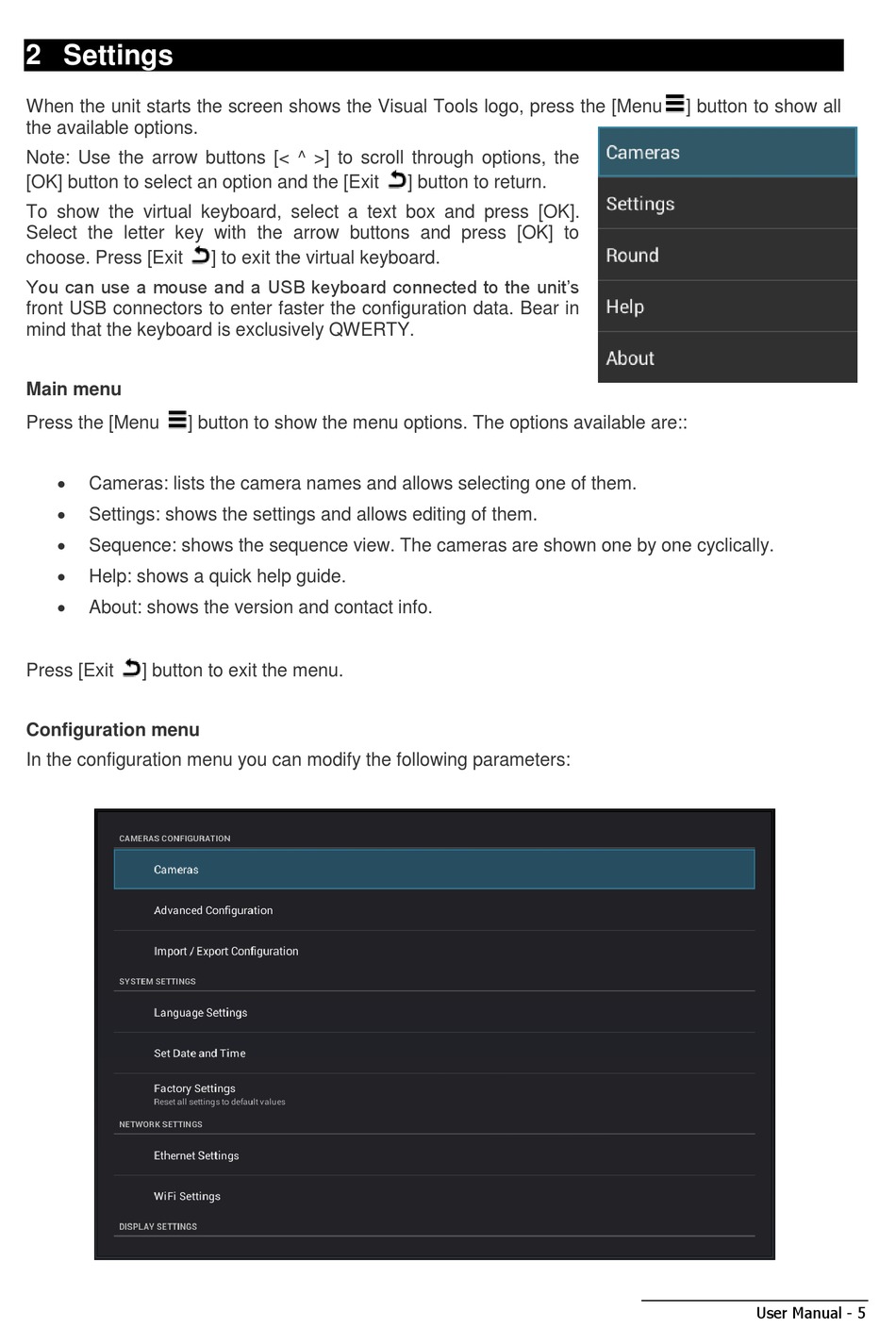

2 Settings

When the unit starts the screen shows the Visual Tools logo, press the [Menu
the available options.
Note: Use the arrow buttons [< ^ >] to scroll through options, the
[OK] button to select an option and the [Exit
To show the virtual keyboard, select a text box and press [OK].
Select the letter key with the arrow buttons and press [OK] to
choose. Press [Exit
You can use a mouse and a USB keyboard connected to the unit's
front USB connectors to enter faster the configuration data. Bear in
mind that the keyboard is exclusively QWERTY.
Main menu
Press the [Menu ] button to show the menu options. The options available are::

Cameras: lists the camera names and allows selecting one of them.

Settings: shows the settings and allows editing of them.

Sequence: shows the sequence view. The cameras are shown one by one cyclically.

Help: shows a quick help guide.

About: shows the version and contact info.
Press [Exit ] button to exit the menu.
Configuration menu
In the configuration menu you can modify the following parameters:
] to exit the virtual keyboard.
] button to return.
] button to show all
User Manual - 5
