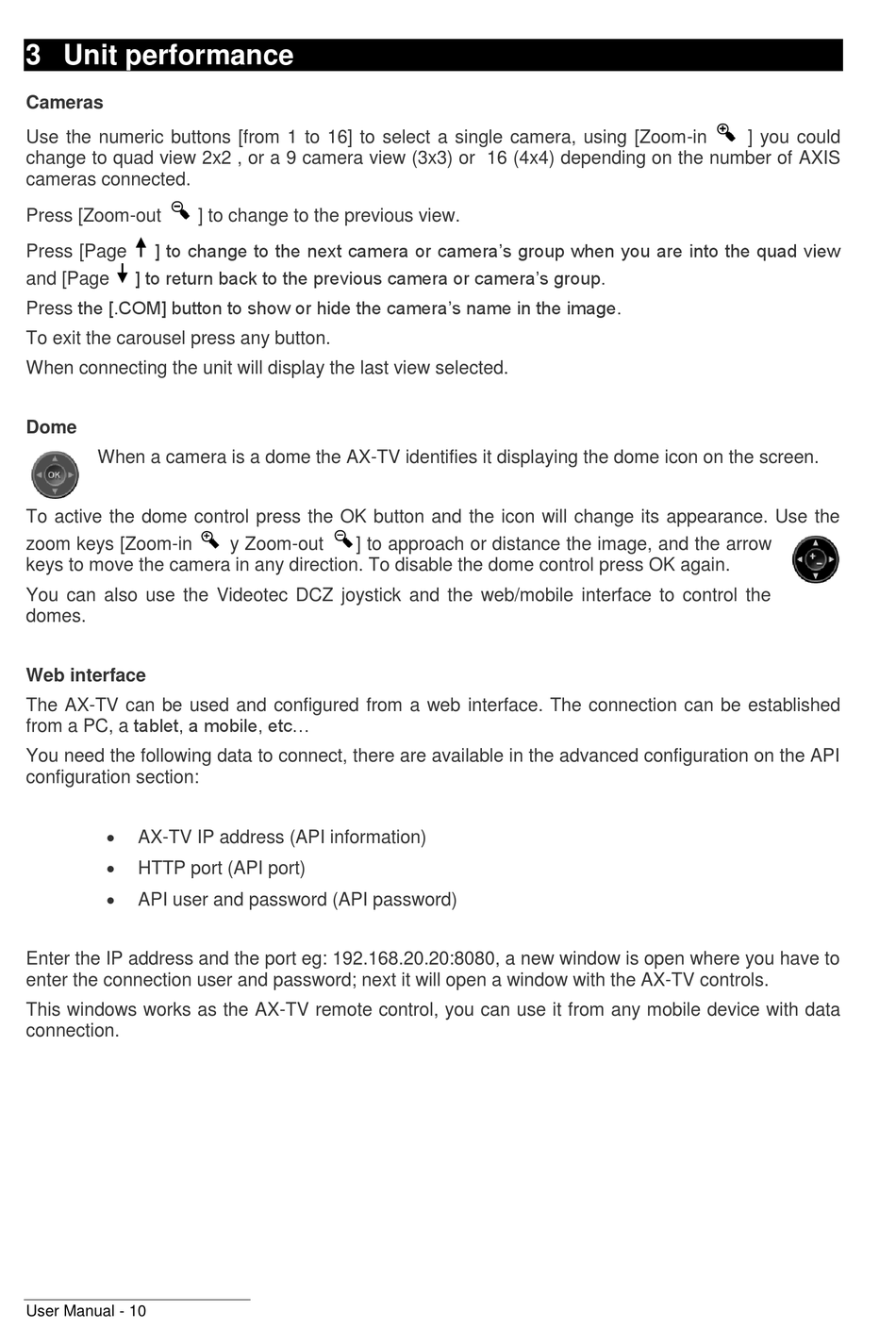

3 Unit performance

Cameras
Use the numeric buttons [from 1 to 16] to select a single camera, using [Zoom-in
change to quad view 2x2 , or a 9 camera view (3x3) or 16 (4x4) depending on the number of AXIS
cameras connected.
Press [Zoom-out
] to change to the next camera or camera's group when you are into the quad view
Press [Page
] to return back to the previous camera or camera's group.
and [Page
Press the [.COM] button to show or hide the camera's name in the image.
To exit the carousel press any button.
When connecting the unit will display the last view selected.
Dome
When a camera is a dome the AX-TV identifies it displaying the dome icon on the screen.
To active the dome control press the OK button and the icon will change its appearance. Use the
zoom keys [Zoom-in
keys to move the camera in any direction. To disable the dome control press OK again.
You can also use the Videotec DCZ joystick and the web/mobile interface to control the
domes.
Web interface
The AX-TV can be used and configured from a web interface. The connection can be established
from a PC, a tablet, a mobile, etc...
You need the following data to connect, there are available in the advanced configuration on the API
configuration section:

AX-TV IP address (API information)

HTTP port (API port)

API user and password (API password)
Enter the IP address and the port eg: 192.168.20.20:8080, a new window is open where you have to
enter the connection user and password; next it will open a window with the AX-TV controls.
This windows works as the AX-TV remote control, you can use it from any mobile device with data
connection.
User Manual - 10
] to change to the previous view.
y Zoom-out ] to approach or distance the image, and the arrow
] you could
