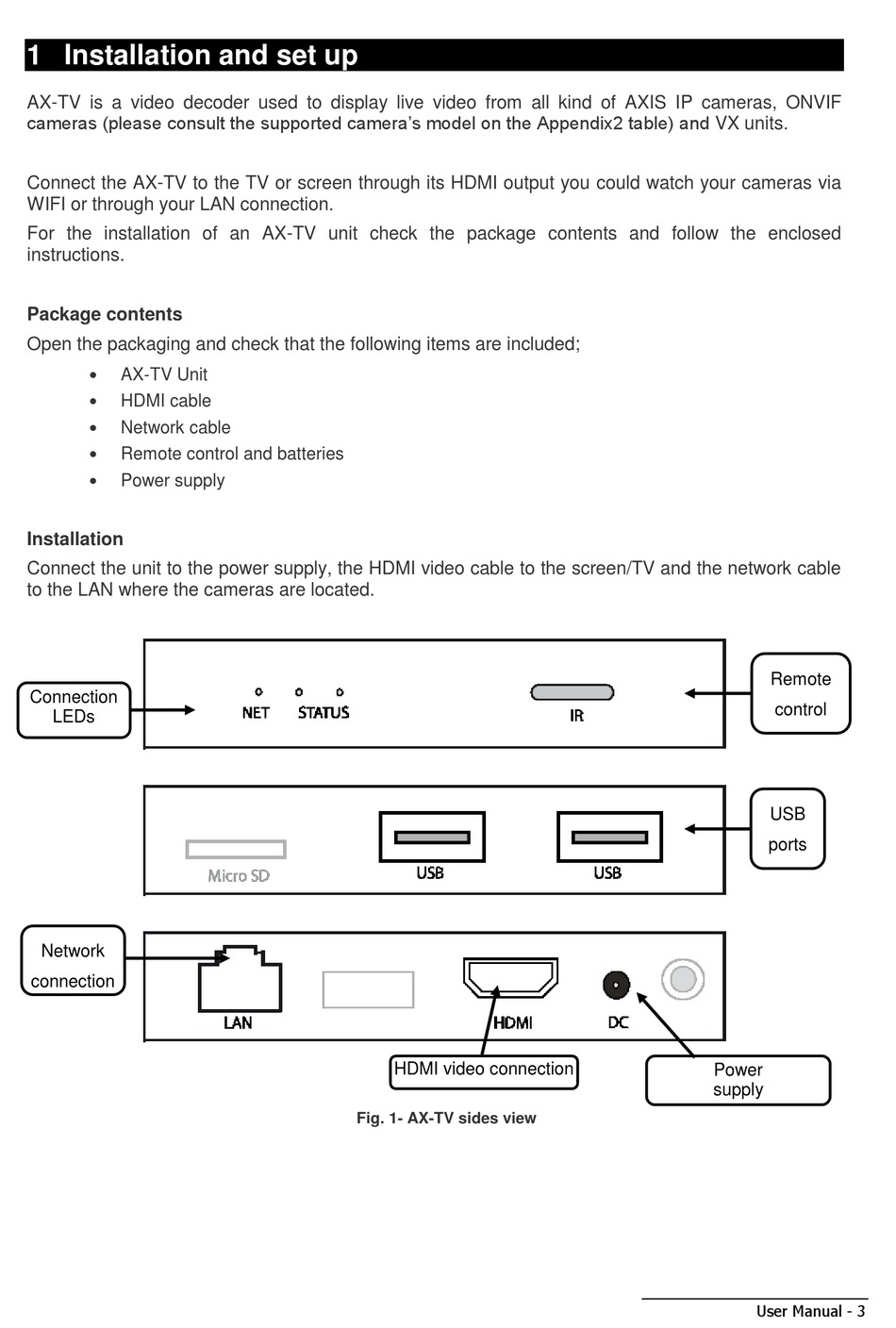

1 Installation and set up

AX-TV is a video decoder used to display live video from all kind of AXIS IP cameras, ONVIF
cameras (please consult the supported camera's model on the Appendix2 table) and VX units.
Connect the AX-TV to the TV or screen through its HDMI output you could watch your cameras via
WIFI or through your LAN connection.
For the installation of an AX-TV unit check the package contents and follow the enclosed
instructions.
Package contents
Open the packaging and check that the following items are included;

AX-TV Unit

HDMI cable

Network cable

Remote control and batteries

Power supply
Installation
Connect the unit to the power supply, the HDMI video cable to the screen/TV and the network cable
to the LAN where the cameras are located.
Connection
LEDs
Network
connection
HDMI video connection
Fig. 1- AX-TV sides view
Remote
control
USB
ports
Power
supply
User Manual - 3
