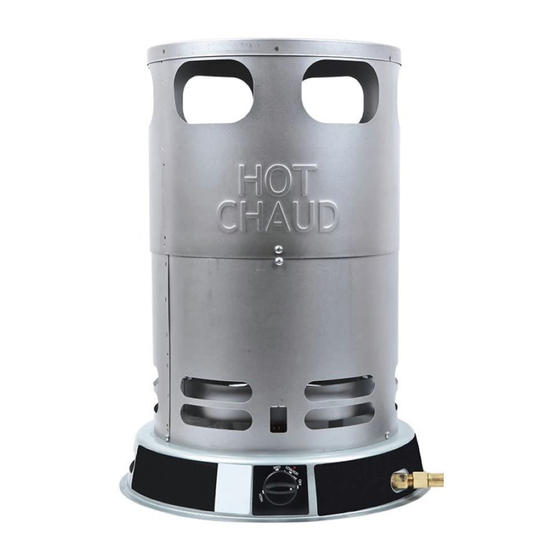

Model Numbers: MH-80V-LPC, MH-200V-LPC
Consumer: Please Read These Instructions And Keep For Your Reference
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS
HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR
DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN. ASPHYXIATION, CARBON
MONOXIDE POISONING AND / OR ELECTRIC SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE
OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS
MANUAL, LABEL, ETC. CONTACT THE MANUFACTURER.
Carbon Monoxide Hazard This heater produces carbon monoxide, which has no odor. Burning the
WARNING
heater in an enclosed space can kill you. Never use the heater in enclosed spaces such as a tent, a
camper, any vehicle or recreational vehicle (RV), enclosed shelter, or any other enclosed areas.
Not for use in residential living areas or in non-adequately ventilated enclosed spaces. Never
DANGER
bring or store a propane cylinder indoors.
668 Stony Hill Road #302 Yardley, PA 19067 USA Toll Free: (800) 641-6996
Fax: (215) 891-8461 • Web: www.masterindustrialproducts.com • Email: info@pinnacleint.com
© Pinnacle Products International, Inc.
User's Manual and
Operating Instructions
247000216-12
Advertisement
Related Manuals for Master MH-80V-LPC
Summary of Contents for Master MH-80V-LPC
- Page 1 User’s Manual and Operating Instructions Model Numbers: MH-80V-LPC, MH-200V-LPC Consumer: Please Read These Instructions And Keep For Your Reference FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN.
-
Page 2: Table Of Contents
NEVER LEAVE HEATER UNATTEND- ED WHILE BURNING, OR WHILE CONNECTED TO A FUEL SOURCE Table of Contents Safety Information........... 2-3 Long Term Storage / Maintenance ..... 6 Unpacking ............3 Exploded View ........... 8 Features ............4 Replacement Parts ..........9 Propane Information .......... -
Page 3: Safety Information
- Always maintain proper clearance from combustible materials. The hose assembly shall be pro tected Minimum clearance should be: WARNING from traffic, building material and contact MH-80V-LPC MH-200V-LPC with hot surfaces both during use and while in storage. 8 feet 8 feet... -
Page 4: Propane Information
CONNECTED TO A FUEL SOURCE Specifications Rating BTU/Hr Fuel Consumption Supply Pressure Manifold Pressure Spark Model # Gal/Hr. Lbs/Hr High High Min/Max Min/Max MH-80V-LPC 80,000 60,000 .66/.87 2.8/3.7 200 psi 20 psi 8.5” wc 10.5” wc .195” MH-200V-LPC 200,000 70,000 .76/2.19... -
Page 5: Pre-Lighting Instructions
NEVER LEAVE HEATER UNATTEND- ED WHILE BURNING, OR WHILE CONNECTED TO A FUEL SOURCE Pre-Lighting Instructions ASSEMBLY CONNECTING THE LP CYLINDER 1. Slide upper housing straight up an off of lower housing, and ALL NEW LP CYLINDERS MUST BE PURGED BEFORE remove all of the packed items from inside heater. -
Page 6: Ventilation
CONNECTED TO A FUEL SOURCE Ventilation Always provide a fresh air opening in the the MH-80V-LPC, or a minimum of 6 square feet of space for the CAUTION heated space of at least three square feet MH-200V-LPC by opening a window or door to provide fresh, (2,800 sq. - Page 7 NEVER LEAVE HEATER UNATTEND- ED WHILE BURNING, OR WHILE CONNECTED TO A FUEL SOURCE Exploded View / Parts Breakdown MH-80V-LPC MH-200V-LPC Figure 7: Exploded View for all models Reference Part Number for Models: Number Description MH-80V-LPC MH-200V-LPC Quantity Upper Shell...
-
Page 8: Limited Warranty
NEVER LEAVE HEATER UNATTEND- ED WHILE BURNING, OR WHILE CONNECTED TO A FUEL SOURCE Lighting Instructions Problem Possible Cause Solution Burner fails to ignite 1. Valve on supply cylinder closed 1. Open cylinder valve 2. Cylinder excess flow check valve closed 2.
