Master MH-80TBOA-KFA Manual

Master MH-80TBOA-KFA Manual

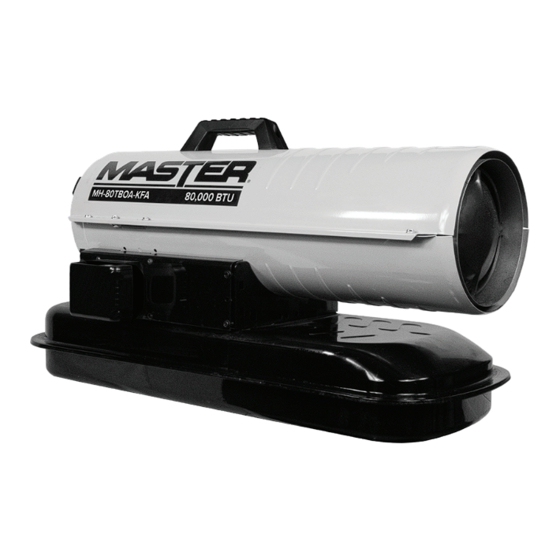

Battery operated kerosene forced air heater

Advertisement

Quick Links

CONSUMER: READ AND SAVE THESE IMPORTANT INSTRUCTIONS
Locating Your Serial Number:
Your serial number can be found on a white label on the right side cover of your heater. For Example:
150812779. Have your Serial Number ready before calling customer service at 800-641-6996.
DANGER
to comply with the instructions and warnings provided with this heater. Failure to comply can
result in fire or explosion that can cause property loss, bodily injury, or loss of life. Persons
who are impaired or under the influence of alcohol or drugs should not operate heater.
Only persons who can follow and understand these instructions should operate or service
this heater. If you need heater info; such as an operating manual, labels, etcetera, contact
Pinnacle Climate Technologies at 800-641-6996.
DANGER
INDOOR USE ONLY IN WELL-VENTILATED AREAS. INDOOR USE PERMITTED ONLY FOR:
THE TEMPORARY HEATING OF ADEQUATELY VENTILATED BUILDINGS OR STRUCTURES
UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is an unvented portable heater
that uses air (Oxygen) from within the area in which it is used. Failure to provide adequate
combustion and ventilation air will result in asphyxiation, carbon monoxide poisoning, bodily
injury or death. Refer to "Ventilation" on Page 5.
WARNING
any adjustment or repair. DO NOToperate the unit in close proximity to
combustible surfaces or materials. Allow the unit to cool before shut down.
Remove battery if the heater is not in use.
FACTORY ID: 500
Master is a registered trademark of Pinnacle Climate Technologies, Inc.
MODEL NUMBERS:
MH-80TBOA-KFA
GENERAL HAZARD WARNING: READ AND UNDERSTAND
ALL OF THE INSTRUCTIONS IN THIS MANUAL BEFORE
ASSEMBLING, STARTING, OR SERVICING THE HEATER. Be sure
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN ENCLOSED
SPACES WITHOUT ADEQUATE VENTILATION. THIS HEATER
IS NOT FOR USE WHERE EXPOSED TO THE WEATHER, AND
Heater is intended for use without ducts. DO
NOT connect to ducts. DO NOT tamper with
the unit. Have a competent serviceman make
Fax: 320-251-2922 • Web: www.masterindustrialproducts.com • Email: info@pinnacleclimate.com
BATTERY OPERATED
KEROSENE FORCED AIR HEATER
User's Manual & Operating Instructions
Sauk Rapids, MN 56379 USA • Toll Free (800) 641-6996
© 2023 Pinnacle Climate Technologies, Inc. MAKD-435

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH-80TBOA-KFA and is the answer not in the manual?

Questions and answers

Summary of Contents for Master MH-80TBOA-KFA

  • Page 1 Remove battery if the heater is not in use. FACTORY ID: 500 Sauk Rapids, MN 56379 USA • Toll Free (800) 641-6996 Fax: 320-251-2922 • Web: www.masterindustrialproducts.com • Email: info@pinnacleclimate.com Master is a registered trademark of Pinnacle Climate Technologies, Inc. © 2023 Pinnacle Climate Technologies, Inc. MAKD-435...
  • Page 2: Table Of Contents

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE TABLE OF CONTENTS Safety Information .............2-3 Maintenance ...............8-9 What’s in the Box ............4 Wiring Diagrams ............10 Specifications ..............4 Troubleshooting Guide ..........11 Features ................4 Exploded View ............12 Assembly Instructions ..........4 Parts List ................
  • Page 3: Safety Information

    Keep all combustible materials away from this heater. using this heater. Early signs of carbon monoxide poisoning resemble the flu. Symptoms of improper Minimum Clearance From Combustibles ventilation/carbon monoxide poisoning are: MH-80TBOA-KFA Headache • Dizziness • Nausea Dry Mouth Sore • 4 ft. (122 cm)
  • Page 4: What's In The Box

    Digital Readout Thermostat Knob Fuel Gauge Battery (Not Included) Power Cord Lamp WHAT’S IN THE BOX (MH-80TBOA-KFA) Carry Handle (1) 15 mm Screws (2) Heater (1) - Remove the heater and all packaging materials Note: Save the box and packaging materials from the shipping carton for future storage.
  • Page 5: Operation

    DOORS. ALWAYS FILL THE TANK OUTDOORS. BE SURE THAT Minimum Ventilation Opening Needed THE HEATER IS ON LEVEL GROUND WHEN FUELING, AND NEVER OVERFILL THE MH-80TBOA-KFA TANK. 2.4 ft.² 2230 cm² DO NOT USE GAS- WARNING OLINE OR CRANK- CASE DRAININGS.
  • Page 6 Cooling Cycle has been completed may shut the heater off to protect the battery from over discharging. cause overheating, possible damage to the heater and heat plate. Use only Master CAUTION approved batteries Restarting the Heater: —CONTACT YOUR 1.
  • Page 7: Battery Operation Instructions

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE BATTERY OPERATION INSTRUCTIONS Adapter Part Number ASM-00040 ASM-00040 ASM-00038 ASM-00038 ASM-00039 ASM-00071 Manufacturer DEWALT Milwaukee BLACK+DECKER Porter Cable Makita Mastercraft ® ® ® ® ® ® 20V Max. & FlexVolt, 18V 20V Max.
  • Page 8: Maintenance

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE MAINTENANCE Service: Never service heater WARNING DO NOT TAMPER WITH THE UNIT. HAVE while it is plugged in or hot! A COMPETENT SERVICEMAN MAKE ANY NECESSARY ADJUSTMENT OR REPAIRS. Use only original equipment parts.
  • Page 9 Re-gap the Model Number Pump Pressure terminals to 0.140” (3.5mm). See Figure 5. MH-80TBOA-KFA 120 PSI (8.27 BAR) Tolerance ± 10% Spark Plug NOZZLES: Nozzles should be cleaned or replaced at least once per heating season.
  • Page 10: Wiring Diagrams

    80TBOA-KFA Wiring Diagram EN+S 75 x 65 mm NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Wiring Diagram / Diagrama eléctrico WIRING DIAGRAMS MH-80TBOA-KFA (WT) (WT) (BL) (BL) (WT) (WT) (BL) ON/OFF (RD) (WT) (RD) BK/BL 13.
  • Page 11: Troubleshooting Guide

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE TROUBLESHOOTING GUIDE Problem Possible Cause Solution Heater Ignites, but main PCB shuts Incorrect pump pressure. Adjust pump pressure. off after a short period of time. 2. Dirty fuel filter. 2.
  • Page 12: Exploded View

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE EXPLODED VIEW Battery Connector © 2023 Pinnacle Climate Technologies, Inc. Kerosene Forced Air Heater User’s Manual...
  • Page 13: Parts List

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE PARTS LIST Description MH-80TBOA-KFA HANDLE ASSEMBLY ASM-00026 EL-00064 BLOWER ASSEMBLY ASM-00107 BLOWER FAN MOTOR EL-00065 BURNER BODY 01.01.75.007020686 BURNER BODY GASKET 01.03.72.012510047 DIFFUSION CAP GASKET 01.03.75.007010043 SPARK PLUG ASSEMBLY 01.04.75.007010078...
  • Page 14: Limited Warranty

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE LIMITED WARRANTY Pinnacle Climate Technologies, Inc. warrants this product If Pinnacle Climate Technologies, Inc. finds the item to to the original retail purchaser only, to be free from defects be in normal operating condition, or not defective the item in material and workmanship for a period of one (1) year will be returned freight collect.
