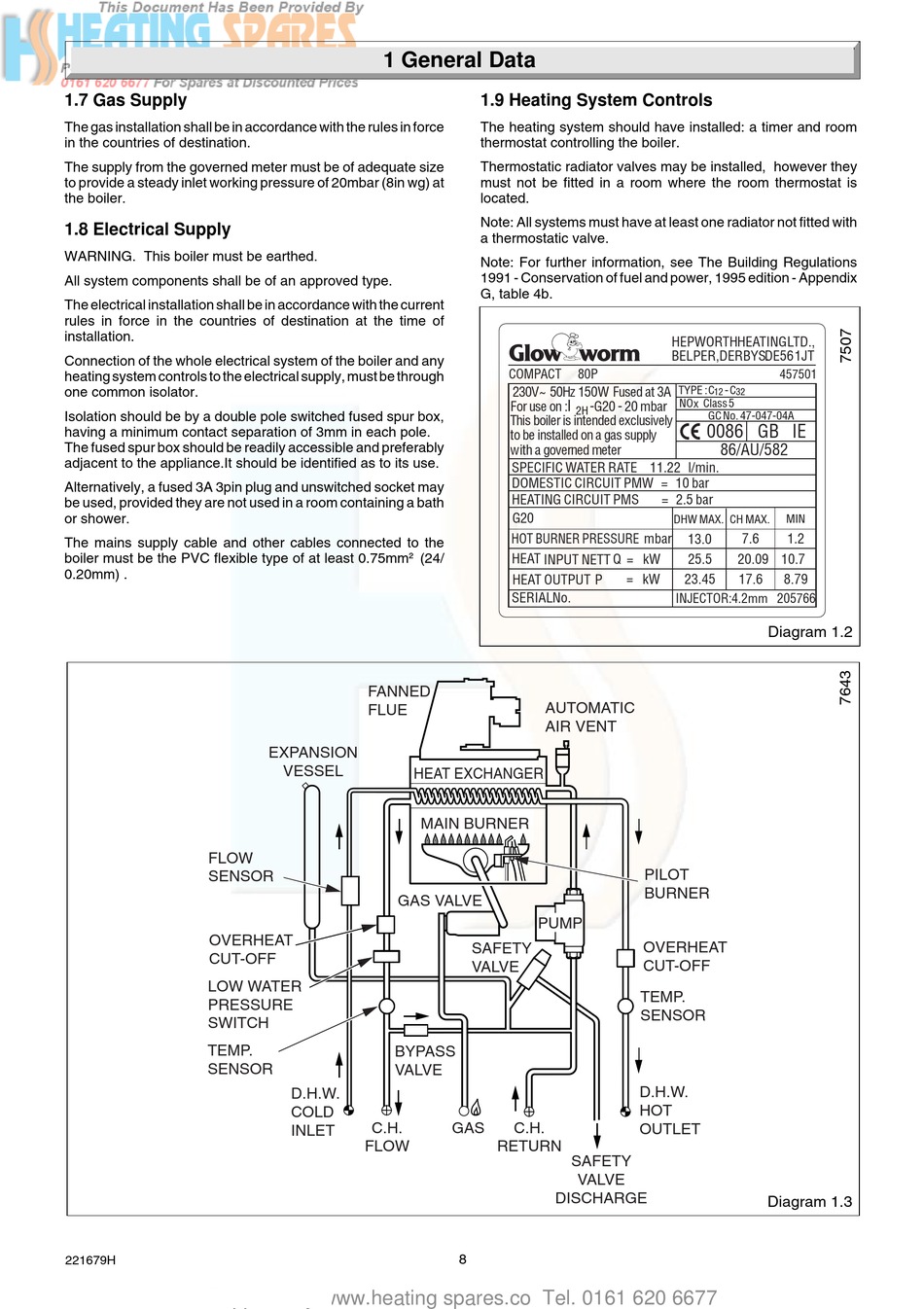

Heating System Controls; Gas Supply; Electrical Supply - Glow-worm COMPACT 80p Instructions For Use, Installation & Servicing

1.7 Gas Supply

The gas installation shall be in accordance with the rules in force
in the countries of destination.
The supply from the governed meter must be of adequate size
to provide a steady inlet working pressure of 20mbar (8in wg) at
the boiler.

1.8 Electrical Supply

WARNING. This boiler must be earthed.
All system components shall be of an approved type.
The electrical installation shall be in accordance with the current
rules in force in the countries of destination at the time of
installation.
Connection of the whole electrical system of the boiler and any
heating system controls to the electrical supply, must be through
one common isolator.
Isolation should be by a double pole switched fused spur box,
having a minimum contact separation of 3mm in each pole.
The fused spur box should be readily accessible and preferably
adjacent to the appliance.It should be identified as to its use.
Alternatively, a fused 3A 3pin plug and unswitched socket may
be used, provided they are not used in a room containing a bath
or shower.
The mains supply cable and other cables connected to the
boiler must be the PVC flexible type of at least 0.75mm
0.20mm) .
