GreenWorks 51047 Operator's Manual
GreenWorks 51047 Operator's Manual

GreenWorks 51047 Operator's Manual

150 bar / 420 l/h 160 bar / 460 l/h

Advertisement

Quick Links

150 Bar / 420 L/H
160 Bar / 460 L/H
ELECTRIC PRESSURE WASHER
51047/51057
OPERATOR'S MANUAL
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Read all safety rules and instructions carefully before operating this tool.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 51047 and is the answer not in the manual?

Questions and answers

Summary of Contents for GreenWorks 51047

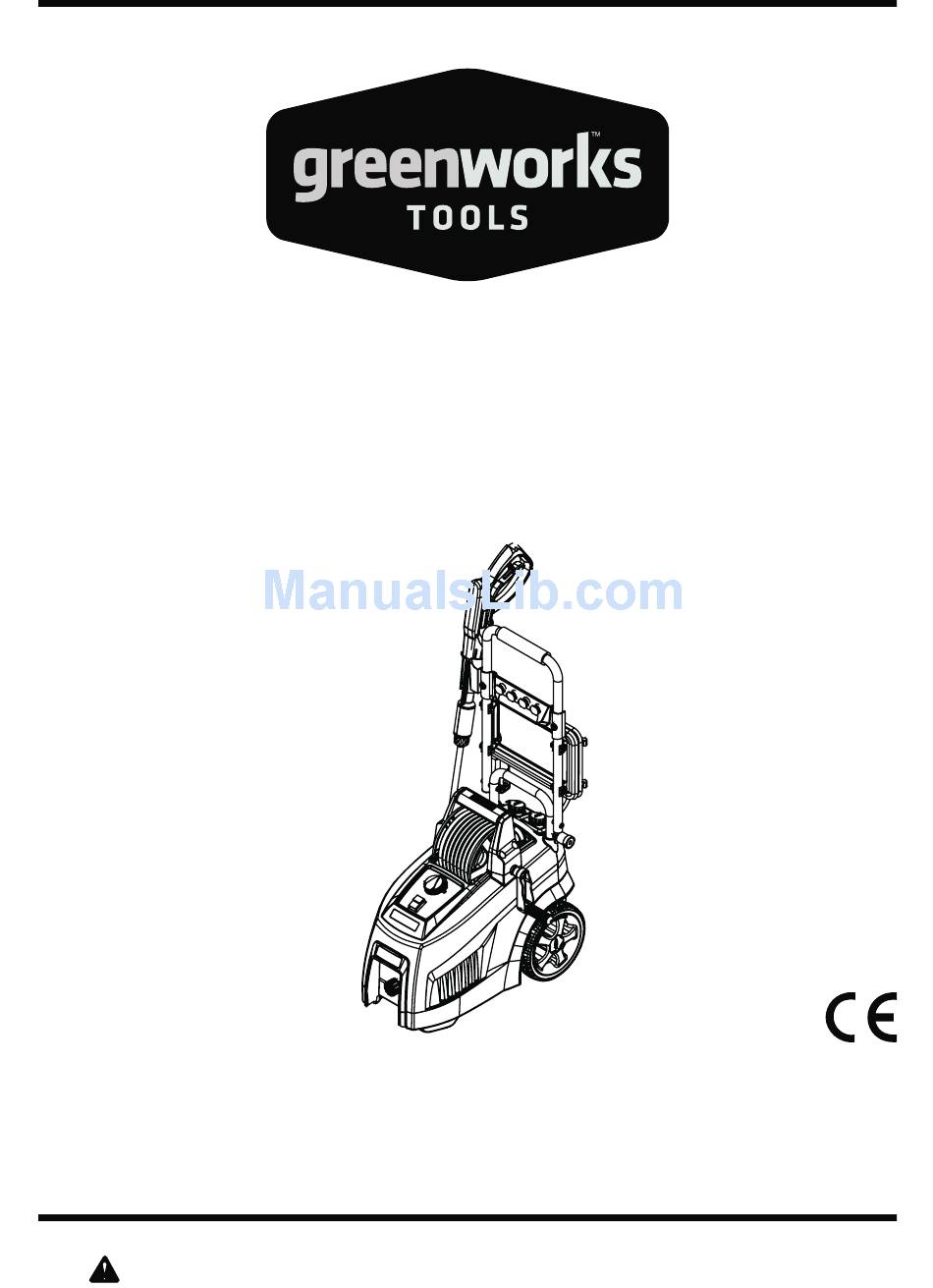

  • Page 1 150 Bar / 420 L/H 160 Bar / 460 L/H ELECTRIC PRESSURE WASHER 51047/51057 OPERATOR’S MANUAL TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Read all safety rules and instructions carefully before operating this tool.
  • Page 5 If you do not under stand the warnings and instructions in the operator’s manual, do not use this product. Call Greenworks Tools customer service for assistance. WARNING: The operation of any power tool can result in Fig.1...
  • Page 6: Product Specifications

    ENGLISH(Original Instructions) PRODUCT SPECIFICATIONS Maximum Water Temperature (51047) ......................Rated Voltage 220-240V / 50 HZ ........................Rated Pressure 120 B ar ......................Permissible Pressure 15 0 B a r ........................Power Rating 2500 W ......................Maximum Water Flow 4 2 0 L / H ....................
  • Page 7 ENGLISH(Original Instructions) DESCRIPTION KNOW YOUR PRESSURE WASHER See Figure 2. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the task you are attempting. Nozzle storage bar Handle assembly Spray wand...
  • Page 8 Fig. 3 ASSEMBLING THE SPRAY WAND S ee Figure 4 If in doubt,call Greenworks Tools Customer Service for Push the end of the spray wand into the trigger assistance. Operation of a product that may have been handle and rotate clockwise to secure.
  • Page 9 CONNECTING HIGH PRESSURE HOSE TO TRIGGER (See Figure 5.) HANDLE Align the pressure hose with the trigger handle and push up and into position. (Fig. 5.1) With hose pushed into position on the trigger handle secure in place by turning the hose lock clockwise until fully tightened.
  • Page 10 C A U T I O N NOTE: If the pressure washer pulsates and the water stream is intermittent turn the pressure washer off and Use only approved pressure washer cleaners.Do not continue to bleed air out of the system. Ensure to check use bleach,chlorine,or any cleaners containing acids.
  • Page 11 NOZZLE APPLICATION W A R N I N G Red - Stream nozzle (0° ) Hold the trigger handle securely with both hands.Expect The Red 0 degree tip provides a straight line of spray. ‡ It provides the highest amount of pressure. It is best the trigger handle to move when the trigger is pulled due used for removing hard, stuck-on grime or dirt.
  • Page 12 Fig. 10...
  • Page 13 ENGLISH(Original Instructions) PROBLEM POSSIBLE CAUSE SOLUTION Motor will not start. On/Off switch is in the Turn switch to the “ON” “OFF” (O) position. ( | ) position. Power cord is not plugged in. Plug in power cord. Electrical outlet does not supply Try a different outlet.
  • Page 14 ENGLISH(Original Instructions) PROBLEM POSSIBLE CAUSE SOLUTION (continued) Discharge nozzle is ob Blow out or remove debris with a fine needle. Output pressure varies structed. high and low. Calcified gun,hose or power Run distilled vinegar through nozzle. detergent tank. Detergent is not coming Select the correct tank, either A Is detergent tank seletor on out.
  • Page 15 ENGLISH(Original Instructions) PROBLEM POSSIBLE CAUSE SOLUTION Motor buzzes but fails Supply voltage below mini- Verify that only the pressure to run. mum. washer is running on this circuit. System has residual pres- Turn unit “OFF”, squeeze trigger sure. on spray wand to release pres- sure, then turn unit “ON”...
  • Page 16: Limited Warranty

    This warranty is valid only in the European Union, Australia and New Zealand. Outside these areas, please contact your authorized Ryobi dealer to determine if another warranty applies. AUTHORISED SERVICE CENTRE To find an authorised service centre near you, visit Greenworks.com.
  • Page 17: Exploded View

    ENGLISH(Original Instructions) EXPLODED VIEW...
  • Page 18: Parts List

    ENGLISH(Original Instructions) PARTS LIST Item Part number Description 31222365 Trigger gun handle assy 31202365 lance assy 31111316A turbo nozzle 31104668 power cord assy 33210365 screw 34135671 wheel cap 34123372 brush connector 34122372 rotating brush 33127302A inlet nut 34102662 34213301A o ring screw 33177307 31901301A...
  • Page 19 ENGLISH(Original Instructions) PARTS LIST 19-6 34216302A o ring 34104668 lower housing 32907301A clip 32308316A washer 33202661 axile 33302365 u clip 31902363-1 wheel 34102668 bracket 32242668 screw 34212363 o ring 34211365 ring 33101365 outlet connector 34210301 grommet 34101668 main switch bracket 3030175 heat shrinkage tube 3411275...
  • Page 20 ENGLISH(Original Instructions) PARTS LIST 33302363 u clip 34116363 button 34118363 swivel 34207363 o ring 3220335 screw 34106668 handle 34113365 ring 34104372 soap tank A 34216363 34203363 grommet 34111363 nozzle plate 34112363 gun holder 0 degree nozzle 31200363 34139319 soap nozzle 25 degree nozzle 31225363 40 degree nozzle...
  • Page 21 ENGLISH(Original Instructions) PARTS LIST 36511154 wire cap 32202316A screw 31107668 internal wire 32912301A lock washer 34117661 wire box 34226316A gasket 34103668 fender 31125668 pump and motor assy(150Bar) 31150665 pump and motor assy(160Bar) 34107668 capacitor cover 36402668 capacitor wire 32212316A scew 34118661 clip 34119316A...
  • Page 22 ENGLISH(Original Instructions) PARTS LIST 33203363 clip 34123363 hose reel middle body 34124363 handle sleeves 34127363 34126363 hose reel handle 31103668 high pressure hose assy lower handle 33303671 31102661 latch assy 33305365 washer velco strap 34906363-1 34120365 gun holder 34121365 lance holder 34202363 foam grip 31107667...
