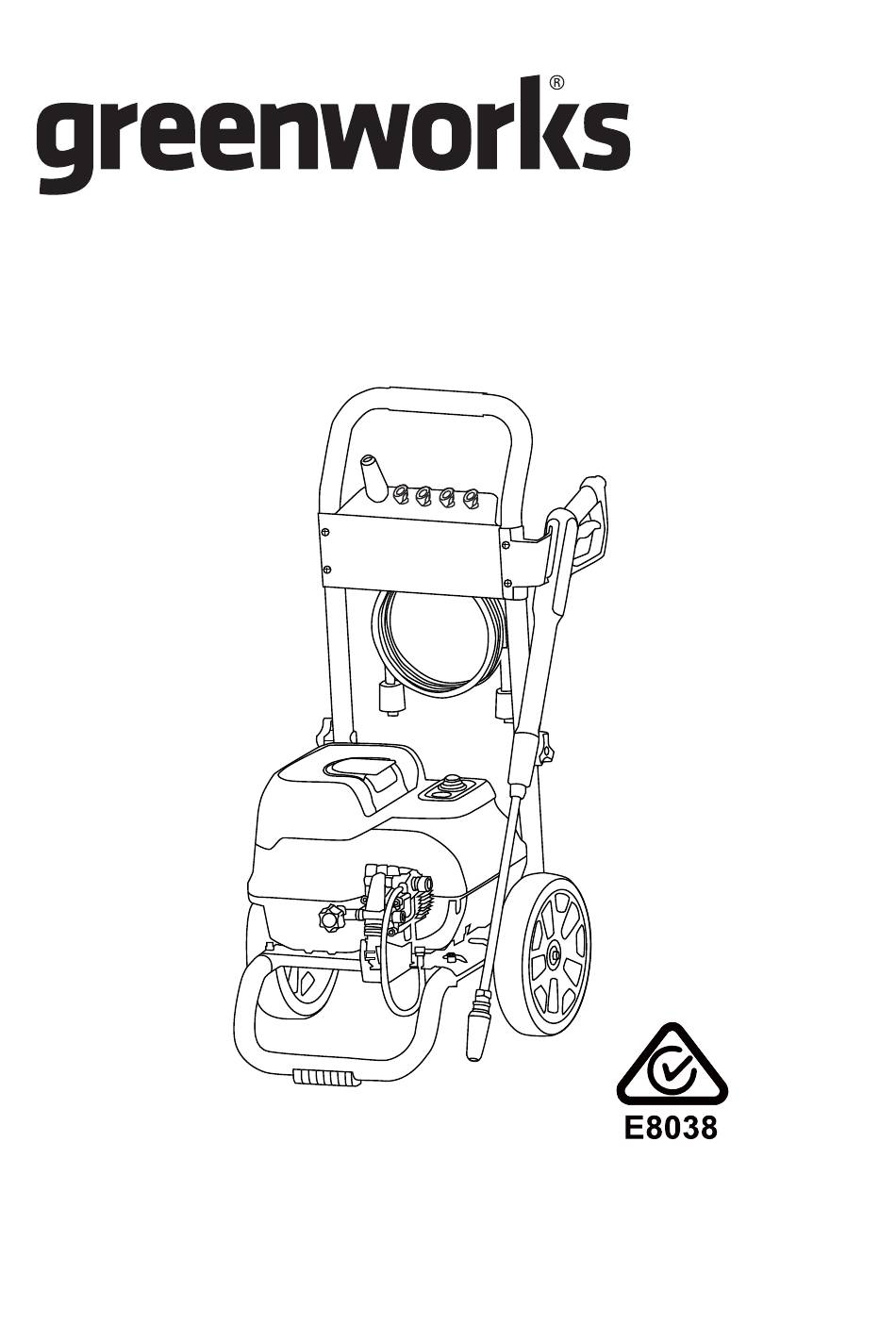

- Page 1 5121502AU 5121507AU OPERATOR MANUAL PRESSURE WASHER Greenworks Australia A Division Jak Max P/L 380 Foley’s Road Derrimut Victoria, Australia 3026 www.greenworks australia .com PWC401...
-
Page 2: Table Of Contents
English Connect the water supply to the Description.........2 machine ..........7 Intended use..........2 8.10 Install the self-siphon hose...... 7 Overview..........2 8.11 Install the battery........8 Safety definitions...... 2 Operation........8 General power tool safety Start the product........8 warnings........2 Stop the product........ -
Page 3: Description
English CAUTION DESCRIPTION Used if there is a risk of damage to the product, other INTENDED USE materials, or the adjacent area, if the instructions in the manual are not obeyed. The product is used to clean vehicles, boats, buildings, porches, decks, patios and driveways. -
Page 4: Symbols On The Product
English Shorting the battery terminals together may cause • Save these instructions. Refer to them frequently burns or a fire. and use them to instruct other users. If you lend someone this product, lend them these instructions • Under abusive conditions, liquid may be ejected also. -
Page 5: Battery Disposal
English BATTERY DISPOSAL UNPACK THE PRODUCT WARNING Greenworks Australia is a member of the B-Cycle Battery Recycling Program. Please dispose of your Make sure that you correctly assemble the product batteries responsibly and ethically. For more information before use. on where to recycle your old batteries - please visit our website greenworksaustralia.com or ecobatt.net/drop-... -
Page 6: Install The Upper Handle
English Note: Pull on the spray wand to be certain it is properly secured. WARNING Make sure that the connection has no leakage. INSTALL THE SPRAY TIP 1. Pull back and hold the quick-connect collar on the spray wand. INSTALL THE UPPER HANDLE 1. -
Page 7: Install The Air Release Valve
English INSTALL THE AIR RELEASE 8.6.1 NOZZLE TYPE VALVE SPRAY TIP APPLICATION Note: Use air release valve when using siphon tube. Yellow - Narrow fan tip (15° ) • Before installing the included high pressure hose, • The Yellow pressure washer tip place the air release valve onto the pressure washer provides the most pressure with outlet and tighten by hand. -
Page 8: Connect The Water Supply To The Machine
English 1. Uncoil the high pressure hose and attach the end of 4. Insert and turn the quick connector adapter (18) hose to base of spray gun. Tighten by hand. clockwisely to the water inlet 2. Attach the other end of the high pressure hose to 5. -
Page 9: Install The Battery
English Note: When you use the self-siphon hose, you should notice the below instructions: • The vertical height of the self-siphon hose can’t exceed 4 ft. 4. When you hear a click, the batteries are installed. • The internal self-siphon hose size is 0.03 ft (10 mm) 5. -
Page 10: Stop The Product
English WARNING If you do not use the product： • Stop the product. • Turn the water supply off. • Remove the battery. • Pull the spray gun trigger to release the remaining pressure from the product. • Engage the trigger safety lock-out on the spray gun. -
Page 11: Energy Saving Function
English 9.4.1 UNLOCK THE SPRAY GUN TRIGGER 1. Push the trigger safety lock-out (20) up and into its original position. CHANGE THE SPRAY TIP 2. Pull and hold the spray gun trigger (19) to start the machine. WARNING 9.4.2 LOCK THE SPRAY GUN TRIGGER Before you change the spray tip: 1. -
Page 12: Use The Pump Protector
English WARNING 11.1 SPRAY TIP MAINTENANCE Replace the power cord by an approved service WARNING center. Never point the spray wand at your face. USE THE PUMP PROTECTOR 11.1.1 REMOVE THE SPRAY TIP • Regular use of pump protector (not included) can prolong the life of the product by removing hard 1. -
Page 13: Move The Product
English • Disconnect the garden hose from product. 12.1 MOVE THE PRODUCT • Wind the high pressure hose. • Clean housing and the plastic components with a • Point the spray wand in a safe direction. moist and soft cloth. •... -
Page 14: Troubleshooting
English TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The motor does not start. You do not install the battery. Install two batteries with full power. The power switch is on, but you do Pull the spray gun trigger. not pull the spray gun trigger. The product does not reach high The diameter of garden hose is too Replace with a 1”... -
Page 15: Technical Data
WARRANTY (The full warranty terms and conditions can be found on Greenworks website www.greenworksaustralia.com) The Greenworks warranty is 4 years on the product, and 2 years on batteries and chargers (consumer/ private usage) from the date of purchase. This warranty covers manufacturing faults. - Page 16 www. .com greenworksaustralia P0806120-00 Rev B...
