Summary of Contents for GreenWorks 5100744

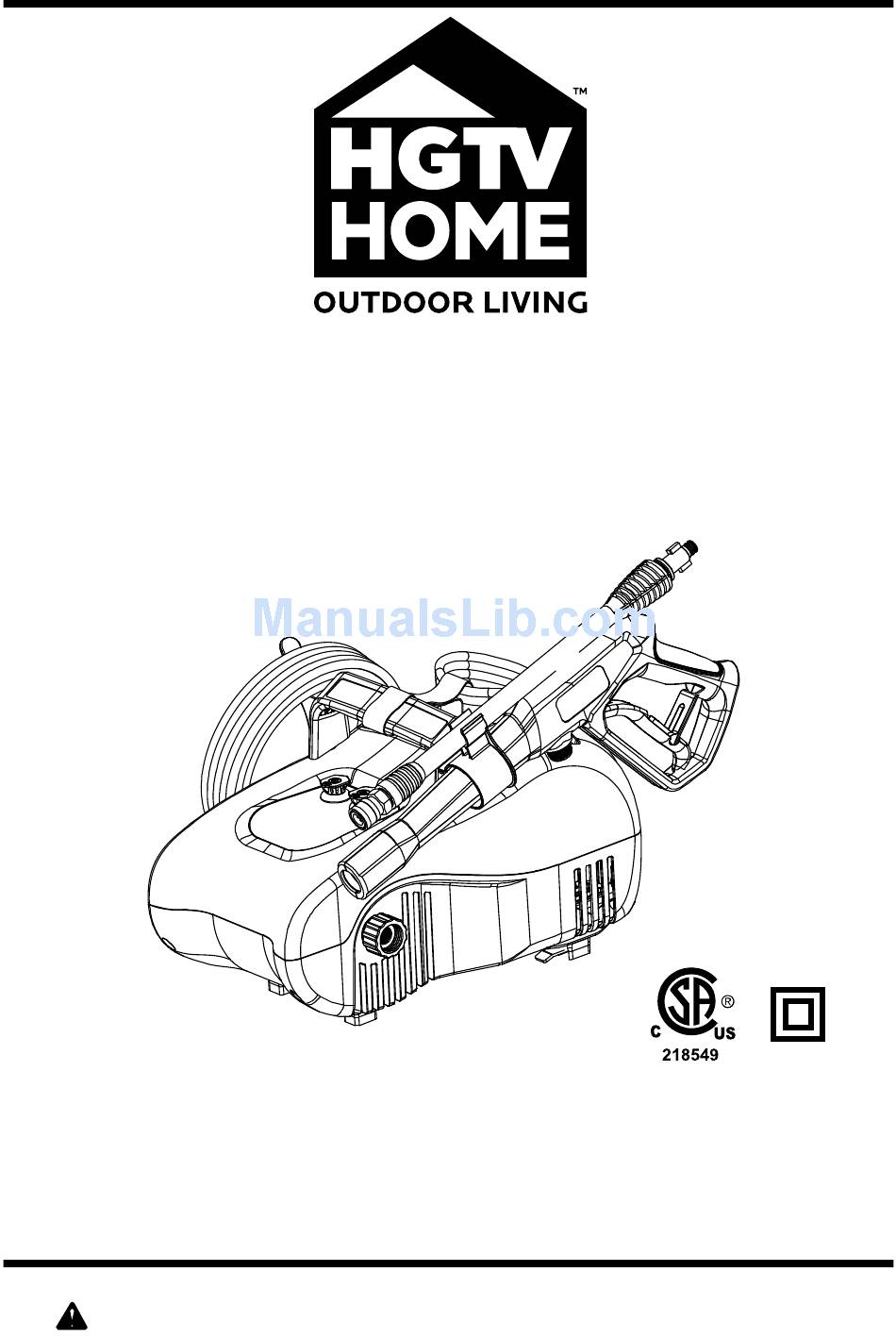

- Page 1 1600 PSI / 1.3 GPM ELECTRIC PRESSURE WASHER 5100744 OPERATOR’S MANUAL TOLL-FREE HELPLINE: 1-888-909-6757 www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction.......................... 3 Important Safety Instructions....................3 - 4 Specific Safety Rules......................5 - 6 Symbols ..........................7- 8 Electrical......................... 9 -10 Know Your Pressure Washer ....................11 Assembly ........................12-16 Operation........................17-20 Maintenance ......................... 21-23 Troubleshooting ......................24-26 Warranty ..........................2 7 Exploded View ........................ -
Page 3: Introduction
IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read and understand all instructions. Failure to follow all instructions listed below may result W A R N I N G When using this product basic precautions should always be followed, including the following READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT •... -
Page 4: Extension Cords
IMPORTANT SAFETY INSTRUCTIONS EXTENSION CORDS DO NOT USE WITH EXTENSION CORD, USE DIRECT INTO RECEPTACLE. by a marking “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only extension cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords. -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES • Know your product. Read the operator’s manual care-fully. Learn the machine’s applications and limitations as well as the specific potential hazards related to this product. • To reduce the risk of injury, keep children and visitors away. All visitors should wear safety glasses and be kept a safe distance from work area. - Page 6 SPECIFIC SAFETY RULES plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way. • Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
-
Page 7: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-pretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amps Current Hertz Frequency (cycles per second) -
Page 8: Exploded View
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper inter-pretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION To reduce the risk of injury or damage, DO NOT USE ACIDS, ALKALINES,BLEACHES, Chemical Burns SOLVENTS, FLAMMABLE MATERIAL, OR... -
Page 9: Electrical
ELECTRICAL W A R N I N G The double insulated system is intended to protect the user from shock resulting from a break in the product’s internal insulation. Observe all normal safety precautions to avoid electrical shock. DOUBLE INSULATED Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. - Page 10 ELECTRICAL W A R N I N G Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury.
-
Page 11: Know Your Pressure Washer
KNOW YOUR PRESSURE WASHER The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. (See Figure 2.) 1. -
Page 12: Assembly
ASSEMBLY W A R N I N G Do not use this product if any parts on the Packing List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. - Page 13 ASSEMBLY CONECTING THE WATER SUPPLY TO THE PRESSURE WASHER (See Figure 3.) C A U T I O N : Always observe all local regulations when connnecting hoses to the water main. Some areas have restrictions against connecting directly to public drinking water supply to prevent the feedback of chemicals into the drinking water supply.
- Page 15 ASSEMBLY DETERGENT BOTTLE (See Figure 7.) • • free connection. • Fill bottle with approved pressure washer detergents / soaps only. Fig. 7 INSTALLING GUN HOLDER AND CORD RETENTION CLIPS ( See Figure 8.) • Slide round gun holder onto bracket Fig.
-
Page 16: Assembly
ASSEMBLY CONNECTING THE GARDEN HOSE (See Figure 9.) C A U T I O N : Always observe all local regulations when connecting hoses to the water main. Some areas have restrictions against connecting directly to public drinking water supply to prevent the feedback of preventer is usually permitted. -
Page 17: Operation
OPERATION W A R N I N G Do not allow familiarity with the product to make you careless.Remember that a careless fraction of W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury. -
Page 18: Starting And Stopping
OPERATION STARTING AND STOPPING THE PRESSURE WASHER (See Figure 11.) C A U T I O N : Do not run the pump without the water supply connected and turned on. • Connect the garden hose. • Turn the garden hose on then squeeze the high pressure trigger to relieve air pressure. Once a steady stream of water appears, release the trigger. - Page 19 OPERATION USING THE SPRAY WAND TRIGGER (See Figure 12.) For greater control and safety, keep both hands on the trigger handle at all times. • Pull back and hold the trigger to operate the pressure washer. • TO ENGAGE THE LOCK-OUT: •...
- Page 20 OPERATION W A R N I N G NEVER change nozzles without engaging the lock-out on the trigger handle and NEVER point the wand at your face or at others. The quick-connect feature contains small springs that could eject the nozzle with some force. Failure to heed this may cause personal injury. •...
-
Page 21: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts.Use of any other parts may create a hazard or cause product damage.. W A R N I N G Always wear eye protection marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. - Page 22 MAINTENANCE • Unplug the pressure washer. • Turn off the pressure washer and shut off the water supply. Pull trigger to release water pressure. • Remove the nozzle from the spray wand. NOTE: Never point the spray wand at your face Using a straightened paper clip or nozzle cleaning tool (not provided), free any foreign materials clogging or restricting the nozzle.
- Page 23 MAINTENANCE TAKING A BREAK If leaving the pressure washer unattended then ensure the following. • Engage gun safety lock. • Turn unit to “OFF” (O) position. • Unplug the power cord from the outlet. C A U T I O N : The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.
-
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor will not start. On/Off switch is in the Turn switch to the “ON” “OFF” (O) position. ( | ) position. Squeeze gun trigger. Power cord is not plugged in. Plug in power cord. Extension cord is too long. Replace extension cord with either Extension cord is not proper a 25’... - Page 25 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Output pressure varies Discharge nozzle is ob- Blow out or remove debris with a high and low. (contin- structed. ued) Run distilled vinegar through nozzle. detergent tank. Diameter of garden hose is Add more detergent. too small.
-
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Supply voltage below mini- Verify that only the pressure mum. washer is running on this circuit. Motor buzzes but fails to run. System has residual pres- Turn unit “OFF”, squeeze trigger sure. on spray wand to release pres- sure, then turn unit “ON”... -
Page 27: Warranty
WARRANTY HGTVHOME™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of one (1) years against defects in materials, parts or workmanship. HGTVHOME™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. - Page 28 PARTS LIST...
-
Page 29: Part List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 31111368 Soap tank 31203670 High pressure hose assembly 34109380 Cord hook 34105677 Handle 31200363 0° nozzle 31225363 25° nozzle Seal ring 34200663 Upper housing 341011603 32209302A Screw 34102677 Lower housing 31901677 Water inlet filter 33177307 Water inlet connector 34213301A... - Page 30 TOLL-FREE HELPLINE: 1-888-909-6757 www.GreenWorksTools.com Rev: 03 (13-12-03) Printed in China on 100% Recycled Paper...
