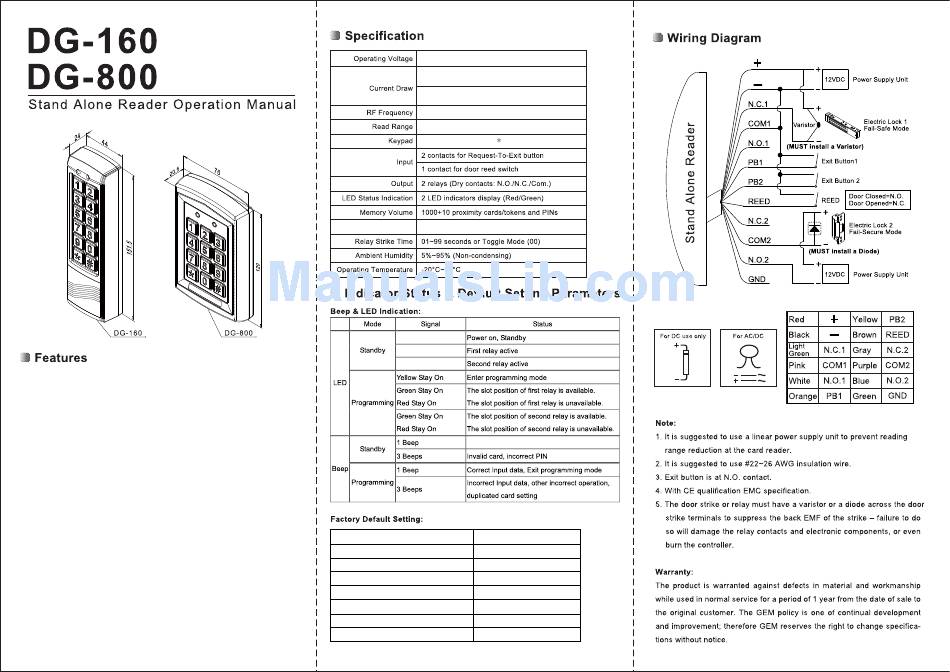

Gianni DG-160 Operation Manual

1. Memory volume up to 1000+10 proximity cards/tokens and PINs. Reading time
approx. 0.5 seconds.
2. Access modes:
a. Only Proximity Card
b. PIN or Proximity Card (default setting)
c. PIN + Proximity Card
3. Logical memory prevents duplicated card setting.
4. Lockout Function: The controller will lockout for 60 seconds after entering
invalid PINs or reading invalid cards for 5 times. (The keypad doesn't beep
during the period of time).
5. Controller with keypad sound to avoid incorrect key-in.
6. Additional input for anti-tailgating function to ensure high security access
control.
7. Built-in anti-tamper switch.
8. Non-volatile memory stores all code settings, even in the event of total power
failure or controller not in use for a long time.
9. Dual relays to control door lock and other security devices.
10. Aluminum alloy casing with vandal resistant screws for enhanced safety and
durability.
11. Epoxy sealed for waterproof.
12. Slim-type keypad design for narrow door-frames (DG-160).
12~24VAC/DC
DG-160: Pull In:60mA/12VDC,Holding:40mA/12VDC
Pull In:30mA/24VDC,Holding:20mA/24VDC
DG-800: Pull In:100mA/12VDC,Holding:70mA/12VDC
Pull In:50mA/24VDC,Holding:35mA/24VDC
EM 125KHz
5 cm (In noise-free environment)
Backlight 12-digit (0~9, ,#)
Relay Rating
Max.2A/30VDC ; 0.6A/120VAC
Right Green Stay On
All LEDs Stay On
Red Stay On
Valid card, press key, enter programming mode
Access Mode PIN or Proximity Card
Format
All Bits
Card Storage (MAX. 1000+10pcs) None
Master Code 1234 (4 digits)
Relay Strike Time (Time Delay Setting) 1 second
Pressed Key Time Delay
5 seconds (Fixed)
PIN Code Input Waiting Time 5 seconds
Programming Mode Time Delay 30 seconds (Fixed)
Diode
