Gianni DG-160 Operation Manual

Gianni dg-160; dg-800 stand alone reader

Advertisement

Quick Links

DG-160
DG-800
Stand Alone Reader Operation Manual
DG-160

Features

1. Memory volume up to 1000+10 proximity cards/tokens and PINs with the
programming time up to 0.5 second.
2. Access modes:
a. Only Proximity Card (default setting)
b. PIN or Proximity Card
c. PIN + Proximity Card
3. Logical memory prevents duplicated card setting.
4. Lockout Function: The controller will lockout for 60 seconds after entering
5 times invalid PINs or unsuccessful card attempts. (The keypad without
beep during the period time).
5. Controller with keypad sound to avoid incorrect key-in.
6. Additional input for anti-tailgating function to ensure high security access
control.
7. Built-in tamper switch.
8. Non-volatile memory stores all code settings for a long time, even in the
event of total power failure.
9. Dual relays to control door lock and other security devices.
10. Aluminum alloy casing designed with vandal resistant screws for
enhanced safety and durability.
11. Slim type keypad design (DG-160).
12. Epoxy sealed for waterproof.

Specifications

Operating Voltage
Current Draw
RF Frequency
Read Range
Keypad
Input
Output
LED Status Indication
Memory Volume
Relay Electric Current
Relay Strike Time
Ambient Humidity
Operating Temperature
Indicator Status & Default Setting Parameters
Beep & LED Indication:
Mode
Right Green Stay On Power on, Standby
DG-800
Standby
Green On
Red On
Yellow Stay On
LED
Green Stay On
Programming
Red Stay On
Green Stay On
Red Stay On
1 Beep
Standby
3 Beeps
Beep
1 Beep
Programming
3 Beeps

Factory Default Setting:

Access Mode
Format
Card Storage (MAX. 1000+10 pcs)
Master Code
Alarm Function (All)
Relay Strike Time (Time Delay Setting)
Pressed Key Time Delay
PIN Code Input Waiting Time
Programming Mode Time Delay
12VDC
DG-160 (Pull In: 110mA/12VDC, Holding: 50mA/12VDC)
DG-800 (Pull In: 90mA/12VDC, Holding: 30mA/12VDC)
EM 125KHz
5 cm (In noise-free environment)
Backlit 12-digit (0~9,*,#)
2 contacts for Request-To-Exit button
1 contact for door reed switch
2 relays (Dry contacts: N.O./N.C./Com.)
2 LED indicators display (Red/Green)
1000+10 proximity cards/tokens and PINs
Max. 2A/30VDC, 0.6A/120VAC
01~99 seconds or Toggle Mode (00)
5%~95% (Non-condensing)
-20°C~70°C
Signal
Status
First relay active
Second relay active
Enter programming mode
The slot position of first relay is available.
The slot position of first relay is unavailable.
The slot position of second relay is available.
The slot position of second relay is unavailable.
Valid card, key press, enter programming mode
Invalid card, incorrect PIN
Correct Input data, Exit programming mode
Incorrect Input data, other incorrect operation,
duplicated card setting
Proximity Card Only
All Bits
None
12345 (5 digits)
Function disabled
1 second
5 seconds (Fixed)
5 seconds
30 seconds (Fixed)

Wiring Diagram

+ +
+
12VDC
N.C.1
+
COM1
Varistor
N.O.1
(MUST install a Varistor)
Exit Button1
PB1
Exit Button 2
PB2
REED
REED
+
N.C.2
COM2
(MUST install a Diode)
N.O.2
+
12VDC
GND
+
Red
Black
For DC use only
For AC/DC
Light
N.C.1
Green
Pink
COM1
White
N.O.1
PB1
Orange
Note:
1. It is suggested to use a linear power supply unit to prevent reading
range reduction at the card reader.
2. It is suggested to use #22~26 AWG insulation wire.
3. Exit button is at N.O. contact.
4. With CE qualification EMC specification.
5. The door strike or relay must have a varistor or a diode across the door
strike terminals to suppress the back EMF of the strike – failure to do
so will damage the relay contacts and electronic components, or even
burns the controller.
Warranty:
The product is warranted against defects in material and workmanship
while used in normal service for a period of 1 year from the date of sale to
the original customer. The GEM policy is one of continual development
and improvement; therefore GEM reserves the right to change specifica-
tions without notice.
Power Supply Unit
Electric Lock 1
Fail-Safe Mode
Door Closed=N.O.
Door Opened=N.C.
Electric Lock 2
Fail-Secure Mode
Power Supply Unit
Yellow
PB2
Brown
REED
Gray
N.C.2
Purple
COM2
Blue
N.O.2
GND
Green

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-160 and is the answer not in the manual?

Questions and answers

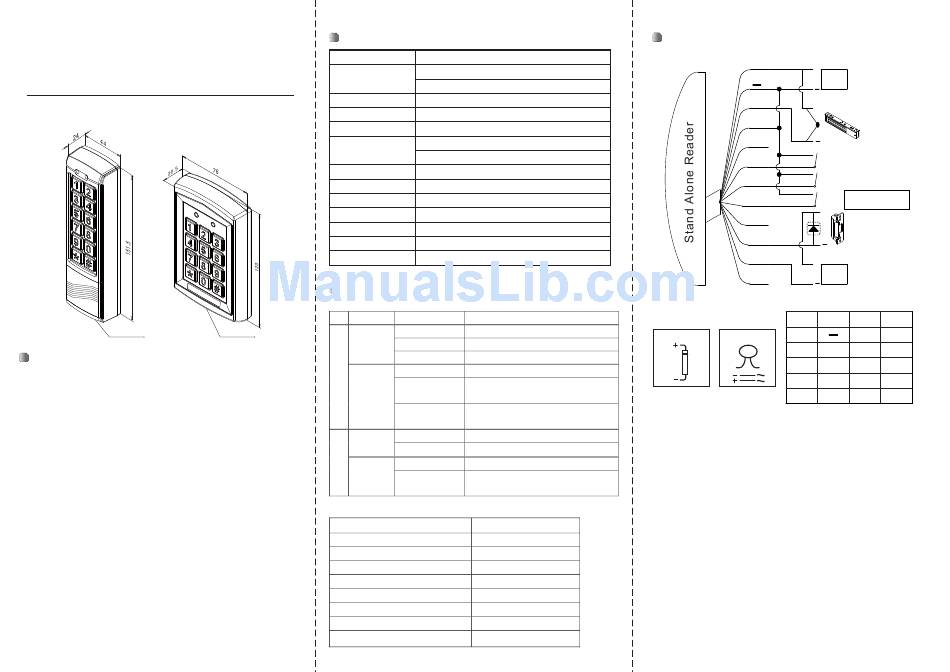

Summary of Contents for Gianni DG-160
