Gianni DG-20 Operation Manual

Digital keypad
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

I.Features:
1.
Allows up to 99 access PINs.
2.
3 LED indicators & buzzer for status indication . Keypad with beep sound.
Maximum 20-digit-code password anti-trailing design or lockout for 30 seconds after
3.
entering 5 times invalid PINs (The keypad without beep sound during the period time).
4.
Non-volatile memory due to power failure.
5.
Built-in tamper switch.
6.
AUX signal outputs : In-built additional outputs for contact with other access control
devices.
II. Specifications:
Copyright All Rights Reserved.
P-MU-DG-20 Ver. A Publish: 2010.06.28
DG-20 Digital Keypad
Operation Manual

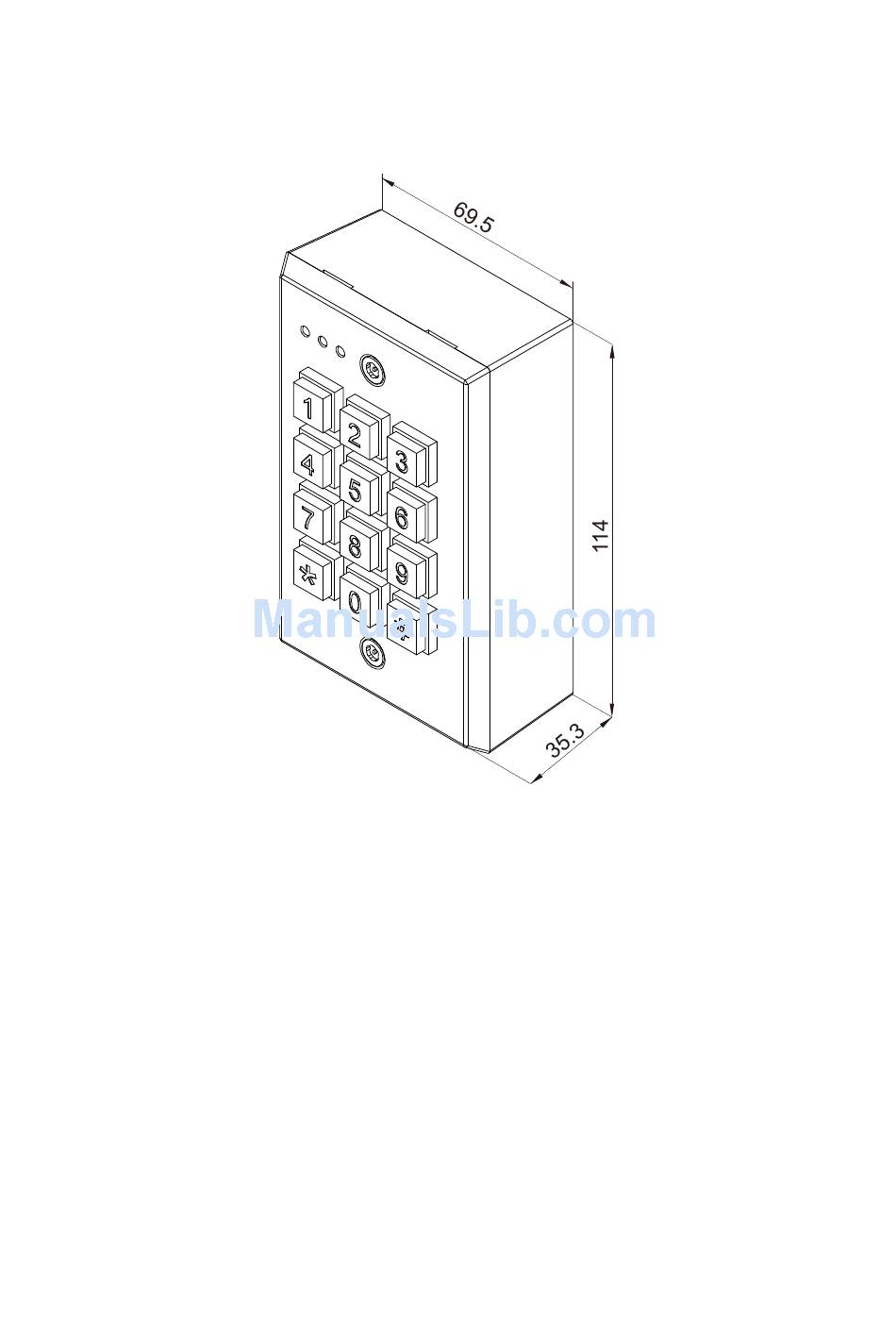

Unit: mm
Page: - 1 -/ 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DG-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Gianni DG-20

Summary of Contents for Gianni DG-20

  • Page 1 5 times invalid PINs (The keypad without beep sound during the period time). Non-volatile memory due to power failure. Built-in tamper switch. AUX signal outputs : In-built additional outputs for contact with other access control devices. II. Specifications: Copyright All Rights Reserved. P-MU-DG-20 Ver. A Publish: 2010.06.28 Page: - 1 -/ 5...
  • Page 2 Master Code 1234 (4 digit) Relay Strike Time (Time Delay Setting) 5 seconds Pressed Key Time Delay 60 seconds (Fixed) Programming Mode Time Delay 90 seconds (Fixed) Copyright All Rights Reserved. P-MU-DG-20 Ver. A Publish: 2010.06.28 Page: - 2 -/ 5...
  • Page 3 1. 20 PINs mode : Enter programming mode, press *53 - 0, exit programming mode. (Press upto 20 PINs and will lockout 30 seconds in the absence of valid PINs). Copyright All Rights Reserved. P-MU-DG-20 Ver. A Publish: 2010.06.28 Page: - 3 -/ 5...
  • Page 4 (When apply 11-2 and 11-3 can not allow 000 for time delay setting). 13. Adding AUX output PINs Enter programming mode, press *40 - (4 digit ~ 8 digit) - exit programming mode. Copyright All Rights Reserved. P-MU-DG-20 Ver. A Publish: 2010.06.28 Page: - 4 -/ 5...
  • Page 5 1 year from the date of sale to the original customer. The GEM policy is one of continual development and improvement ; therefore GEM reserves the right to change specifications without notice. Copyright All Rights Reserved. P-MU-DG-20 Ver. A Publish: 2010.06.28 Page: - 5 -/ 5...
