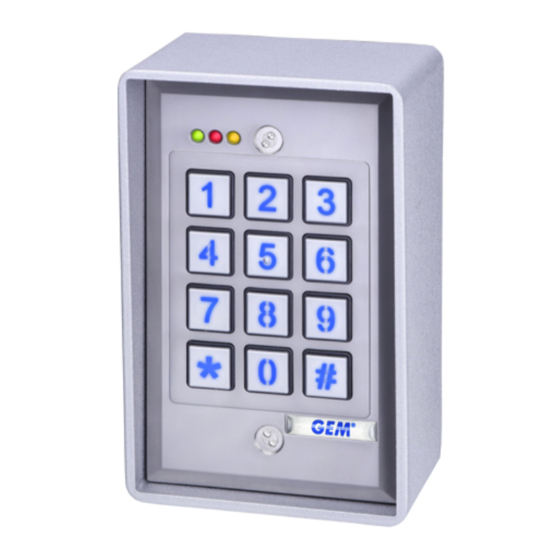

Gianni DG-15LD Operation Manual

DG-15LD
Digital Keypad Operation Manual

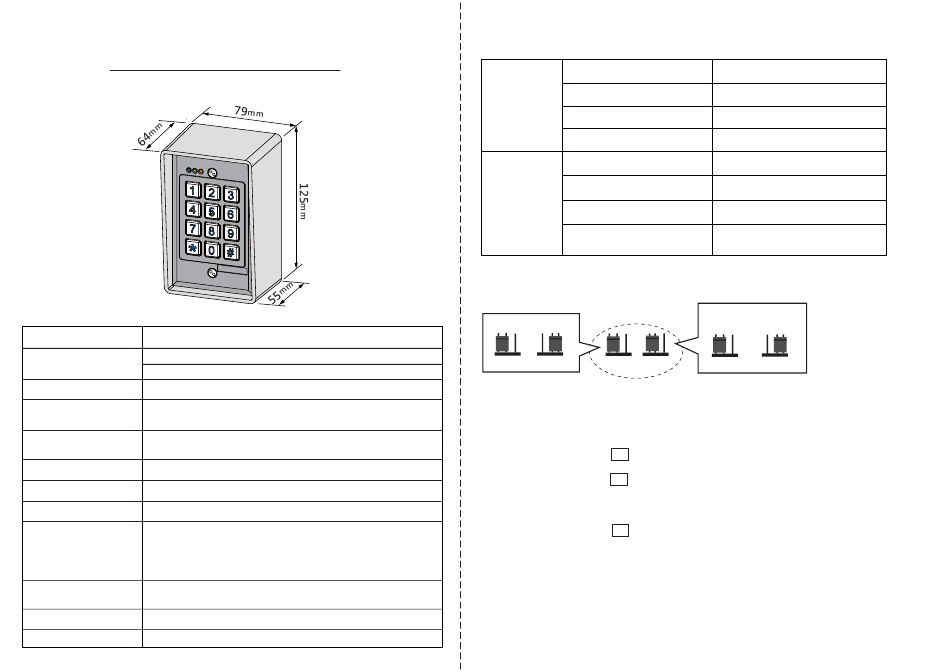

Specifications
Operating Voltage 12~24 VDC
Active: 90mA/12VDC, Standby: 40mA/12VDC
Current Draw
Active: 120mA/24VDC, Standby: 60mA/24VDC
Keypad 12-key keypad (0~9,＊,＃)
3 LED indicators display
LED Status Indication
(Power: Blue, Relay 1: Green, Relay 2: Amber)
1 Contact for Request-To-Exit button
Input
1 Contact for door reed switch
Output 2 relays (Dry contacts: N.O./N.C./Com.)
Relay Strike Time 01~99 seconds or Toggle Mode (00)
Relay Electric Current 3A/120VDC , 3A/24VDC
200+10 PINs (＊001~＊210)
Relay 1 is controlled by user ＊001~＊200（＊300）
Memory Volume
Relay 2 is controlled by user ＊201~＊210（＊301）
Sign: Relay1(＊300); Relay2(＊301)
Non-volatile memory protects programmed information in
EPROM
case of power loss.
Ambient Humidity
0%~95% (Non-condensing)
Operating Temperature
-20ºC~+70ºC
Copyright All Rights Reserved. P-MU-DG-15LD Published:2020.11.25
LED Indicators & Keypad Sounds
Blue On
Green On
LED
Amber On
Blue + Green + Amber
1 Beep
2 Beeps
Beep
3 Beeps
5 Beeps

Operation Instruction

Jumper Setting

4 or 5 digit setting
4 digit 5 digit 4OR5 RESET
1. Default value: "1234" for 4 digits, "12345" for 5 digits
It's suggested to clear all stored codes prior to new setting.
2. Master Code reset to default value"12345":
a. Insert the jumper into 1-2 (5 beeps)
b. Master Code reset to default value
c. Insert the jumper into 2-3
3. Clear all PINs:
a. Reset Master Code to default value (5 beeps, clearing all PINs)
b. Insert the jumper into 2-3

a - Enter Programming Mode

Enter the master code twice (Default value: "1234" or "12345) to enter programming
mode (2 beeps)
Note: 1. After 60 seconds if no data entered, the keypad will automatically exit the
programming mode.
2. The controller will be locked for 60 seconds upon 30 consecutive wrong master
code entries.
Copyright All Rights Reserved. P-MU-DG-15LD Published:2020.11.25
Power on, Stand by
Relay 1 active
Relay 2 active
Programming mode
Valid key press
Enter, exit setting mode
Incorrect operation
Master Code back to 12345
(Cleared settings)
Master Code reset to
default value"12345"
Reset Normal
