Gianni DG-900 CiTiPROX Operation Manual

ANSI standard faceplate can mount
directly into electrical box for flush mount.
I. Features
Two-In-One MIFARE & FeliCa compatible proximity reader
1.
Memory volume up to 1000+10 proximity cards/tokens and PINs with the programming time up
2.
to 0.5 second
Access modes:
3.
a. Only Proximity Card〈default setting〉 b. PIN or Proximity Card c. PIN + Proximity Card
Logical memory prevents duplicated card setting
4.
Lockout Function: The controller will lockout for 60 seconds after entering 5 times invalid PINs or
5.
cards. (The keypad without beep sound during the period time)
Controller with keypad sound to avoid incorrect key-in
6.
Additional input for anti-tailgating function to ensure high security access control
7.
Non-volatile memory stores all code settings for a long time, even in the event of total power
8.
failure
Dual relays to control door lock and other security devices
9.
II. Specifications
Operating Voltage 12VDC
Current Draw Pull-In: 60mA/12VDC
RF Frequency MIFARE(13.56MHz) & FeliCa(13.56MHz)
LED Status Indication 3 LED indicators display (Green/Yellow/Red)
Memory Volume 1000+10 Proximity cards/tokens + PINs
Relay Electric Current Max. 1A/30VDC; 0.3A/125VAC; 0.3A/110VDC
Relay Strike Time 01~99 seconds or Toggle Mode(00)
Ambient Humidity 5%~95% (Non-condensing)
Operating Temperature -20°C~70°C
Copyright All Rights Reserved.
P-MU-DG-900 Ver.D Publish: 2010.08.23
DG-900 CiTiPROX Stand Alone Reader
Operation Manual
Holding: 40mA/12VDC
Read Range 5~7cm (In noise-free environment)
Keypad 12-digit (0~9,＊,＃)
Input 2 contacts for Request-to-exit button, 1 contact for door reed switch
Output 2 relays (N.O./N.C./Com. Dry Contact)

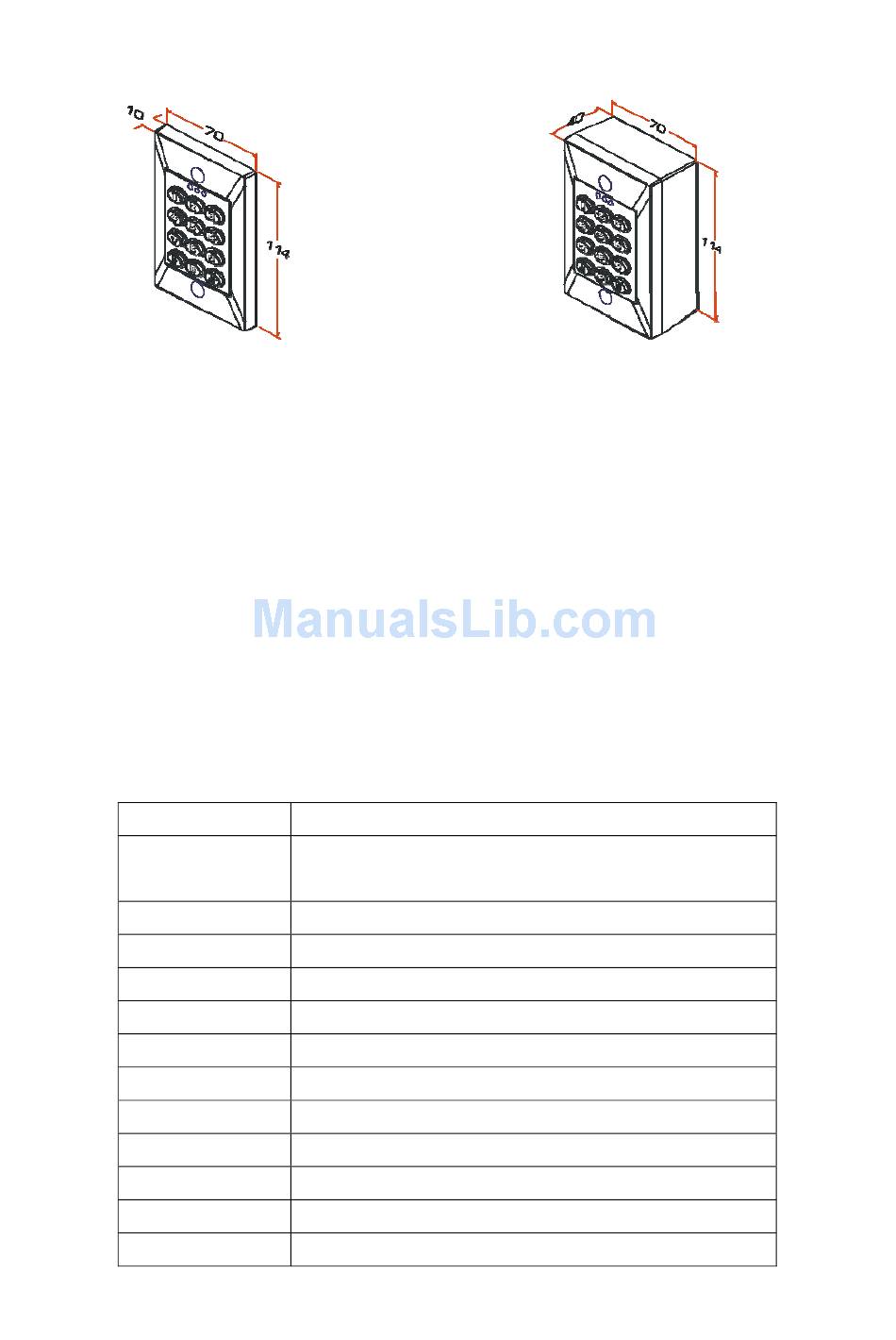

Optional SMB-101 back case for surface mount.
Unit: (mm)
