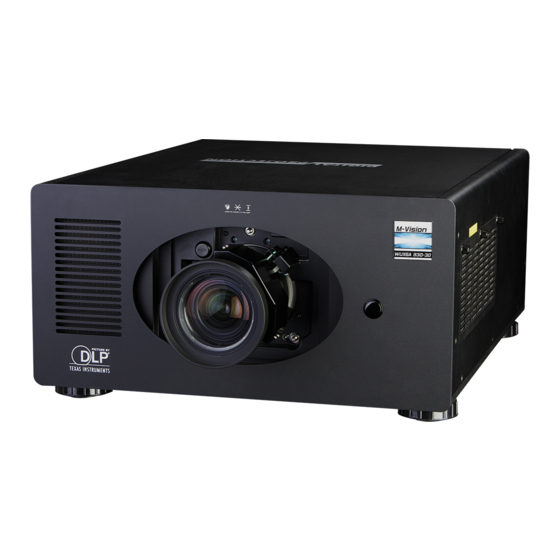

Digital Projection M-Vision 930 Series User Manual
High brightness digital video projector
Hide thumbs
Also See for M-Vision 930 Series:
- User manual (215 pages) ,
- Important information manual (30 pages) ,
- User manual (138 pages)
Related Manuals for Digital Projection M-Vision 930 Series
Summary of Contents for Digital Projection M-Vision 930 Series
-

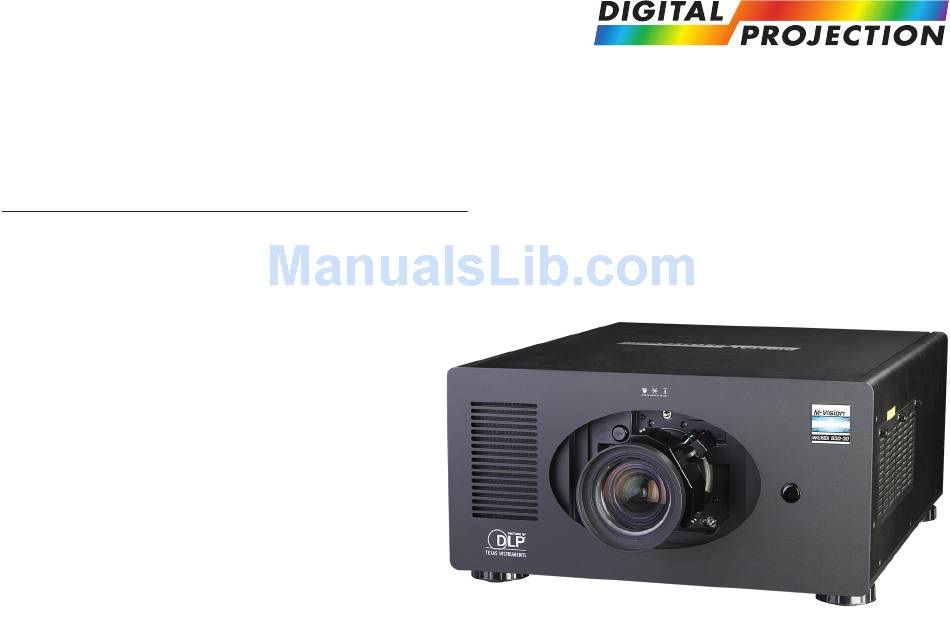

Page 1: User Manual
USER MANUAL INSTALLATION AND QUICK-START GUIDE CONNECTION GUIDE OPERATING GUIDE M-Vision 930 Series REMOTE COMMUNICATIONS GUIDE REFERENCE GUIDE High Brightness Digital Video Projector Rev A January 2014 115-072A... - Page 2 NOTE: this symbol indicates that there is some important information that you should read. Product revision Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice.
- Page 3 NoTOC M-Vision 930 Series M-Vision 930 Series Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: • Support for most 3D formats. • HDBaseT® for transmission of uncompressed High Definition Video up to 100 m from the source.
-
Page 4: Table Of Contents
Digital Projection Digital Projection NoTOC M-Vision 930 Series M-Vision 930 Series CONTENTS CONNECTION GUIDE INSTALLATION AND QUICK-START GUIDE ................21 ......1 SIGNAL INPUTS ................23 WHAT’S IN THE BOX? ..............3 Digital inputs and outputs ..............23 CONNECTING THE POWER SUPPLY ..........4 Analog inputs .................. - Page 5 Digital Projection Digital Projection NoTOC M-Vision 930 Series M-Vision 930 Series CONTENTS (continued) OPERATING GUIDE Advanced Image menu ............... 46 ................31 ..................46 Colorspace USING THE MENUS ..............33 ..................... 46 Gamma Opening the OSD ................33 ................46 Color Temperature Opening a menu..................
- Page 6 Digital Projection Digital Projection NoTOC M-Vision 930 Series M-Vision 930 Series CONTENTS (continued) REMOTE COMMUNICATIONS GUIDE ..........63 SCREEN REQUIREMENTS ............87 Fitting the image to the DMD™ ............87 INTRODUCTION ................65 ............87 WUXGA images displayed full width Network setup ..................65 ........
- Page 7 Digital Projection Digital Projection NoTOC M-Vision 930 Series M-Vision 930 Series CONTENTS (continued) APPENDIX C: SUPPORTED SIGNAL INPUT MODES ....108 TECHNICAL SPECIFICATIONS ..........134 2D input modes ................. 108 Models....................134 3D input modes ................. 110 Inputs and outputs................135 Bandwidth ..................
- Page 8 Digital Projection M-Vision 930 Series This page is intentionally left blank.
-
Page 9: Installation And Quick-Start Guide
INSTALLATION AND QUICK-START GUIDE M-Vision 930 Series High Brightness Digital Video Projector Rev A January 2014... - Page 10 Digital Projection IN THIS GUIDE Installation and Quick-Start Guide M-Vision 930 Series IN THIS GUIDE What’s In The Box? ..................... 3 Connecting The Power Supply ................ 4 Projector Overview ..................... 5 Front and rear views ....................Control panel indicators .....................
-
Page 11: What's In The Box
Digital Projection WHAT’S IN THE BOX? Installation and Quick-Start Guide M-Vision 930 Series What’s In The Box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. You should save the original box and packing materials, in case you ever need to ship your projector. -
Page 12: Connecting The Power Supply
Digital Projection CONNECTING THE POWER SUPPLY Installation and Quick-Start Guide M-Vision 930 Series Connecting The Power Supply Notes Make sure the voltage switch is Use only the power cable set to the correct voltage. provided. Make sure the mains power button is in the OFF position. -
Page 13: Projector Overview
Digital Projection PROJECTOR OVERVIEW Installation and Quick-Start Guide M-Vision 930 Series Projector Overview Notes Front and rear views Air inlet Lens Front infrared window Air inlet Connection panel Control panel Rear infrared window Front view Lamp enclosures with air outlets... -
Page 14: Control Panel Indicators
Digital Projection PROJECTOR OVERVIEW Installation and Quick-Start Guide M-Vision 930 Series Control panel indicators Notes During power on, all LED indicators become lit while the projector is INPUT During startup all LEDs light up running a self test. at the same time to indicate the projector is carrying out a self-test. -
Page 15: Remote Control
Digital Projection REMOTE CONTROL Installation and Quick-Start Guide M-Vision 930 Series Remote Control Notes POWER Power ON / OFF Input selection SOURCE Input selection buttons: Select input source. • - HDMI 1 • - VGA Navigation MUTE • Navigate through the menus with the arrows, confirm your choice with... - Page 16 Digital Projection REMOTE CONTROL Installation and Quick-Start Guide M-Vision 930 Series Remote control - continued from previous page Notes POWER BRIGHTNESS Bring up the Brightness control, then adjust the value with the LEFT RIGHT arrow buttons. SOURCE O-SCAN Switch to...
-
Page 17: Infrared Reception
Digital Projection REMOTE CONTROL Installation and Quick-Start Guide M-Vision 930 Series Infrared reception Notes The projector has infrared sensors at the front and back. 40° The angle of acceptance is 40°. Make sure that the remote control is within the angle of acceptance The infrared receivers are disabled when trying to control the projector. -
Page 18: Positioning The Screen And Projector
Digital Projection POSITIONING THE SCREEN AND PROJECTOR Installation and Quick-Start Guide M-Vision 930 Series Positioning The Screen And Projector Notes Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that Always allow the projector the projector is level, and perpendicular to the screen. -
Page 19: Changing The Lens
Digital Projection CHANGING THE LENS Installation and Quick-Start Guide M-Vision 930 Series Changing The Lens Notes Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. Remove the lens cover. -
Page 20: Removing The Lens
Digital Projection CHANGING THE LENS Installation and Quick-Start Guide M-Vision 930 Series Removing the lens Notes Push the button all the way in. Before changing the lens, Rotate the lens counterclockwise until it disengages. always make sure the projector Slowly pull the lens out... -
Page 21: Changing The Filters
Digital Projection CHANGING THE FILTERS Installation and Quick-Start Guide M-Vision 930 Series Changing The Filters Notes The projector contains four identical replaceable filters accessible via the air inlets. To replace the filters on the right-hand side of the projector: Before changing the filters,... - Page 22 Digital Projection CHANGING THE FILTERS Installation and Quick-Start Guide M-Vision 930 Series To replace the filters on the left-hand side of the projector: Notes Loosen the three screws on the cover of the air inlet and remove the cover. 2.
-
Page 23: Changing The Lamps
Digital Projection CHANGING THE LAMPS Installation and Quick-Start Guide M-Vision 930 Series Changing The Lamps Notes Before removing the lamp modules for replacement, turn off the projector and unplug the power cord. Let the projector cool for approximately 60 minutes. - Page 24 Digital Projection CHANGING THE LAMPS Installation and Quick-Start Guide M-Vision 930 Series Notes Insert the new lamps (Fig 4). Fig. 4 Fig. 5 Replace the lamp covers (Fig. 5). Firmly secure the screws on the lamp covers (Fig. 6). Fig. 6...
-
Page 25: Operating The Projector
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision 930 Series Operating The Projector Notes Switching the projector on See also Connecting The Power Supply Connect the power cable between the mains supply and the projector. Switch on at the switch next to the power connector. -
Page 26: Selecting An Input Signal Or Test Pattern
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision 930 Series Selecting an input signal or test pattern Notes Input signal • Connect an image source to the projector. The signal should be automatically detected by the projector, and should be displayed within For full details of how to use the two or three seconds. -
Page 27: Adjusting The Lens
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision 930 Series Adjusting the lens Notes The lens can be adjusted using Lens Control from the Alignment menu, or using Lens Control LENS button on the remote control. Both methods open the Lens Control setting in the OSD. -
Page 28: Adjusting The Image
Digital Projection OPERATING THE PROJECTOR Installation and Quick-Start Guide M-Vision 930 Series Adjusting the image Notes Orientation • Main Menu This can be set from the Alignment menu. Setup Highlight Projector Mode and choose from Front Tabletop Front Ceiling Rear Tabletop... -
Page 29: Connection Guide
CONNECTION GUIDE M-Vision 930 Series High Brightness Digital Video Projector Rev A January 2014... - Page 30 Digital Projection IN THIS GUIDE Connection Guide M-Vision 930 Series IN THIS GUIDE Signal Inputs ....................... 23 Digital inputs and outputs ..................Analog inputs ......................EDID on the DVI and VGA inputs ................Using HDMI/DVI switchers with the projector ............
-
Page 31: Signal Inputs
Digital Projection SIGNAL INPUTS Connection Guide M-Vision 930 Series Signal Inputs Notes Digital inputs and outputs For a complete listing of pin configurations for all signal and control connectors, see Appendix HDBaseT E: Wiring Details in the Reference Receives digital signal from HDBaseT-compliant Guide. -
Page 32: Analog Inputs
Digital Projection SIGNAL INPUTS Connection Guide M-Vision 930 Series Analog inputs Notes Component 1 Component 2 For a complete listing of pin configurations for all signal and The Component inputs use colorspaces assigned from control connectors, see Appendix setting in the menu. -
Page 33: Edid On The Dvi And Vga Inputs
Digital Projection SIGNAL INPUTS Connection Guide M-Vision 930 Series EDID on the DVI and VGA inputs Notes If you are using a computer DVI card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the projector. -
Page 34: 3D Connections
Digital Projection SIGNAL INPUTS Connection Guide M-Vision 930 Series 3D connections Notes 3D sources up to 60Hz requiring frame doubling and left/right interleaving Connect to either of the following inputs on the connection panel: For a complete listing of pin •... -
Page 35: 3D Sync
Digital Projection SIGNAL INPUTS Connection Guide M-Vision 930 Series 3D Sync Notes 3D Sync in • Sync input signal. For a complete listing of pin configurations for all signal and Connect the 3D sync from your graphics control connectors, see Appendix card or server. -
Page 36: Control Connections
Digital Projection CONTROL CONNECTIONS Connection Guide M-Vision 930 Series Control Connections Notes • For a list of all commands used to All of the projector’s features can be controlled via a LAN control the projector via LAN, see connection, using commands described in the Remote Remote Communications Communications Guide. -
Page 37: Lan Connection Examples
Digital Projection CONTROL CONNECTIONS Connection Guide M-Vision 930 Series LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using a standard internet browser or a terminal-emulation program. Crossed LAN cable Computer Projector Un-crossed LAN cables... -
Page 38: Rs232 Connection Example
Digital Projection CONTROL CONNECTIONS Connection Guide M-Vision 930 Series RS232 connection example Notes Null-modem cable Computer Projector RS232 Rev A January 2014... -
Page 39: Operating Guide
OPERATING GUIDE M-Vision 930 Series High Brightness Digital Video Projector Rev A January 2014... - Page 40 Digital Projection IN THIS GUIDE Operating Guide M-Vision 930 Series IN THIS GUIDE Using The Menus ....................33 Adaptive Contrast ......................Opening the OSD ...................... RGB Adjust ........................Opening a menu ......................Fine Sync ........................Exiting menus and closing the OSD ...............
-
Page 41: Using The Menus
Digital Projection USING THE MENUS Operating Guide M-Vision 930 Series POWER Using The Menus Notes INPUT Opening the OSD SOURCE Access the various menus using either the projector control panel or the remote MENU STBY control. On either device, ENTER •... -
Page 42: Inside A Menu
Digital Projection USING THE MENUS Operating Guide M-Vision 930 Series Inside a menu Notes MENU>>Sub-menu>> When you open a menu, the page consists of the following elements: • Highlighted Item Value Title bar at the top Shows which menu (and sub-menu) you have accessed. -
Page 43: Editing Projector Settings
Digital Projection USING THE MENUS Operating Guide M-Vision 930 Series Editing projector settings Notes MENU>> If the highlighted menu item is a setting with a list of values to choose from, you can change the value in two different ways. -
Page 44: Using The Projector
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Using The Projector Notes The projector settings are grouped into seven menus as shown in the illustration. MAIN If no input is connected, the Image Advanced Image menus will IMAGE be unavailable. -
Page 45: Aspect Ratio
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Aspect Ratio MAIN >> Choose from: For examples of how the different • 16:9 aspect ratios affect screen Aspect Ratio 16:9 • dimensions, see... -
Page 46: Presets
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Presets MAIN >> Presets >> The current image settings can be saved as a preset, which you can recall later. The default settings can be recalled at any time as well. -
Page 47: Overscan
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Overscan MAIN >> Use this setting to compensate for noisy or badly defined image edges. Aspect Ratio 16:10 Crop removes unwanted artifacts from the edges of your image by cropping the edges. -
Page 48: 3D Control
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes 3D Control MAIN >> 3D Control >> Use this sub-menu to enable, disable and set up 3D input, as follows: For further information about •... -
Page 49: 3D Types
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes 3D types In most situations you can use the Auto setting to have the projector automatically detect the format. Otherwise, consider the notes below to help you set up the 3D input manually. -
Page 50: Some 3D Settings Explained
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Some 3D settings explained Fully on Right Left In order to achieve maximum light Dark Time output and a smooth grayscale, Ghosting can be caused by the left and right images... -
Page 51: Frame Rate Multiplication In 3D Images
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Frame rate multiplication in 3D images When displaying a low frame rate 3D video, the projector multiplies the frame rate to obtain a flicker-free image. For... -
Page 52: Input Select
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Main menu continued from previous page Notes Input Select MAIN >> This setting controls the input source used by the projector. Choose from the Signal Inputs in the following input sources:... -
Page 53: Image Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Image menu Notes IMAGE >> Highlight the setting you wish to edit, and then press ENTER/SELECT , or the arrow button to open the slider. LEFT RIGHT Picture Mode Bright Use the arrow buttons to adjust the slider. -
Page 54: Advanced Image Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Advanced Image menu Notes Colorspace ADVANCED IMAGE >> In most cases, the Auto setting determines the correct colorspace to use. If it does not, you can choose a specific colorspace:... -
Page 55: Dynamic Black
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Advanced Image menu continued from previous page Notes Dynamic Black Allows for increased contrast in darker scenes by modulating the light source. Adaptive Contrast Expands the light and dark portions of the contrast curve of the image, depending on the mean luminance of the image. -
Page 56: Fine Sync
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Advanced Image menu continued from previous page Notes Fine Sync ADVANCED IMAGE >> Fine Sync >> • V Position H Position Some of the settings within the Fine Set the sliders as required. -
Page 57: Lamps Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Lamps menu Notes • Lamp Mode will automatically set the lamp power to 80%. Normal will set the power LAMPS >> to 92%.Set to if you wish to adjust the power manually, from 80% to Power 100%. -
Page 58: Alignment Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu Notes This menu contains the following settings: • ALIGNMENT >> Lens Control Adjust Focus Zoom Lens Shift Lens Control < Enter > • Center Lens Center Lens < Enter >... -
Page 59: Lens Control
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Lens Control Lens Control This settings operates in Zoom/Focus Adjustment Shift Adjustment mode. Zoom When in Zoom/Focus Adjustment mode: • Use the arrow buttons to adjust... -
Page 60: Warp
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Warp ALIGNMENT >> Warp >> • Keystone Some controls in the menu Warp Compensate for any distortion caused by the projector being in a different... - Page 61 Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Keystone settings Projector to the left The projector is positioned to the left of the screen. To correct, apply a positive Horizontal Keystone...
- Page 62 Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Rotation DMD™ area The DMD™ is not rotated. It still covers the area that would be occupied by the image without correction. Rotated image The image is smaller than the surrounding DMD™...
- Page 63 Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Corners For each corner, apply horizontal and / or vertical correction as necessary to restore the rectangular shape of the image. In this illustration, the top right corner requires both horizontal and vertical correction.
-
Page 64: Blanking
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Blanking ALIGNMENT >> Blanking >> Select the edge you wish to blank and adjust the slider to determine the amount. Bottom Left Right Reset <... -
Page 65: Edge Blend
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Edge Blend ALIGNMENT >> Edge Blend • Status Enable and disable Edge Blend Status • White Level White Level < Enter > Determine the width of the blended regions Black Level <... - Page 66 Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Alignment menu continued from previous page Notes Black Level ALIGNMENT >> Edge Blend >> Black Level Black in the blended regions appears less dark than in the rest of the image.
-
Page 67: Control Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Control menu Notes • OSD Settings Adjust the appearance and position of the on-screen display. CONTROL >> • Blank Screen OSD Settings < Enter > Choose from Splash Black Blue... -
Page 68: Osd Settings
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Control menu continued from previous page Notes OSD Settings CONTROL >> OSD Settings • Menu Position Select from the list where you want the OSD to appear on the screen. -
Page 69: Service Menu
Digital Projection USING THE PROJECTOR Operating Guide M-Vision 930 Series Service menu Notes This menu gives information about software and hardware configuration, input source and lamp operating times. It also allows you to restore the factory default SERVICE >> settings. - Page 70 Digital Projection Operating Guide M-Vision 930 Series This page is intentionally left blank.
-
Page 71: Remote Communications Guide
REMOTE COMMUNICATIONS GUIDE M-Vision 930 Series High Brightness Digital Video Projector Rev A January 2014... - Page 72 Digital Projection IN THIS GUIDE Remote Communications Guide M-Vision 930 Series IN THIS GUIDE Introduction ......................65 Network setup ......................Serial Port setup ......................Remote communications commands ..............Examples ........................Command Guide ....................67 MAIN menu ........................ IMAGE menu ......................
-
Page 73: Introduction
Digital Projection INTRODUCTION Remote Communications Guide M-Vision 930 Series Introduction Notes The projector can be controlled by using an external control system or a PC via an RS232 or LAN interface, using a terminal-emulation program. For details on connecting the... -
Page 74: Remote Communications Commands
Digital Projection INTRODUCTION Remote Communications Guide M-Vision 930 Series Remote communications commands Notes Commands are used to simulate menu operations and determine the settings of the projector, and use the following format: To set the default value of a •... -
Page 75: Command Guide
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Command Guide Notes <command> <operator> <values> MAIN menu aspect 0 = 16:9 1 = TheaterScope 2 = 4:3 3 = 4:3 Narrow 4=16:10 5=5:4 6=Native recall.mem 0 = Preset A... -
Page 76: Image Menu
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> MAIN menu (continued) 3d.syncdelay 3d.syncdelay 0 to 200 (integer) will only be carried out if the projector is in 3D 3d.24p.mode 0 = 96Hz mode. 1 = 144Hz input.sel... -
Page 77: Advanced Menu
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> ADVANCED menu color.space 0 = Auto 1 = YPbPr 2 = YCbCr 3 = RGB-PC 4 = RGB-Video gamma 0 = 1.0 1 = 1.8 2 = 2.0 3 = 2.2... -
Page 78: Lamps Menu
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> LAMPS menu lamps 0 = Single 1 = Dual 2 = Lamp1 3 = Lamp2 lamp.mode 0 = Economy 1 = Standard 2 = Power lamp.power... -
Page 79: Control Menu
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> ALIGNMENT menu (continued) pattern 0 = Off 1 = White 2 = Black 3 = Red 4 = Green 5 = Blue 6 = Cyan 7 = Magenta... -
Page 80: Service Menu
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> CONTROL menu (continued) proj.mode 0 = Front Tabletop 1 = Front Ceiling 2 = Rear Tabletop 3 = Rear Ceiling auto.poweroff 0 = off 1 = on auto.poweron... -
Page 81: Miscellaneous Commands
Digital Projection COMMAND GUIDE Remote Communications Guide M-Vision 930 Series Notes <command> <operator> <values> Miscellaneous commands power.on (execute) power.off (execute) status 0 = standby 1 = warm up 2 = imaging 3 = cooling 4 = error shutter 0 = off 1 = on net.ipaddr... - Page 82 Digital Projection Remote Communications Guide M-Vision 930 Series This page is intentionally left blank.
-
Page 83: Reference Guide
REFERENCE GUIDE M-Vision 930 Series High Brightness Digital Video Projector Rev A January 2014... - Page 84 Digital Projection IN THIS GUIDE Reference Guide M-Vision 930 Series IN THIS GUIDE The DMD™ ......................78 Appendix A: Lens Part Numbers ..............102 Choosing A Lens ....................80 Appendix B: Lens Charts ................103 Basic calculation ....................... How to use the lens charts ...................
- Page 85 Digital Projection IN THIS GUIDE Reference Guide M-Vision 930 Series IN THIS GUIDE (continued) Appendix E: Wiring Details ................117 Signal inputs and outputs ..................VGA ..........................HDMI 1 and 2 ....................... DVI ..........................Component 2 ....................... Control connections ....................
-
Page 86: The Dmd
Digital Projection THE DMD™ Reference Guide M-Vision 930 Series The DMD™ Notes A DMD™ (Digital Micromirror Device™) is a true digital light modulator which utilises an array of up to 2.3 million moving aluminium mirrors, with each one representing a pixel in the final projected image. The outermost micromirrors in the array remain inactive (pond of mirrors) and are not used in constructing the image. - Page 87 Digital Projection THE DMD™ Reference Guide M-Vision 930 Series Notes Depending on the voltage polarity applied, each mirror will either tilt to the left to produce a bright pixel or to the right for a dark pixel. When light is applied to the complete DMD™, only the light redirected from a mirror tilting to the left is projected.
-
Page 88: Choosing A Lens
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Choosing A Lens Notes A number of lenses are available. Which lens you choose depends on the screen size, image aspect ratio, throw distance and light output. For information about individual lens... -
Page 89: Basic Calculation
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Basic calculation Notes Identify the required lens by calculating the throw ratio. A throw ratio is the ratio of the throw distance to the screen width: The basic calculation on this page... -
Page 90: Basic Calculation Example
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Basic calculation example Notes Calculate the throw ratio using the formula. The basic calculation on this page does not take into consideration Your screen is 3.5 m wide and you wish to place the projector INFORMATION YOU NEED FOR THIS CALCULATION DMD™... -
Page 91: Full Lens Calculation
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Full lens calculation Notes Introducing TRC The choice of lens will affect the image size and will address discrepancies between the DMD™ resolution and the source. TRC can only be applied if greater When an image fills the height of the DMD™... -
Page 92: Calculating Trc
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Calculating TRC Notes To calculate TRC, use the following formula: 1.6 (DMD™ aspect ratio) TRC can only be applied if greater TRC = than 1. If TRC is 1 or less, disregard... -
Page 93: Calculating The Throw Ratio With Trc
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Calculating the throw ratio with TRC Notes For TRC > 1, amend the basic throw ratio formula as follows: Throw distance TRC can only be applied if greater Throw ratio = than 1. -
Page 94: Full Lens Calculation Example
Digital Projection CHOOSING A LENS Reference Guide M-Vision 930 Series Full lens calculation example Notes Your screen is 3.5 m wide; you wish to place the projector INFORMATION YOU NEED FOR THESE CALCULATIONS approximately 6.8 m from the screen. The source is 4:3. -
Page 95: Screen Requirements
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series Screen Requirements Notes Fitting the image to the DMD™ If the source image supplied to the projector is smaller than the DMD™ resolution, the image will not fill the DMD™. The following examples show how a number of common formats may be displayed. -
Page 96: Wuxga Images Displayed With A Height Of 1080 Pixels
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series WUXGA images displayed with a height of 1080 pixels Notes 4:3 = 1.33:1 = 1440 pixels 16:10 = 1.6:1 = 1728 pixels 1.66:1 (Vista) = 1792 pixels full width = 1920 pixels... -
Page 97: Wuxga Images Displayed Full Height
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series WUXGA images displayed full height Notes Only WUXGA or UXGA images can fill the full height of the DMD™, using all 1200 pixels without scaling. UXGA = 4:3 = 1.33:1 = 1600 pixels WUXGA = 16:10 = 1.6:1 = 1920 pixels... -
Page 98: Diagonal Screen Sizes
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D). When dealing W = width with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H). -
Page 99: Fitting The Image To The Screen
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use. -
Page 100: Positioning The Screen And Projector
Digital Projection SCREEN REQUIREMENTS Reference Guide M-Vision 930 Series Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should The projector should be installed be 1.2 m (4 feet) above the floor and the front row of the... -
Page 101: Positioning The Image
Digital Projection POSITIONING THE IMAGE Reference Guide M-Vision 930 Series Positioning The Image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. - Page 102 Digital Projection POSITIONING THE IMAGE Reference Guide M-Vision 930 Series Notes Any single adjustment outside the ranges specified on the following page may result in an unacceptable level of distortion, particularly at the corners of the image, due to the image passing through the periphery of the lens optics.
-
Page 103: Maximum Offset Range
Digital Projection POSITIONING THE IMAGE Reference Guide M-Vision 930 Series Maximum offset range Notes The maximum offset range available with no distortion or vignetting is dependent on which lens is used. Shifting the lens beyond its undistorted limits may be physically possible, however you may experience some vignetting or distortion. -
Page 104: Aspect Ratios Explained
Digital Projection ASPECT RATIOS EXPLAINED Reference Guide M-Vision 930 Series Aspect Ratios Explained Notes The appearance of a projected image on the screen depends on a combination of the following: • The DMD™ resolution is WUXGA with a 1920 x 1200 resolution, corresponding to an aspect ratio of 16:10 •... -
Page 105: Aspect Ratio Examples
Digital Projection ASPECT RATIOS EXPLAINED Reference Guide M-Vision 930 Series Aspect ratio examples Notes Source: 4:3 Aspect Ratio: Native / 4:3 Aspect Ratio: 16:10 Source: 16:9 Aspect Ratio: Native / 16:9 Aspect Ratio: 16:10 Source: 16:10 (native) Unused screen areas... - Page 106 Digital Projection ASPECT RATIOS EXPLAINED Reference Guide M-Vision 930 Series Aspect ratio example: TheaterScope Notes Notes TheaterScope setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios.
-
Page 107: Frame Rates And Pulldowns Explained
Digital Projection FRAME RATES AND PULLDOWNS EXPLAINED Reference Guide M-Vision 930 Series Frame Rates And Pulldowns Explained Notes Interlaced and progressive scan A progressive scan is a method of updating the image by drawing all the lines of each frame in a sequence. In contrast, interlaced video alternately scans odd and even lines. -
Page 108: Pulldowns - Conversion Into Destination Formats
Digital Projection FRAME RATES AND PULLDOWNS EXPLAINED Reference Guide M-Vision 930 Series Pulldowns - conversion into destination formats Notes Pulldowns are a method of converting a 24p source into a different destination format by adding extra frames to the source. -
Page 109: 2:3:3:2 (Advanced) Pulldown
Digital Projection FRAME RATES AND PULLDOWNS EXPLAINED Reference Guide M-Vision 930 Series 2:3:3:2 (advanced) pulldown Notes This method is very similar to the normal pulldown. Unlike the normal pulldown method, the resulting 30 fps video sequence contains only one frame containing fields from two different source frames. -
Page 110: Appendix A: Lens Part Numbers
Digital Projection APPENDIX A: LENS PART NUMBERS Reference Guide M-Vision 930 Series Appendix A: Lens Part Numbers Notes The throw ratios given here apply only when the image fills the width of the DMD. Throw ratios Part number Throw distance range For images that do not fill the width 0.84 - 1.03 : 1 zoom lens... -
Page 111: Appendix B: Lens Charts
Digital Projection APPENDIX B: LENS CHARTS Reference Guide M-Vision 930 Series Appendix B: Lens Charts Notes How to use the lens charts For information about individual The lens charts on the following pages provide a quick guide to the lens part numbers, see Appendix A type of lens needed for a particular projector. -
Page 112: Trc Values Applied In The Charts
Digital Projection APPENDIX B: LENS CHARTS Reference Guide M-Vision 930 Series TRC values applied in the charts Notes Full width images For information about individual Formats that fit the width of the DMD™ without applying a throw ratio correction (TRC) include:... -
Page 113: Full Dmd™ Width Images
Digital Projection APPENDIX B: LENS CHARTS Reference Guide M-Vision 930 Series Full DMD™ width images Notes Full width images are 2.35:1 (Scope), 1.85:1 (Flat) 1.78:1 (16:9), 1.66:1 (Vista) and 1.6:1 (native). This chart has a TRC of 1.0, for use 0.84 - 1.03 : 1 zoom lens... -
Page 114: 1.25:1 Images
Digital Projection APPENDIX B: LENS CHARTS Reference Guide M-Vision 930 Series 1.25:1 images Notes This chart has a TRC of 1.28, for 7 m (23 ft) 0.84 - 1.03 : 1 zoom lens use with the following images: 1.56 - 1.86 : 1 zoom lens 6 m (19.7 ft) -
Page 115: 1.33:1 Images
Digital Projection APPENDIX B: LENS CHARTS Reference Guide M-Vision 930 Series 1.33:1 images Notes This chart has a TRC of 1.2, for use 7 m (23 ft) 0.84 - 1.03 : 1 zoom lens with the following images: 1.56 - 1.86 : 1 zoom lens 6 m (19.7 ft) -
Page 116: Appendix C: Supported Signal Input Modes
Digital Projection APPENDIX C: SUPPORTED SIGNAL INPUT MODES Reference Guide M-Vision 930 Series Appendix C: Supported Signal Input Modes Notes 2D input modes SDTV 480i 720 x 480 59.94 15.73 ü 576i 720 x 576 50.00 15.63 ü EDTV 480p59 720 x 480 59.94... - Page 117 Digital Projection APPENDIX C: SUPPORTED SIGNAL INPUT MODES Reference Guide M-Vision 930 Series Notes COMPUTER SVGA60 800 x 600 60.32 37.88 ü ü ü (continued) SVGA75 800 x 600 75.00 46.88 ü ü ü SVGA85 800 x 600 85.06 53.67 ü...
-
Page 118: Input Modes
Digital Projection APPENDIX C: SUPPORTED SIGNAL INPUT MODES Reference Guide M-Vision 930 Series 3D input modes Notes Only the HDMI 1 & 2 and HDBaseT inputs support HDMI 1.4 3D formats. SXGA60 Dual Pipe 1280 x 1024 60.02 1066 63.98 ü... - Page 119 Digital Projection APPENDIX C: SUPPORTED SIGNAL INPUT MODES Reference Guide M-Vision 930 Series Notes Only the HDMI 1 & 2 and HDBaseT inputs support HDMI 1.4 3D formats. 1080p50 Dual Pipe 1920 x 1080 50.00 1125 56.25 ü 1080p60 Side-by-Side (Half) 1920 x 1080 60.00...
-
Page 120: Appendix D: Menu Map
Digital Projection APPENDIX D: MENU MAP Reference Guide M-Vision 930 Series Appendix D: Menu Map Notes Menu Sub Menus Some of the information in this menu MAIN map is summarised. See the actual menu on the projector for full details. -
Page 121: Advanced Image
Digital Projection APPENDIX D: MENU MAP Reference Guide M-Vision 930 Series Notes Menu Sub Menus Some of the information in this menu ADVANCED IMAGE map is summarised. See the actual ColorSpace Auto, YPbPr, YCbCr, RGB PC, RGB Video menu on the projector for full detail. -
Page 122: Alignment
Digital Projection APPENDIX D: MENU MAP Reference Guide M-Vision 930 Series Notes Menu Sub Menus Some of the information in this menu ALIGNMENT map is summarised. See the actual Lens Control menu on the projector for full detail. Zoom / Focus mode... - Page 123 Digital Projection APPENDIX D: MENU MAP Reference Guide M-Vision 930 Series Notes Menu Sub Menus Some of the information in this menu ALIGNMENT (continued) map is summarised. See the actual Edge Blend menu on the projector for full detail. Status Off, On...
-
Page 124: Control
Digital Projection APPENDIX D: MENU MAP Reference Guide M-Vision 930 Series Notes Menu Sub Menus Some of the information in this menu CONTROL map is summarised. See the actual OSD Settings menu on the projector for full detail. Menu Position Top-Left, Top-Right, Bottom-Left, Bottom-Right, Center... -
Page 125: Appendix E: Wiring Details
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series Appendix E: Wiring Details Notes Signal inputs and outputs 15 way D-type connector VGA: pin view of female connector unused Digital Ground (H Sync) R Ground B Ground G Ground... -
Page 126: Hdmi 1 And 2
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series HDMI 1 and 2 Notes 19 way type A connector TMDS Data 2+ TMDS Data 2 Shield HDMI: pin view of panel connector TMDS Data 2- TMDS Data 1+... -
Page 127: Dvi
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series Notes 24 way D-type connector Pin 1 TMDS data 2− Digital red− (link 1) High-bandwidth Digital Content Pin 2 TMDS data 2+ Digital red+ (link 1) Protection (HDCP) is supported on... -
Page 128: Component 2
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series Component 1 Notes 3 x RCA Phono connector Component 1: 3 x RCA Phono connector High-bandwidth Digital Content Component 2 Protection (HDCP) is supported on 3 x 75 ohm BNC connector this input. -
Page 129: Control Connections
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series Control connections Notes Only one remote connection (RS232 or LAN) should be used at any one RJ45 socket time. Update port RS232 9 way D-type connector 1 unused 2 Received Data (RX) -
Page 130: Trigger 1 & Trigger 2
Digital Projection APPENDIX E: WIRING DETAILS Reference Guide M-Vision 930 Series Trigger 1 & Trigger 2 Sleeve 3.5 mm mini jack Signal Sleeve Ground Trigger: pin view of female connector Wired remote control Sleeve 3.5 mm mini jack Power Ring... -
Page 131: Appendix F: Glossary Of Terms
Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Appendix F: Glossary Of Terms Notes 1080p HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 132 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Aspect ratio Notes The proportional relationship between the width and the height of the projected image. It is represented by two numbers separated by a colon, indicating the ratio of image width and height respectively: for example, 16:9 or 2.35:1.
- Page 133 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Chrominance Notes Component Video color difference Also known as ‘C’, this is the component, or pair of components, of a signal which describes information. Color difference Component Video...
- Page 134 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Crop Notes Remove part of the projected image. Alternatively, fit an image into a frame with a different aspect ratio by removing part of the image. The image is resized so that either its length or its width equals the length or width of the frame, while the other dimension has moved outside the frame;...
- Page 135 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Edge tear Notes interlaced video An artifact observed in where the screen appears to be split horizontally. Edge tears appear when the video feed is out of sync with the refresh rate of the display device.
- Page 136 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Gamma Notes A nonlinear operation used to code and decode luminance. It originates from the Cathode Ray Tube technology used in legacy television sets. Ghosting An artifact in 3D image viewing. Ghosting occurs when an image intended for one eye is partially seen by the other eye.
- Page 137 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Interlacing Notes A method of updating the image. The screen is divided in two fields, one containing every odd horizontal line, the other one containing the even lines. The fields are then alternately updated. In analog TV interlacing was commonly used as a way of doubling the refresh rate without consuming extra bandwidth.
- Page 138 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series OSD (on-screen display) Notes The projector menus allowing you to adjust various settings. Overlapping region blend region. PAL (Phase Alternate Line) The television system used in the UK, Australia and other countries - 625 lines transmitted at 50 interlaced fields per second.
- Page 139 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Progressive scanning Notes frame are drawn in a sequence, without interlacing. A method of updating the image in which the lines of each Pulldown The process of converting a 24 fps film footage to a video frame rate (25 fps for PAL/SECAM, 30 fps for NTSC) by adding extra frames.
- Page 140 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Synchronization Notes A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes.
- Page 141 Digital Projection APPENDIX F: GLOSSARY OF TERMS Reference Guide M-Vision 930 Series Vertical Scan Rate Notes frames synchronization The rate at which the of the incoming signal are refreshed. The rate is set by the vertical from the source and measured in Hertz.
-
Page 142: Technical Specifications
Digital Projection TECHNICAL SPECIFICATIONS Reference Guide M-Vision 930 Series Technical Specifications Notes Digital Projection reserves the right to change product specifications without prior notice. Models The specifications on these pages refer to the following projector: Series name Resolution Part number Lumens... -
Page 143: Inputs And Outputs
Digital Projection TECHNICAL SPECIFICATIONS Reference Guide M-Vision 930 Series Inputs and outputs Notes Type Connector Type Connector Video & Computer (all models) Communication & Control HDMI 1.4 HDMI 3D Sync Out DVI-D 3D Sync In HDBaseT RJ45 RJ45 15-pin D-Sub... -
Page 144: Lenses
Digital Projection TECHNICAL SPECIFICATIONS Reference Guide M-Vision 930 Series Lenses Notes Detailed information about available lenses can be found in Appendix A: Lens Part Numbers. Further information about lens offsets can be found in Positioning The Image > Maximum offset range. -
Page 145: Electrical And Physical Specifications
Digital Projection TECHNICAL SPECIFICATIONS Reference Guide M-Vision 930 Series Electrical and physical specifications Notes • Power requirements 100-240 VAC, 50-60 Hz (single phase) • Power Consumption 1200 W • Thermal Dissipation 3771 BTU/hr • Fan Noise 48 dBA • Operating Temperature 0°C to 35°C (32 to 95F) •...
Need help?
Do you have a question about the M-Vision 930 Series and is the answer not in the manual?
Questions and answers
