Digital Projection TITAN SX+ Quad 3D Specifications

P E R F O R M A N C E S P E C I F I C A T I O N S
Brightness (±10%)
SX+, 1080p & WUXGA: 16,000 ANSI Lumens
Contrast Ratio (±10%)
2000:1 Full White/Black
Display Type
3 x .95" DMD
DMD Specification
SX+: 1400 x 1050 pixels native, +/- 12 deg tilt angle
1080p: 1920 x 1080 pixels native, +/-12 deg tilt angle
WUXGA: 1920 x 1080 pixels native, +/-12 deg tilt angle
Fast transit Pixels for smooth greyscale and improved contrast.
Fill Factor
87%
Sealed Optics at DMD™ Interface
Protects DMD's™ from optical contamination
Source Compatibility
Advanced Front End Processor:
• 3GSDI including 1080p 60fps, 24p (4:4:4 and 4:2:2) and 1080i.
• HDMI including Deep Color processing.
• Graphics standards up to 1920 x 1200 resolution at 60fps via DVI
or VGA.
• Component video (SD and HD) via YPr Pb, RGB, or RGBS.
• S-Video (PAL, NTSC & SECAM)
• Composite Video (PAL, NTSC & SECAM).
High bandwidth, pixel mapped path:
• Dual DVI accepts graphics standards up to 1920 x1200@120fps.
• HDMI 1.4 including 3D Standards
• Dual Pipe (2 x DVI or HDMI)
High Bandwidth Input
• 3D capable
• Pixel Mapped - with low latency
• FastFrame™ Motion Blur Reduction
• 120 Hz with no frame doubling
3D Sync
Sync In - External lock
Sync Out - Shutter glass control
Network Connection
IR handset with wired option via 3.5mm jack (with loop through).
LAN Via RJ45 with full feature set via protocol.
Duplication of OSD served from projector controller via RJ45.
RS232 Via 9 Pin connector.
Lamp Type
Four x 400W High Intensity Discharge
Lamp Life (typical)
1
Full Power: 1500 hrs (up to 3000 hrs in lamp sequential mode)
Eco Mode : 2000 hrs (up to 4000 hrs in lamp sequential mode)
Intelligent Lens Mount
Motorised and programmable Focus, Zoom, and Vertical
and Horizontal offsets with ten positional memory banks.
Lens Shift (maximum)
Fixed 1.2:1 and Zoom Lenses:
• Vert: +0.5, -0.4 frame; Hor: ±0.2 frame
0.73 Fixed lens:
• Vert: ±0.11 frame; Hor: ±0.07 frame
Lens Options
0.73 :1 fixed 2.02-2.77 :1 zoom
1.2 :1 fixed 2.77-4.51 :1 zoom
1.26-1.61 :1 zoom 4.51-7.53 :1 zoom
1.5-2.02 :1 zoom 7.5-11.2 :1 zoom
• 1.2:1 Lenses include manual aperture
• H igh-contrast lenses available for 0.73:1
and all zoom lenses
Specifications subject to change without notice DP V1.0 06/2011 ©2011 Digital Projection, Inc.
™DLP, Digital Light Processing and DMD are trademarks of Texas Instruments, Inc.
T I T A N S X + Q u a d 3 D
Mechanical Mounting
• F ront or rear table; Front or rear ceiling
(ceiling mount optional)
• R ugged, staging tolerant chassis with
integrated handles
• Optional RapidRig™ frame with integrated
pitch, roll and yaw adjustments
Weight (chassis only)
39 kg, 86 lbs
Video Processing: Advanced Front End processor:
• Advanced geometry correction:
o Accurate warp map generation by adjustment of
an interpolated grid array of up to 16 x 16 nodes. Up
to eight maps can be generated, downloaded and
stored on the projector for selection via the OSD or
control application.
o On board implementation of Pincushion & Barrel,
Cornerstone, Vertical & Horizontal Keystone, and
Image Rotation.
• High Quality Edge Blending & Multi Projector Tiling
o High bit depth processing in blend region to
ensure smooth image.
o Adjustable S-Curve Parameter and degamma
functions.
o Black Level Uplift to ensure uniformity across
blend in dark images.
o Correction of black level uplift to compensate for
non-active pixels at the edge of the DMD.
o The user can choose to assign the projector a
position within an image matrix. The video processing
can automatically extract the appropriate segment of
the input image and enable blending for the appropri-
ate edges.
• Single Stage Scaling
o Resizing and Warp functions are carried out in
a single stage process maximizing the clarity of the
resulting image. When operating Blend in conjunction
with Warp the processing will automatically superim-
pose the warped-blend map, onto the geometrically
corrected image.
o The user can switch between different sources
and input aspect ratios, yet retain the accuracy of the
geometrically corrected output.
• PIP/POP/PAP
o User's choice between inputs for the main and
sub images (Picture in Picture or PIP). The processing
additionally offers the option to display two sources,
side-by side, scaled to the vertical size of the panel
Picture and Picture or PAP), or alternatively maintain-
ing their original aspect ratios (Picture Opposite Picture
or POP).
• ColorMax
o Each projector is accurately calibrated at the
factory with its native primary colors and white point
being stored in the on-board memory. User's choice
to employ the external control application to download
his own measured color space, as specific to the oper-
ating environment, and also his preferred Target color
space for primary and secondary colors. Not only is
this the most flexible color management technology
available, but it also enables accurate matching of pro-
jectors in tiled or blended applications.
• Dual Flash Processing can be used to multiply the
displayed frame rate for 3D sources.
• FastFrame motion blur reduction.
• Dual Pipe processing allows the delivery of two
sources in parallel, typically one for the Left Eye and
the other for the Right.
• De-interlacing, Video enhancement and Frame
Delay
The projector automatically detects interlaced video
and implements 3:2 or 2:2 extraction as appropriate,
with pixel based, motion adaptive interpolation and
auto cadence correction.

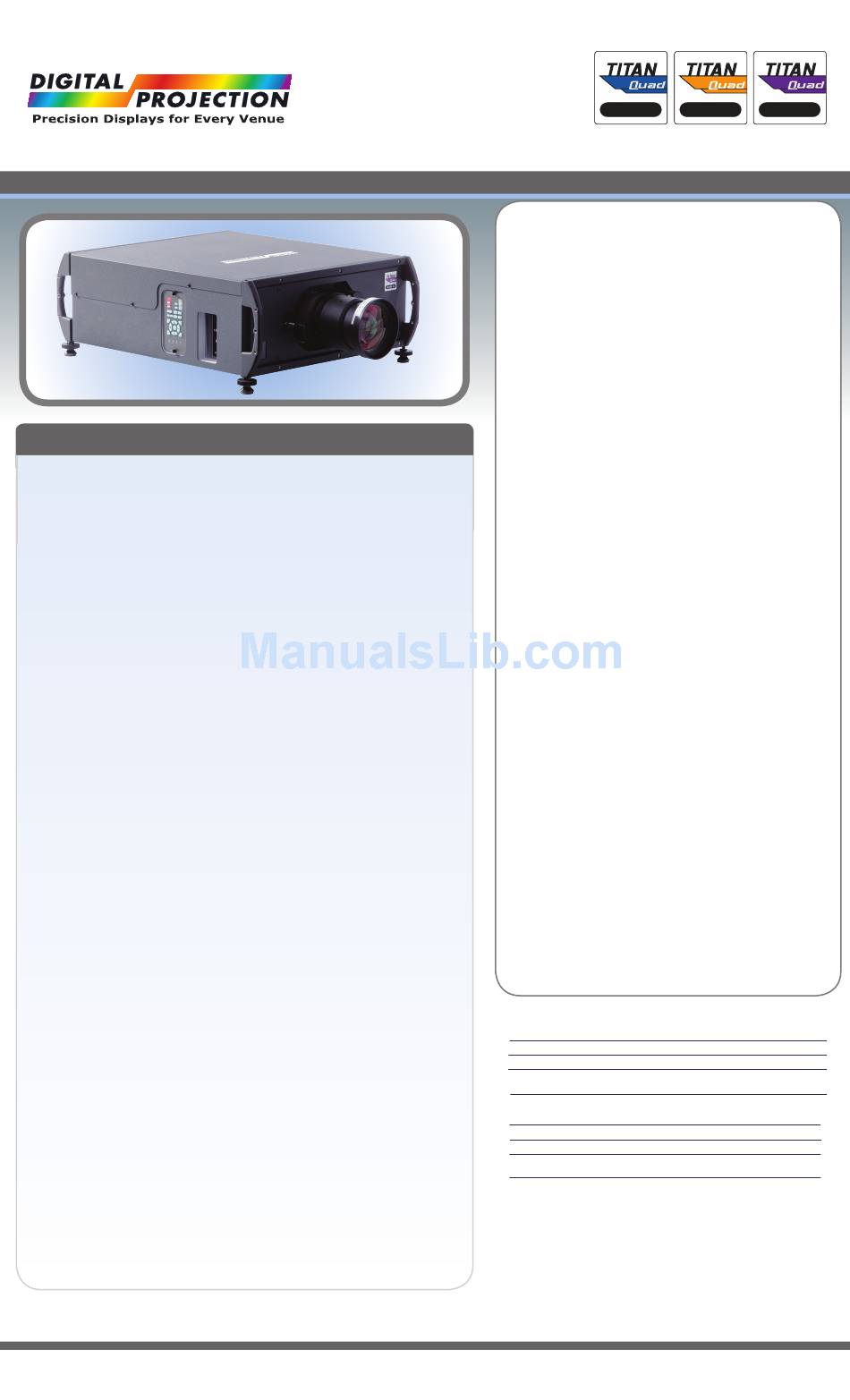

PRELIMINARY
sx+ 3D
TITAN Quad Series
• T I T A N 1 0 8 0 p Q u a d 3 D
O v e r v i e w
DPI presents a revolution in advanced 3-chip DLP displays with the
new TITAN Quad product line. Incredibly compact and efficient for
its lumen performance, the TITAN Quad series incorporates DP's
active 3D connectivity, advanced image Warp and Blend, Intelligent
Lens Mount, ColorMax calibration technology, and a host of vital
professional features to suit almost any commercial installation or
staging application imaginable.
As efficient as they are capable, the introduction of the 16,000
lumen TITAN Quad lineup marks the world's first projectors of this
brightness, in a chassis with such a small form factor. The new
TITAN Quad projectors are available in SX+, 1080p and WUXGA
native resolution, and include powerful DP innovations such as
FastFrame, Dual-Flash Processing and CoolTek Engineering. The
TITAN Quad represents the new flagship of DPI's TITAN product
line, which now encompasses over 30, 3D capable precision dis-
plays.
Utilizing DPI's new, advanced electronics, all TITAN Quad mod-
els provide the user with advanced Warp and Blend capabilities,
including the ability to make extensive geometric warp correction
for screens with complex geometry. Superbly capable edge blend-
ing and multi-projector tiling is provided by way of high bit depth
processing that ensures a seamless, contiguous image can be cre-
ated from multiple projectors. Additionally, end users can choose
to utilize the TITAN Quad's onboard tiling function by assigning
each projector a position within an image matrix. The video pro-
cessing then automatically extracts the appropriate segment of the
input image and enables blending for the appropriate edges.
Also included are DPI's exclusive 3D advances that further extend
the remarkable flexibility engineered within each TITAN Quad
display. Applications with 120 Hz native sources utilize the High
Bandwidth input, eliminating the need for frame doubling. For 60
Hz 3D applications, DPI's built-in Dual Flash Processing™ enables
distribution of 3D content via 60 Hz formats by frame-doubling the
signal within the projector, producing the low flicker image charac-
teristics of a native 120 Hz source without the infrastructure costs
associated with distributing and switching ultra-high bandwidth
signals.
As is the case with all Digital Projection displays, our careful engi-
neering guarantees TITAN projectors provide remarkable resolu-
tion, color saturation and light output for years to come. Equally
important, DPI's legacy in providing superior customer and techni-
cal services assures our experienced support staff is always avail-
able to address your needs.
The TITAN Quad... now, Four is More.
I N P U T C A P A B I L I T I E S
Type
Composite
S-Video
Component
Interlaced/Std def Y, Cr/Pr, Cb/Pb, S
Graphics
Progressive RGB/Progressive Interlaced Hi def
Y, Cr/Pr, Cb/PB
RGBHV (Progressive)
Digital RGB
Serial Digital
SD/HD-SDI (SMPTE 259M/292M)
DVI - High bandwidth
Dual - main
Dual - sub
*The main & sub dual DVI inputs can be used in
parallel to support dual-pipe 3D connectivity
1080p-3D WUXGA-3D
• T I T A N W U X G A Q u a d 3 D
Connector
Quantity
BNC 1
4-pin mini DIN
1
1
BNCx4
1
BNCx5
D sub (15-pin)
1
DVI 1
BNC 1
DVI 1
DVI
1
