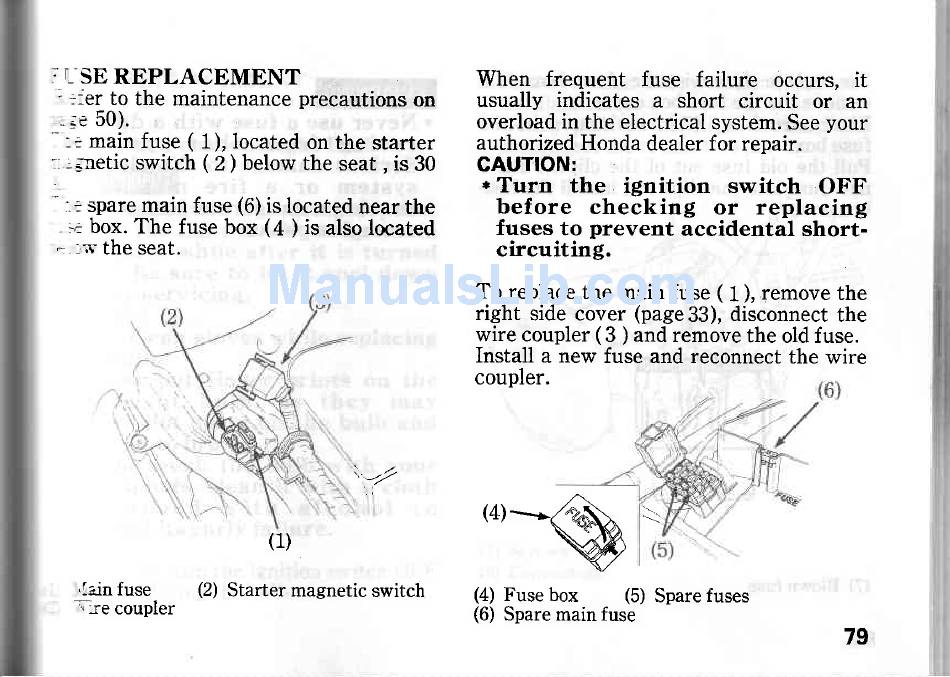

; T- SE REPLACEMENT
: .-er to the maintenance precautions on
- ; e 5 0 ) .
-
:= main fuse ( 1), located on the starter
: ..retic switch ( 2 ) below the seat , is 30
r: spare main fuse (6) is located near the
;. box. The fuse box (4 ) is also located
- ..i- the seat.
(1)
,lajn fuse
(2) Starter magrretic switch
" re coupler
When frequent fuse failure occurs, it
usually indicates a short circuit or an
overload in the electrical system. See your
authorized Honda dealer for repair.
GAUTION:
* Turn
the ignition switch
OFF
b e f o r e c h e c k i n g
o r r e p l a c i n g
fuses to prevent accidental short-
circuiting.
To replace the main fuse ( 1), remove the
right side cover (page33), disconnect the
wire coupler ( 3 ) and remove the old fuse.
Install a new fuse and reconnect the wire
coupler.
" r.t/
' :
*,-@
(4) Fuse box
(5) Spare fuses
(6) Spare main fuse
79
