Dynabrade 67600 Operating Instructions Manual

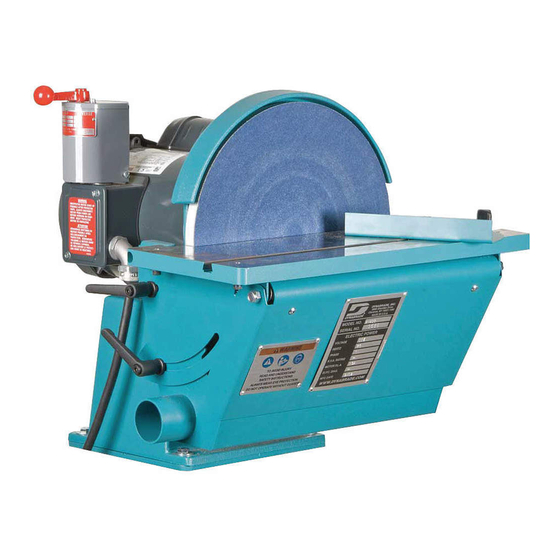

12" Disc Grinder
Model Motor
FLA
Number hp
67600 1 13.4
67601 1 6.7
67602 1.5 20
67603 1.5 10
67604 1.5 6.9
67605 1.5 3.6
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
Voltage Phase Frequency
115 1 60
230 1 60
115 1 50/60
230 1 50/60
230 3 50/60
460 3 50/60
SAFETY LEGEND
SFPM Sound Weight
(SM/Min) Level Pound
1725 70 dB(A) 90
1725 90
70 dB(A)
500-1725 70 dB(A) 90
500-1725 70 dB(A) 90
500-1725 70 dB(A) 90
500-1725 70 dB(A) 90
Practice safety requirements. Work alert.
have proper attire and do not operate tools under
the influence of alcohol or drugs
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
Local statues, ordinances and/or regulations
Electric shock hazard. Avoid bodily contact with
grounded objects, bodies of water.
Do not damage cord set.
Parts Page Reorder No. PD 12.29
Effective October 2012
Height Width Length
Inch Inch Inch
17 21 18
17 21 18
25 21 18
25 21 18
25 21 18
25 21 18
